Memory / EEPROMs / 24LC64F-I/P
Datasheets
24LC64F-I/P by: Microchip Technology Inc

8K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8

Part Details for 24LC64F-I/P by Microchip Technology Inc

Results Overview of 24LC64F-I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

24LC64F-I/P Information

24LC64F-I/P by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24LC64F-I/P

Part # Distributor Description Stock Price Buy
DISTI # 08P0124
Newark Serial Eeprom, 64Kbit, 400Khz, Dip-8, Memory Configuration:8K X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Dip, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Ic Mounting:Through Hole Rohs Compliant: Yes |Microchip 24LC64F-I/P RoHS: Compliant Min Qty: 660 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 25 $0.5800
$0.5800 Buy Now
DISTI # 24LC64F-I/P-ND
DigiKey IC EEPROM 64KBIT I2C 400KHZ 8DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube 560
In Stock
  • 1 $0.6300
  • 25 $0.6180
  • 100 $0.5974
$0.5974 / $0.6300 Buy Now
DISTI # 24LC64F-I/P
Avnet Americas - Rail/Tube (Alt: 24LC64F-I/P) RoHS: Compliant Min Qty: 660 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 660 $0.5226
  • 780 $0.5031
  • 1,440 $0.4836
  • 3,300 $0.4641
  • 6,600 $0.4446
$0.4446 / $0.5226 Buy Now
DISTI # 579-24LC64F-I/P
Mouser Electronics EEPROM 64K 8K X 8 2.5V SER EE IND 1/4AWP RoHS: Compliant 10148
  • 1 $0.6100
  • 25 $0.5600
  • 120 $0.5530
  • 300 $0.5520
  • 540 $0.5390
  • 1,020 $0.5060
  • 10,020 $0.4870
$0.4870 / $0.6100 Buy Now
DISTI # VBF:5286_06423350
Arrow Electronics EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 6 Weeks Americas - 20
  • 60 $0.4886
$0.4886 Buy Now
DISTI # 24LC64F-I/P
Microchip Technology Inc 64K 2-Wire Serial EEPROM, PDIP, Projected EOL: 2034-05-22 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 12240

Alternates Available
  • 1 $0.6100
  • 25 $0.6000
  • 100 $0.5800
  • 1,000 $0.5500
  • 5,000 $0.5000
$0.5000 / $0.6100 Buy Now
DISTI # 70452382
RS 64K, 8K X 8, 2.5V SER EE, IND, 1/4 ARRAY WRITE PROTECT8 PDIP .300in TUBE Min Qty: 660 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 660 $0.9900
  • 6,600 $0.9400
  • 33,000 $0.9000
  • 66,000 $0.8500
$0.8500 / $0.9900 RFQ
Onlinecomponents.com EEPROM - Serial-I²C - 64Kb (8K x 8) - Quarter Array Write Protect - 2.5V/3.3V/5V - 8-Pin PDIP - Tube RoHS: Compliant 12240 Factory Stock
  • 60 $0.5820
  • 300 $0.5340
  • 1,020 $0.5260
  • 2,520 $0.5000
  • 5,040 $0.4925
  • 7,500 $0.4815
  • 10,020 $0.4743
  • 15,000 $0.4671
$0.4671 / $0.5820 Buy Now
DISTI # 87330273
Verical EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 55 Package Multiple: 1 Americas - 739
  • 55 $1.4839
  • 120 $1.4062
$1.4062 / $1.4839 Buy Now
DISTI # 24LC64F-I/P
TME IC: EEPROM memory, 64kbEEPROM, I2C, 8kx8bit, 2.5÷5.5V, 400kHz, DIP8 Min Qty: 3 934
  • 3 $1.1500
  • 10 $1.0900
  • 25 $1.0400
  • 120 $0.9500
$0.9500 / $1.1500 Buy Now
NAC 64K, 8K X 8, 2.5V SER EE, IND, 1/4 ARRAY WRITE PROTECT - Package: 8 PDIP .300in TUBE RoHS: Compliant Min Qty: 660 Package Multiple: 60 Container: Tube 0
  • 1 $0.6000
  • 100 $0.5400
  • 500 $0.5000
  • 1,000 $0.4900
$0.4900 / $0.6000 Buy Now
DISTI # 24LC64F-I/P
Avnet Silica (Alt: 24LC64F-I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 24LC64F-I/P
EBV Elektronik (Alt: 24LC64F-I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Serial-I²C - 64Kb (8K x 8) - Quarter Array Write Protect - 2.5V/3.3V/5V - 8-Pin PDIP - Tube RoHS: Compliant 12240 Factory Stock
  • 60 $0.5820
  • 300 $0.5340
  • 1,020 $0.5260
  • 2,520 $0.5000
  • 5,040 $0.4925
  • 7,500 $0.4815
  • 10,020 $0.4743
  • 15,000 $0.4671
$0.4671 / $0.5820 Buy Now
Vyrian Memory ICs 4579
RFQ

Part Details for 24LC64F-I/P

24LC64F-I/P CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

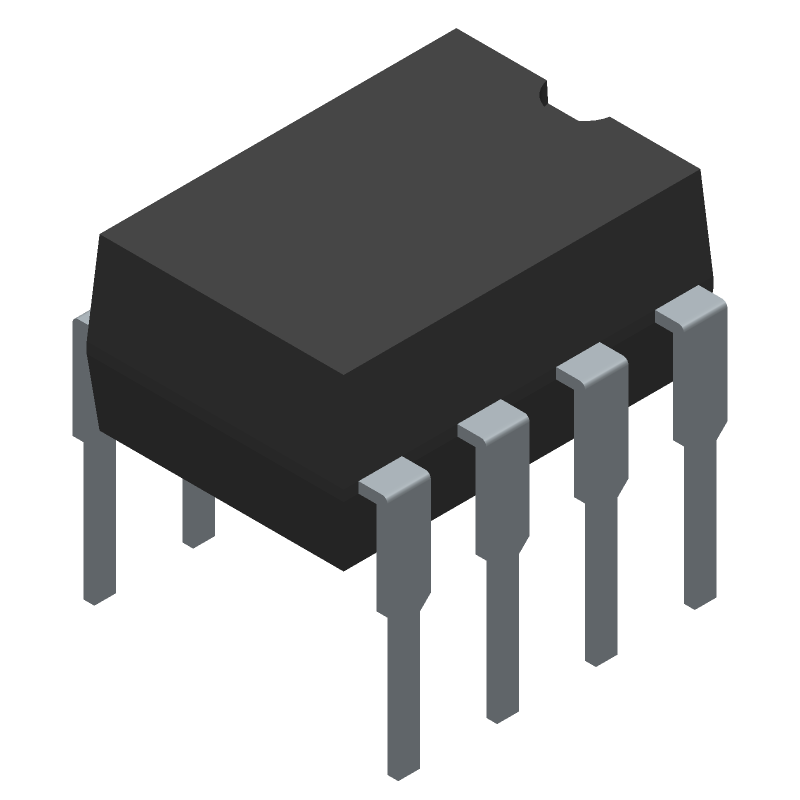

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

24LC64F-I/P Part Data Attributes

Parametric Data
24LC64F-I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24LC64F-I/P Microchip Technology Inc 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description DIP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.271 mm
Memory Density 65536 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 8192 words
Number of Words Code 8000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 8KX8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial SERIAL
Programming Voltage 5 V
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 5.334 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.003 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for 24LC64F-I/P

This table gives cross-reference parts and alternative options found for 24LC64F-I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24LC64F-I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
24LC64F-E/P Microchip Technology Inc $0.8235 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 24LC64F-I/P vs 24LC64F-E/P
Part Number Manufacturer Composite Price Description Compare
24LC64FT-I/MS Microchip Technology Inc $0.6720 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, PLASTIC, MSOP-8 24LC64F-I/P vs 24LC64FT-I/MS
24LC64T-I/SNG Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 24LC64F-I/P vs 24LC64T-I/SNG
24LC64-I/SMRVA Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8 24LC64F-I/P vs 24LC64-I/SMRVA
24LC64X-I/STA35 Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 24LC64F-I/P vs 24LC64X-I/STA35
24LC64T/SM Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.207 INCH, EIAJ, PLASTIC, SOIC-8 24LC64F-I/P vs 24LC64T/SM
24LC64T-I/MCG Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, MO-229, DFN-8 24LC64F-I/P vs 24LC64T-I/MCG
24LC64-E/SMRVA Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8 24LC64F-I/P vs 24LC64-E/SMRVA
24LC64-E/MC Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 24LC64F-I/P vs 24LC64-E/MC
24LC64-ET/SM Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOIC-8 24LC64F-I/P vs 24LC64-ET/SM
24LC64T-I/SNRVA Microchip Technology Inc Check for Price 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 24LC64F-I/P vs 24LC64T-I/SNRVA

24LC64F-I/P Frequently Asked Questions (FAQ)

  • The 24LC64F-I/P has a minimum of 1 million write cycles, but this can vary depending on the application and usage.

  • The 24LC64F-I/P uses a page write buffer to handle page writes. The device can write up to 32 bytes of data in a single page write operation. For block writes, the device can write up to 64 bytes of data in a single block write operation.

  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored.

  • The 24LC64F-I/P requires a specific power-up and power-down sequencing to ensure proper operation. The device should be powered up with VCC before the SCL clock, and powered down with VCC before the SCL clock.

  • The maximum clock frequency for the 24LC64F-I/P is 400 kHz.
