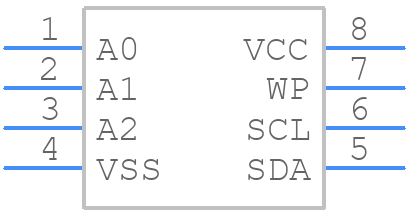

Part Symbol
-

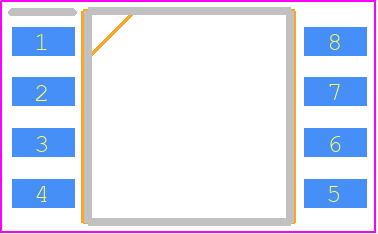

Footprint
-

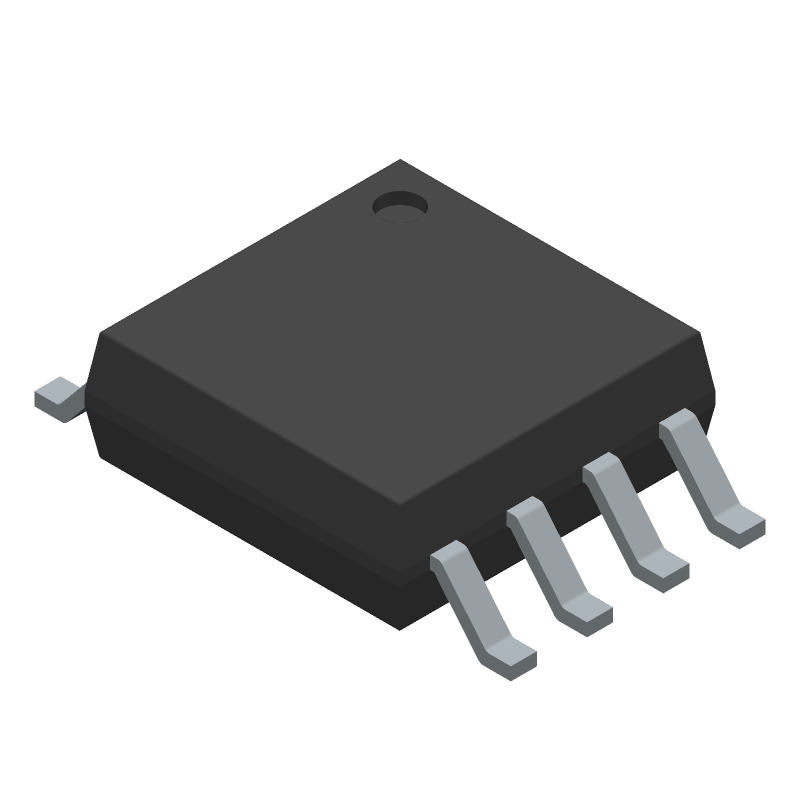

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 24LC64-I/SM by Microchip Technology Inc
Results Overview of 24LC64-I/SM by Microchip Technology Inc
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
24LC64-I/SM Information
24LC64-I/SM by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 24LC64-I/SM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K8330
|
Newark | Serial Eeprom, 64Kbit, 400Khz, Soij-8, Memory Size:64Kbit, Eeprom Memory Configuration:8K X 8Bit, Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:400Khz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Rohs Compliant: Yes |Microchip 24LC64-I/SM RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 358 |
|
$0.4900 | Buy Now |
|
DISTI #
24LC64-I/SM-ND
|
DigiKey | IC EEPROM 64KBIT I2C 8SOIJ Min Qty: 1 Lead time: 4 Weeks Container: Tube |
28 In Stock |
|
$0.5047 / $0.5600 | Buy Now |
|
DISTI #
24LC64-I/SM
|
Avnet Americas | EEPROM Serial-I2C 64K-Bit 8K x 8 3.3V/5V 8-Pin SOIJ Tube - Rail/Tube (Alt: 24LC64-I/SM) RoHS: Compliant Min Qty: 1710 Package Multiple: 90 Lead time: 4 Weeks, 0 Days Container: Tube | 0 |
|
$0.1699 / $0.1997 | Buy Now |
|
DISTI #
579-24LC64-I/SM
|
Mouser Electronics | EEPROM 8kx8 - 2.5V RoHS: Compliant | 3032 |
|
$0.4800 / $0.4900 | Buy Now |
|
DISTI #
V99:2348_06423375
|
Arrow Electronics | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIJ Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks | Americas - 340 |
|
$0.4791 / $0.4889 | Buy Now |
|
DISTI #
24LC64-I/SM
|
Microchip Technology Inc | 64K, 8K X 8, 2.5V SER EE, IND, SOIJ, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube |
14850 Alternates Available |
|
$0.4500 / $0.5400 | Buy Now |
|
DISTI #
70045254
|
RS | 64K, 8K X 8, 2.5V SER EE, IND Min Qty: 720 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4720 / $0.5550 | RFQ |
|
|
Future Electronics | 24LC64 Series 64 Kb I2C 2 Wire (8K X 8) 2.5 V Serial EEPROM SMT - SOIJ-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Container: Tube | 89Tube |
|
$0.1860 / $0.2100 | Buy Now |
|
|
Onlinecomponents.com | EEPROM - Serial-I²C - 64Kb (8K x 8) - 2.5V/3.3V/5V - 8-Pin SOIJ - Tube RoHS: Compliant |
1440 In Stock 17010 Factory Stock |
|
$0.4348 / $0.5340 | Buy Now |
|
DISTI #
69860977
|
Verical | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIJ Tube RoHS: Compliant Min Qty: 180 Package Multiple: 90 Date Code: 2332 | Americas - 1440 |
|
$0.5941 / $0.6942 | Buy Now |
Part Details for 24LC64-I/SM
24LC64-I/SM CAD Models
24LC64-I/SM Part Data Attributes
|
|
24LC64-I/SM
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
24LC64-I/SM
Microchip Technology Inc
8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | DATA RETENTION > 200 YEARS; 1000000 ERASE/WRITE CYCLES GUARANTEED | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 5.245 mm | |
| Memory Density | 65536 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 8192 words | |
| Number of Words Code | 8000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 8KX8 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 4.5 V | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.03 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.003 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 5.25 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
24LC64-I/SM Frequently Asked Questions (FAQ)
-
The 24LC64-I/SM has a minimum of 1 million write cycles, but this can vary depending on the operating conditions and usage patterns.
-
The 24LC64-I/SM uses a page write buffer to handle writes. The device is organized into 128-byte pages, and writes can be performed in 1-byte increments. For block writes, the device can be written in 128-byte blocks.
-
The WP (Write Protect) pin is used to prevent writes to the entire device or a specific block of memory. When the WP pin is tied to VCC, the entire device is write-protected. When the WP pin is tied to a specific block's WP pin, only that block is write-protected.
-
The 24LC64-I/SM requires a specific power-up and power-down sequencing to ensure proper operation. The device should be powered up with VCC rising to a minimum of 2.5V before the SCL clock signal is applied. During power-down, the SCL clock signal should be stopped before VCC falls below 2.5V.
-
The recommended clock frequency for the 24LC64-I/SM is up to 400 kHz. However, the device can operate at frequencies up to 1 MHz, but this may require additional power consumption and may affect device reliability.
