Memory / EEPROMs / 24LC512T-E/SM
Datasheets
24LC512T-E/SM by: Microchip Technology Inc

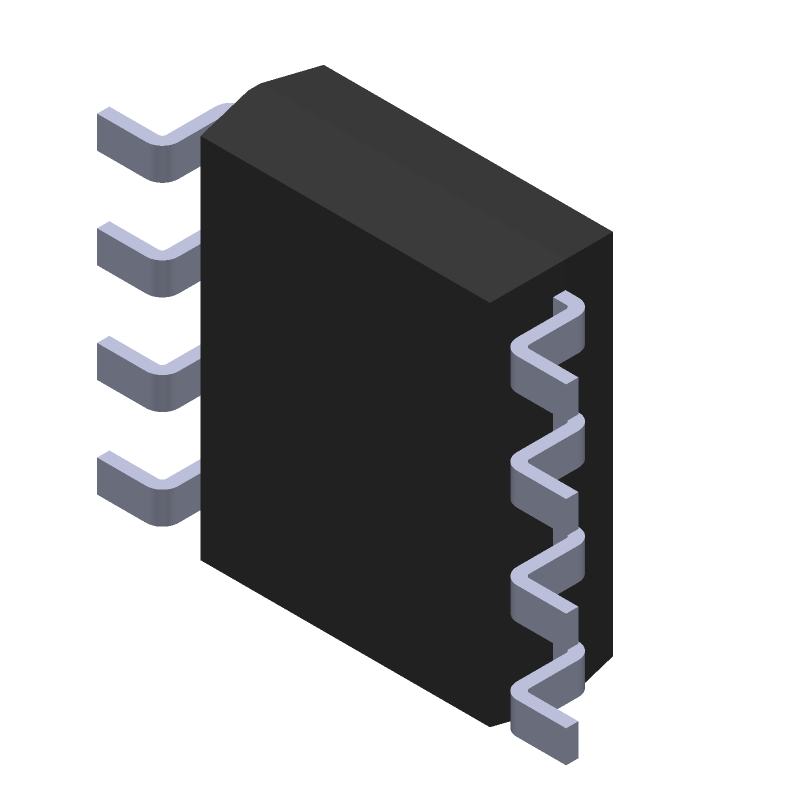

64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8

Part Details for 24LC512T-E/SM by Microchip Technology Inc

Results Overview of 24LC512T-E/SM by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

24LC512T-E/SM Information

24LC512T-E/SM by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24LC512T-E/SM

Part # Distributor Description Stock Price Buy
DISTI # 92C7209
Newark Eeprom, 512Kbit, -40 To 125Deg C, Memory Configuration:64K X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Soij, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Microchip 24LC512T-E/SM RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $1.7300
$1.7300 Buy Now
DISTI # 24LC512T-E/SMCT-ND
DigiKey IC EEPROM 512KBIT I2C 8SOIJ Min Qty: 1 Lead time: 32 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3322
In Stock
  • 1 $2.1000
  • 2,100 $1.7639
$1.7639 / $2.1000 Buy Now
DISTI # 24LC512T-E/SM
Avnet Americas EEPROM Serial-I2C 512K-bit 64K x 8 3.3V/5V 8-Pin SOIJ T/R - Tape and Reel (Alt: 24LC512T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 32 Weeks, 0 Days Container: Reel 0
  • 2,100 $1.7125
  • 4,200 $1.6987
  • 8,400 $1.6849
  • 12,600 $1.6713
  • 16,800 $1.6542
$1.6542 / $1.7125 Buy Now
DISTI # 579-24LC512T-E/SM
Mouser Electronics EEPROM 64kx8 - 2.5V RoHS: Compliant 16760
  • 1 $1.8200
  • 25 $1.7800
  • 100 $1.7700
  • 2,100 $1.7700
  • 4,200 $1.7100
$1.7100 / $1.8200 Buy Now
DISTI # 24LC512T-E/SM
Microchip Technology Inc 512K, 64K X 8 2.5V SERIAL EE, EXT, SOIJ, Projected EOL: 2034-10-30 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 32 Weeks, 0 Days Container: Reel 130

Alternates Available
  • 1 $1.8200
  • 25 $1.7500
  • 100 $1.6800
  • 1,000 $1.6000
  • 5,000 $1.5000
$1.5000 / $1.8200 Buy Now
DISTI # 70571247
RS 512K, 64K X 8, 2.5V SER EE, EXT Min Qty: 2100 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 2,100 $3.4900
  • 10,500 $3.3200
  • 21,000 $3.1400
  • 42,000 $2.9700
$2.9700 / $3.4900 RFQ
Onlinecomponents.com EEPROM - Serial-I²C - 512Kb (64K x 8) - 2.5V/3.3V/5V - 8-Pin SOIJ - Tape&Reel RoHS: Compliant 2100 In Stock
  • 10 $4.8700
  • 100 $4.8000
  • 250 $4.7300
  • 525 $4.6600
  • 1,050 $2.4700
  • 1,575 $1.7400
  • 2,100 $1.7000
$1.7000 / $4.8700 Buy Now
DISTI # 66366792
Verical EEPROM Serial-I2C 512K-bit 64K x 8 3.3V/5V 8-Pin SOIJ T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2305 Americas - 2100
  • 20 $6.3329
  • 100 $6.0226
  • 250 $5.8323
  • 530 $5.5542
  • 1,050 $2.8957
$2.8957 / $6.3329 Buy Now
DISTI # 24LC512T-E/SM
IBS Electronics 24LC512 SERIES 512 KB I2C 2 WIRE (64K X 8) 2.5 V SERIAL EEPROM SMT - SOIJ-8 Min Qty: 10 Package Multiple: 1 2100
  • 10 $6.3310
  • 100 $6.2400
  • 250 $6.1490
  • 525 $6.0580
  • 1,050 $3.2110
  • 1,575 $2.2620
  • 2,100 $2.2100
$2.2100 / $6.3310 Buy Now
NAC 512K, 64K X 8, 2.5V SER EE, EXT - Package: 8 SOIJ .208in T/R RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 0
  • 1 $2.1100
  • 100 $1.9000
  • 500 $1.7600
  • 1,000 $1.7100
$1.7100 / $2.1100 Buy Now
DISTI # 24LC512T-E/SM
Avnet Silica EEPROM SerialI2C 512Kbit 64K x 8 33V5V 8Pin SOIJ TR (Alt: 24LC512T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 34 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 24LC512T-E/SM
EBV Elektronik EEPROM SerialI2C 512Kbit 64K x 8 33V5V 8Pin SOIJ TR (Alt: 24LC512T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 33 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Serial-I²C - 512Kb (64K x 8) - 2.5V/3.3V/5V - 8-Pin SOIJ - Tape&Reel RoHS: Compliant 2100 In Stock
  • 10 $4.8700
  • 100 $4.8000
  • 250 $4.7300
  • 525 $4.6600
  • 1,050 $2.4700
  • 1,575 $1.7400
  • 2,100 $1.7000
$1.7000 / $4.8700 Buy Now

Part Details for 24LC512T-E/SM

24LC512T-E/SM Part Data Attributes

Parametric Data
24LC512T-E/SM Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24LC512T-E/SM Microchip Technology Inc 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 32 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 5.245 mm
Memory Density 524288 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 65536 words
Number of Words Code 64000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Organization 64KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.03 mm
Serial Bus Type I2C
Standby Current-Max 0.000005 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.23 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for 24LC512T-E/SM

This table gives cross-reference parts and alternative options found for 24LC512T-E/SM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24LC512T-E/SM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
24LC512T-I/SM Microchip Technology Inc $1.5624 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 24LC512T-E/SM vs 24LC512T-I/SM
24LC512-E/SM Microchip Technology Inc $1.6173 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 24LC512T-E/SM vs 24LC512-E/SM
24LC512-I/SM Microchip Technology Inc $1.7781 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 24LC512T-E/SM vs 24LC512-I/SM
Part Number Manufacturer Composite Price Description Compare
CAT24C512HU5IGT3 onsemi $0.2989 EEPROM Serial 512-Kb I2C, UDFN8, 2x3, 0.5P, Extended Pad, 3000-REEL 24LC512T-E/SM vs CAT24C512HU5IGT3
CAT24C512WI-GT3 onsemi $0.5209 EEPROM Serial 512-Kb I2C, SOIC 8, 150 mils, 3000-REEL 24LC512T-E/SM vs CAT24C512WI-GT3
24LC512-E/MF Microchip Technology Inc $1.7458 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 6 X 5 MM, PLASTIC, ROHS COMPLIANT, DFN-8 24LC512T-E/SM vs 24LC512-E/MF
24LC512-E/SN Microchip Technology Inc $1.7889 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 24LC512T-E/SM vs 24LC512-E/SN
24LC512-I/P Microchip Technology Inc $1.8180 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 24LC512T-E/SM vs 24LC512-I/P
24LC512-I/PG Microchip Technology Inc $2.1400 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 24LC512T-E/SM vs 24LC512-I/PG
24LC512-I/ST14 Microchip Technology Inc $2.2600 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO14, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-14 24LC512T-E/SM vs 24LC512-I/ST14
24LC512T-I/MF Microchip Technology Inc $2.3200 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 6 X 5 MM, PLASTIC, ROHS COMPLIANT, DFN-8 24LC512T-E/SM vs 24LC512T-I/MF
24LC515-I/SM Microchip Technology Inc $3.8966 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8 24LC512T-E/SM vs 24LC515-I/SM
24LC512T-E/SN Microchip Technology Inc Check for Price 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 24LC512T-E/SM vs 24LC512T-E/SN

24LC512T-E/SM Frequently Asked Questions (FAQ)

  • The 24LC512T-E/SM has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the application and usage.

  • The 24LC512T-E/SM uses a page write buffer to handle page writes. The device can perform page writes of up to 128 bytes. For block writes, the device can perform writes of up to 64 bytes. It's recommended to use the page write buffer to minimize the number of write cycles.

  • The recommended voltage range for the 24LC512T-E/SM is 2.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.

  • The 24LC512T-E/SM has a built-in power-on reset circuit that ensures the device is in a known state after power-up. During power-down, the device should be sequenced to ensure that the VCC pin is the last to be powered down to prevent data corruption.

  • The maximum clock frequency for the 24LC512T-E/SM is 1 MHz. Operating the device at higher clock frequencies may result in errors or data corruption.
