Memory / EEPROMs / 24LC1025T-E/SM
Datasheets
24LC1025T-E/SM by: Microchip Technology Inc

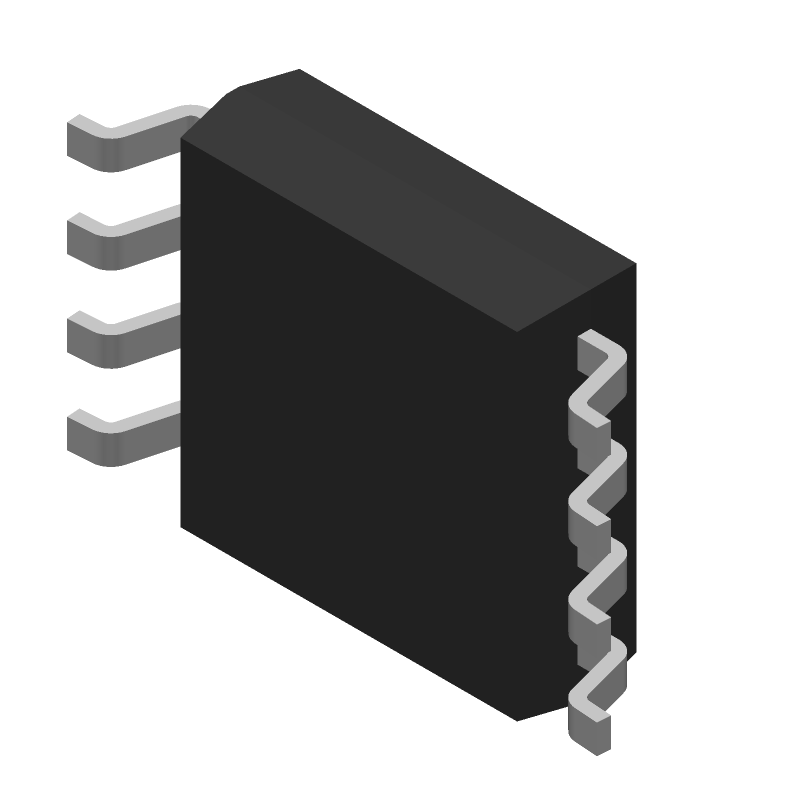

128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8

Part Details for 24LC1025T-E/SM by Microchip Technology Inc

Results Overview of 24LC1025T-E/SM by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

24LC1025T-E/SM Information

24LC1025T-E/SM by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24LC1025T-E/SM

Part # Distributor Description Stock Price Buy
DISTI # 69K0718
Newark 1024K, 128K X 8, 2.5V Ser Ee, 128 Byte Page, Ext 8 Soij .208In T/R Rohs Compliant: Yes |Microchip 24LC1025T-E/SM RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $3.7500
$3.7500 Buy Now
DISTI # 24LC1025T-E/SMCT-ND
DigiKey IC EEPROM 1MBIT I2C 400KHZ 8SOIJ Min Qty: 1 Lead time: 5 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 15258
In Stock
  • 1 $4.4800
  • 2,100 $3.7724
$3.7724 / $4.4800 Buy Now
DISTI # 24LC1025T-E/SM
Avnet Americas EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V 8-Pin SOIJ T/R - Tape and Reel (Alt: 24LC1025T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 5 Weeks, 0 Days Container: Reel 0
  • 2,100 $3.6625
  • 4,200 $3.6330
  • 8,400 $3.6035
  • 12,600 $3.5745
  • 16,800 $3.5378
$3.5378 / $3.6625 Buy Now
DISTI # 579-24LC1025T-E/SM
Mouser Electronics EEPROM 1024K 128KX8 2.5V SER EE 128 BYTE PAGE RoHS: Compliant 9437
  • 1 $3.9300
  • 25 $3.7800
  • 2,100 $3.7800
$3.7800 / $3.9300 Buy Now
DISTI # V72:2272_06422470
Arrow Electronics EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIJ T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2324 Container: Cut Strips Americas - 1921
  • 1 $4.1410
  • 10 $4.0770
  • 25 $4.0130
  • 100 $3.9490
  • 250 $3.8850
  • 500 $3.8210
  • 1,000 $3.7570
$3.7570 / $4.1410 Buy Now
DISTI # 24LC1025T-E/SM
Microchip Technology Inc 1024K, 128K X 8, 2.5V SER EE, 128 BYTE PAGE, SOIJ, Projected EOL: 2034-11-30 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Reel 14700

Alternates Available
  • 1 $3.9300
  • 25 $3.7800
  • 100 $3.6400
  • 1,000 $3.4300
  • 5,000 $3.2400
$3.2400 / $3.9300 Buy Now
DISTI # 70453830
RS 1024K, 128K X 8, 2.5V SER EE, 128 BYTE PAGE, EXT8 SOIJ .208in T/R Min Qty: 2100 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 2,100 $7.4700
  • 10,500 $7.1000
  • 21,000 $6.7200
  • 42,000 $6.3500
$6.3500 / $7.4700 RFQ
Onlinecomponents.com EEPROM - Serial I²C - 1 Mbit (128K x 8) - 2.5V/3.3V/5V - 400 kHz - 8 Pin SOIC-W - Tape&Reel RoHS: Compliant 1273 In Stock
14700 Factory Stock
  • 5 $11.0400
  • 100 $10.8700
  • 250 $10.7100
  • 525 $10.5500
  • 1,050 $5.5700
  • 1,575 $3.8300
  • 2,100 $3.7500
$3.7500 / $11.0400 Buy Now
DISTI # 76828263
Verical EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIJ T/R RoHS: Compliant Min Qty: 8 Package Multiple: 1 Americas - 2100
  • 8 $3.2600
  • 10 $3.2500
  • 50 $3.2200
  • 1,000 $3.2100
$3.2100 / $3.2600 Buy Now
DISTI # 69739450
Verical EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIJ T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2324 Americas - 1921
  • 2 $4.1410
  • 10 $4.0770
  • 25 $4.0130
  • 100 $3.9490
  • 250 $3.8850
  • 500 $3.8210
  • 1,000 $3.7570
$3.7570 / $4.1410 Buy Now
DISTI # 69148970
Verical EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIJ T/R RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2324 Americas - 1270
  • 5 $14.3520
  • 100 $14.1310
  • 250 $13.9230
  • 525 $13.7150
  • 1,050 $7.2410
$7.2410 / $14.3520 Buy Now
NAC 1024K, 128K X 8, 2.5V SER EE, 128 BYTE PAGE, EXT - Package: 8 SOIJ .208in T/R RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 0
  • 1 $4.3100
  • 100 $3.9100
  • 500 $3.6600
  • 1,000 $3.5700
$3.5700 / $4.3100 Buy Now
DISTI # 24LC1025T-E/SM
Avnet Silica EEPROM SerialI2C 1Mbit 128K x 8 33V5V 8Pin SOIJ TR (Alt: 24LC1025T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 24LC1025T-E/SM
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2100
  • 1 $3.2600
  • 10 $3.2500
  • 50 $3.2200
  • 500 $3.2200
  • 1,000 $3.2100
$3.2100 / $3.2600 Buy Now
DISTI # 24LC1025T-E/SM
EBV Elektronik EEPROM SerialI2C 1Mbit 128K x 8 33V5V 8Pin SOIJ TR (Alt: 24LC1025T-E/SM) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Serial I²C - 1 Mbit (128K x 8) - 2.5V/3.3V/5V - 400 kHz - 8 Pin SOIC-W - Tape&Reel RoHS: Compliant 1273 In Stock
14700 Factory Stock
  • 5 $11.0400
  • 100 $10.8700
  • 250 $10.7100
  • 525 $10.5500
  • 1,050 $5.5700
  • 1,575 $3.8300
  • 2,100 $3.7500
$3.7500 / $11.0400 Buy Now
Vyrian Memory ICs 4220
RFQ
Win Source Electronics IC EEPROM 1M I2C 400KHZ 8SOIJ / 1024K I2C™ CMOS Serial EEPROM 8200
  • 13 $4.6921
  • 31 $3.8500
  • 47 $3.7296
  • 64 $3.6094
  • 83 $3.4890
  • 111 $3.1281
$3.1281 / $4.6921 Buy Now

Part Details for 24LC1025T-E/SM

24LC1025T-E/SM Part Data Attributes

Parametric Data
24LC1025T-E/SM Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24LC1025T-E/SM Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010MDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 5.26 mm
Memory Density 1048576 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 131072 words
Number of Words Code 128000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Organization 128KX8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 3 V
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 2.03 mm
Serial Bus Type I2C
Standby Current-Max 0.000005 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.25 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

24LC1025T-E/SM Related Parts

24LC1025T-E/SM Frequently Asked Questions (FAQ)

  • The 24LC1025T-E/SM has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the application and usage.

  • The 24LC1025T-E/SM uses a page write buffer to handle page writes. The device can perform page writes up to 128 bytes. For block writes, the device uses a block write buffer that can handle up to 4KB of data. The device automatically handles page and block writes, and the host controller only needs to send the write command and data.

  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored. When the WP pin is tied to GND, the device is in normal operation mode.

  • The 24LC1025T-E/SM has a built-in power-on reset circuit that resets the device to its default state when power is applied. During power-down, the device automatically goes into a low-power standby mode to conserve power.

  • The maximum clock frequency for the 24LC1025T-E/SM is 400 kHz. However, the device can operate at lower clock frequencies, and the host controller can adjust the clock frequency to optimize performance and power consumption.
