Memory / EEPROMs / 24FC512T-I/ST
Datasheets
24FC512T-I/ST by: Microchip Technology Inc

64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8

Part Details for 24FC512T-I/ST by Microchip Technology Inc

Results Overview of 24FC512T-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

24FC512T-I/ST Information

24FC512T-I/ST by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24FC512T-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 57AC4931
Newark Eeprom, 512Kbit, 1Mhz, -40 To 85Deg C, Memory Size:512Kbit, Eeprom Memory Configuration:64K X 8Bit, Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:1Mhz, Memory Case Style:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, rohs Compliant: Yes |Microchip 24FC512T-I/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4545
  • 1 $1.7600
  • 10 $1.7300
  • 25 $1.6900
$1.6900 / $1.7600 Buy Now
DISTI # 08R2179
Newark 512K, 64K X 8, 2.5V Hi-Speed Ser Ee, Ind 8 Tssop 4.4Mm T/R Rohs Compliant: Yes |Microchip 24FC512T-I/ST RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,500 $1.6800
$1.6800 Buy Now
DISTI # 24FC512T-I/STCT-ND
DigiKey IC EEPROM 512KBIT I2C 8TSSOP Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4170
In Stock
  • 1 $2.0000
  • 2,500 $1.6375
$1.6375 / $2.0000 Buy Now
DISTI # 24FC512T-I/ST
Avnet Americas EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: 24FC512T-I/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Container: Reel 2500
  • 2,500 $0.8319
$0.8319 Buy Now
DISTI # 579-24FC512T-I/ST
Mouser Electronics EEPROM 512K 64K X 8 2.5V HI-SPEED SER EE IND RoHS: Compliant 8088
  • 1 $1.7600
  • 25 $1.7000
  • 100 $1.6900
  • 1,000 $1.6400
  • 2,500 $1.6400
$1.6400 / $1.7600 Buy Now
DISTI # 24FC512T-I/ST
Microchip Technology Inc 512K, 64K X 8, 1MHz SER EE, IND, TSSOP, Projected EOL: 2034-02-12 COO: China, Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 11 Weeks, 0 Days Container: Reel 42400
  • 1 $1.7600
  • 25 $1.6900
  • 100 $1.6300
  • 1,000 $1.5400
  • 5,000 $1.4500
$1.4500 / $1.7600 Buy Now
DISTI # 70453773
RS 512K, 64K X 8, 2.5V HI-SPEED SER EE, IND8 TSSOP 4.4mm T/R Min Qty: 2500 Package Multiple: 1 Container: Bulk 0
  • 2,500 $3.3400
  • 12,500 $3.1700
  • 25,000 $3.0100
  • 50,000 $2.8400
$2.8400 / $3.3400 RFQ
Onlinecomponents.com EEPROM - Serial-I²C - 512Kb (64K x 8) - 1MHz - 1.8/2.5V/3.3V/5V - 8-Pin TSSOP - Tape&Reel RoHS: Compliant 2500 In Stock
90000 Factory Stock
  • 250 $1.7200
  • 500 $1.7000
  • 1,000 $1.6200
  • 2,500 $1.5900
  • 5,000 $1.5700
$1.5700 / $1.7200 Buy Now
DISTI # 66325966
Verical EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 Date Code: 2252 Americas - 2500
  • 250 $2.2360
  • 500 $2.2100
  • 1,000 $2.1060
  • 2,500 $2.0670
  • 5,000 $2.0410
$2.0410 / $2.2360 Buy Now
DISTI # 24FC512T-I/ST
IBS Electronics EEPROM SERIAL-I2C 512K-BIT 64K X 8 1.8V/2.5V/3.3V/5V 8-PIN TSSOP T/R Min Qty: 250 Package Multiple: 1 2500
  • 250 $2.2360
  • 500 $2.2100
  • 1,000 $2.1060
  • 2,500 $2.0670
  • 5,000 $2.0410
$2.0410 / $2.2360 Buy Now
NAC 512K, 64K X 8, 2.5V HI-SPEED SER EE, IND - Package: 8 TSSOP 4.4mm T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 0
  • 1 $2.0200
  • 100 $1.8200
  • 500 $1.6800
  • 1,000 $1.6400
$1.6400 / $2.0200 Buy Now
Chip 1 Exchange INSTOCK Date Code: 22+ 400000
RFQ
DISTI # 24FC512T-I/ST
Avnet Silica EEPROM SerialI2C 512Kbit 64K x 8 18V25V33V5V 8Pin TSSOP TR (Alt: 24FC512T-I/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC EEPROM 512KBIT I2C 8TSSOP 42500
RFQ
DISTI # 24FC512T-I/ST
EBV Elektronik EEPROM SerialI2C 512Kbit 64K x 8 18V25V33V5V 8Pin TSSOP TR (Alt: 24FC512T-I/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
LCSC 1MHz I2C TSSOP-8 EEPROM ROHS 7
  • 1 $2.8330
  • 10 $2.7727
  • 30 $2.7319
  • 100 $2.6911
$2.6911 / $2.8330 Buy Now
Master Electronics EEPROM - Serial-I²C - 512Kb (64K x 8) - 1MHz - 1.8/2.5V/3.3V/5V - 8-Pin TSSOP - Tape&Reel RoHS: Compliant 2500 In Stock
90000 Factory Stock
  • 250 $1.7200
  • 500 $1.7000
  • 1,000 $1.6200
  • 2,500 $1.5900
  • 5,000 $1.5700
$1.5700 / $1.7200 Buy Now
Vyrian Memory ICs 8142
RFQ

Part Details for 24FC512T-I/ST

24FC512T-I/ST CAD Models

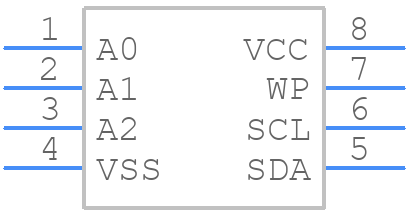

  • Part Symbol

    Part Symbol

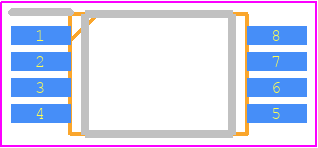

  • Footprint

    footprint

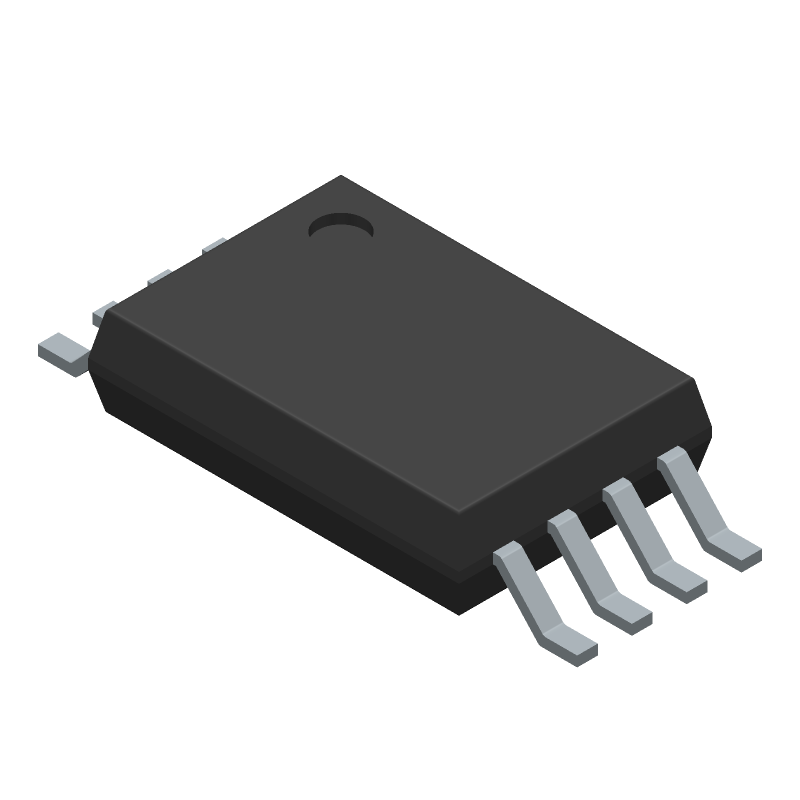

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

24FC512T-I/ST Part Data Attributes

Parametric Data
24FC512T-I/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24FC512T-I/ST Microchip Technology Inc 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 11 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 1 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.4 mm
Memory Density 524288 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 65536 words
Number of Words Code 64000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 64KX8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.5 V
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.2 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for 24FC512T-I/ST

This table gives cross-reference parts and alternative options found for 24FC512T-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24FC512T-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
24FC512-I/ST Microchip Technology Inc $1.5695 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 24FC512T-I/ST vs 24FC512-I/ST

24FC512T-I/ST Related Parts

24FC512T-I/ST Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the 24FC512T-I/ST is 1 MHz.

  • The 24FC512T-I/ST can write up to 128 bytes of data at one time.

  • The 24FC512T-I/ST has an endurance of 1 million erase/write cycles.

  • The 24FC512T-I/ST has a data retention period of 100 years.

  • Yes, the 24FC512T-I/ST is compatible with the I2C bus.
