Memory / EEPROMs / 24FC512-I/SN
Datasheets
24FC512-I/SN by: Microchip Technology Inc

64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8

Part Details for 24FC512-I/SN by Microchip Technology Inc

Results Overview of 24FC512-I/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

24FC512-I/SN Information

24FC512-I/SN by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24FC512-I/SN

Part # Distributor Description Stock Price Buy
DISTI # 66AH1899
Newark Eeprom, 512Kbit, -40 To 85Deg C Rohs Compliant: Yes |Microchip 24FC512-I/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 289
  • 1 $1.7100
  • 10 $1.6800
  • 25 $1.6400
  • 50 $1.6300
  • 100 $1.6200
  • 500 $1.6100
$1.6100 / $1.7100 Buy Now
DISTI # 08R2176
Newark Serial Eeprom, 512Kbit, 1Mhz, Soic-8, Memory Configuration:64K X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Soic, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mountrohs Compliant: Yes |Microchip 24FC512-I/SN RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.6800
  • 500 $1.6700
$1.6700 / $1.6800 Buy Now
DISTI # 24FC512-I/SN-ND
DigiKey IC EEPROM 512KBIT I2C 1MHZ 8SOIC Min Qty: 1 Lead time: 4 Weeks Container: Tube 1117
In Stock
  • 1 $1.7500
  • 25 $1.6892
  • 100 $1.6609
$1.6609 / $1.7500 Buy Now
DISTI # 24FC512-I/SN
Avnet Americas EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube - Rail/Tube (Alt: 24FC512-I/SN) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 200 $1.6125
  • 400 $1.5995
  • 600 $1.5865
  • 1,000 $1.5737
  • 2,000 $1.5576
$1.5576 / $1.6125 Buy Now
DISTI # 579-24FC512-I/SN
Mouser Electronics EEPROM 512K 64K X 8 2.5V HI-SPEED SER EE IND RoHS: Compliant 8623
  • 1 $1.7000
  • 25 $1.6400
  • 100 $1.6100
$1.6100 / $1.7000 Buy Now
DISTI # V36:1790_06422710
Arrow Electronics EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 4 Weeks Date Code: 2211 Americas - 70
  • 100 $1.6060
$1.6060 Buy Now
DISTI # 24FC512-I/SN
Microchip Technology Inc 512K, 64K X 8, 1MHz SER EE, IND, SOIC, Projected EOL: 2034-02-12 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 10 Weeks, 0 Days Container: Tube 12858

Alternates Available
  • 1 $1.7000
  • 25 $1.6400
  • 100 $1.5800
  • 1,000 $1.5000
  • 5,000 $1.4100
$1.4100 / $1.7000 Buy Now
DISTI # 70451477
RS 512K, 64K X 8, 2.5V HI-SPEED SER EE, IND8 SOIC 3.90mm(.150in) TUBE Min Qty: 200 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 200 $1.9400
  • 2,000 $1.8400
  • 10,000 $1.7400
  • 20,000 $1.6400
$1.6400 / $1.9400 RFQ
Future Electronics 24FC512 Series 512 Kb (64 K x 8) 5.5 V SMT I2C™ Serial EEPROM - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Container: Tube 6200
Tube
  • 1 $0.2200
  • 150 $0.2150
  • 2,000 $0.2050
  • 7,500 $0.1980
$0.1980 / $0.2200 Buy Now
Onlinecomponents.com EEPROM - Serial-I²C - 512Kb (64K x 8) - 1MHz - 1.8/2.5V/3.3V/5V - 8-Pin SOIC - Tube RoHS: Compliant 5000 In Stock
14600 Factory Stock
  • 100 $1.7200
  • 300 $1.6600
  • 500 $1.6300
  • 1,000 $1.5600
  • 2,500 $1.5400
  • 5,000 $1.5200
$1.5200 / $1.7200 Buy Now
DISTI # 65123913
Verical EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2201 Americas - 5000
  • 100 $2.0235
  • 300 $1.9529
  • 500 $1.9176
  • 1,000 $1.8353
  • 2,500 $1.8118
$1.8118 / $2.0235 Buy Now
DISTI # 81009420
Verical EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 70 Package Multiple: 70 Date Code: 2211 Americas - 70
  • 70 $1.6060
$1.6060 Buy Now
Quest Components EEPROM, 64KX8, SERIAL, CMOS, PDSO8 160
  • 1 $6.8190
  • 16 $4.5460
  • 56 $4.2051
$4.2051 / $6.8190 Buy Now
Future Electronics 24FC512 Series 512 Kb (64 K x 8) 5.5 V SMT I2C� Serial EEPROM - SOIC-8 Min Qty: 100 Package Multiple: 100 6200
null
  • 100 $0.2200
  • 400 $0.2150
  • 2,000 $0.2050
  • 12,500 $0.1980
$0.1980 / $0.2200 Buy Now
DISTI # 24FC512-I/SN
TME IC: EEPROM memory, 512kbEEPROM, I2C, 64kx8bit, 1.7÷5.5V, 1MHz, SO8 Min Qty: 1 100
  • 1 $2.1400
  • 10 $2.0600
  • 25 $1.9400
  • 100 $1.7400
$1.7400 / $2.1400 Buy Now
NAC 512K, 64K X 8, 2.5V HI-SPEED SER EE, IND - Package: 8 SOIC 3.90mm(.150in) TUBE RoHS: Compliant Min Qty: 200 Package Multiple: 100 Container: Tube 0
  • 1 $1.9800
  • 100 $1.7900
  • 500 $1.6500
  • 1,000 $1.6100
$1.6100 / $1.9800 Buy Now
DISTI # 24FC512-I/SN
Avnet Silica EEPROM SerialI2C 512Kbit 64K x 8 18V25V33V5V 8Pin SOIC N Tube (Alt: 24FC512-I/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 24FC512-I/SN
EBV Elektronik EEPROM SerialI2C 512Kbit 64K x 8 18V25V33V5V 8Pin SOIC N Tube (Alt: 24FC512-I/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Serial-I²C - 512Kb (64K x 8) - 1MHz - 1.8/2.5V/3.3V/5V - 8-Pin SOIC - Tube RoHS: Compliant 5000 In Stock
14600 Factory Stock
  • 100 $1.7200
  • 300 $1.6600
  • 500 $1.6300
  • 1,000 $1.5600
  • 2,500 $1.5400
  • 5,000 $1.5200
$1.5200 / $1.7200 Buy Now
Vyrian Memory ICs 2240
RFQ
Win Source Electronics IC EEPROM 512KBIT 1MHZ 8SOIC 15000
  • 35 $1.7210
  • 85 $1.4126
  • 130 $1.3675
  • 175 $1.3236
  • 230 $1.2797
  • 305 $1.1469
$1.1469 / $1.7210 Buy Now

Part Details for 24FC512-I/SN

24FC512-I/SN CAD Models

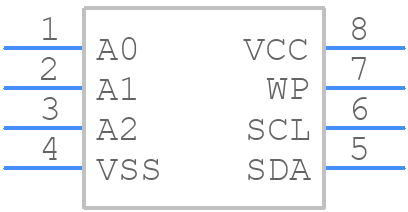

  • Part Symbol

    Part Symbol

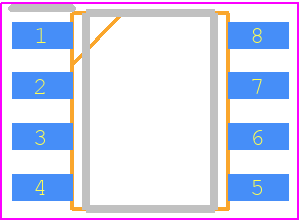

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

24FC512-I/SN Part Data Attributes

Parametric Data
24FC512-I/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24FC512-I/SN Microchip Technology Inc 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 1 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Memory Density 524288 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 65536 words
Number of Words Code 64000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 64KX8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.23
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.5 V
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.75 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for 24FC512-I/SN

This table gives cross-reference parts and alternative options found for 24FC512-I/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24FC512-I/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
24FC512T-I/ST Microchip Technology Inc $1.8466 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 24FC512-I/SN vs 24FC512T-I/ST
24FC512T-I/MF Microchip Technology Inc $2.3200 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 6 X 5 MM, PLASTIC, ROHS COMPLIANT, DFN-8 24FC512-I/SN vs 24FC512T-I/MF
M24512-DFMC6P STMicroelectronics Check for Price EEPROM 5V 24FC512-I/SN vs M24512-DFMC6P
M24512-RCS6P STMicroelectronics Check for Price EEPROM 5V 24FC512-I/SN vs M24512-RCS6P
24FC512-I/CS17K Microchip Technology Inc Check for Price 64K X 8 I2C/2-WIRE SERIAL EEPROM, PBGA8, ROHS COMPLIANT, CSP-8 24FC512-I/SN vs 24FC512-I/CS17K
M24512-DRDW6G/K STMicroelectronics Check for Price 64KX8 EEPROM 5V, PDSO8, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 24FC512-I/SN vs M24512-DRDW6G/K
24FC512-I/ST14G Microchip Technology Inc Check for Price 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO14, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-14 24FC512-I/SN vs 24FC512-I/ST14G
M24512-RDW6TP/K STMicroelectronics Check for Price 64KX8 EEPROM 5V, PDSO8, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 24FC512-I/SN vs M24512-RDW6TP/K
M24512-RDW6TG/K STMicroelectronics Check for Price 64KX8 EEPROM 5V, PDSO8, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 24FC512-I/SN vs M24512-RDW6TG/K
24FC512T-I/ST14 Microchip Technology Inc Check for Price 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO14, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-14 24FC512-I/SN vs 24FC512T-I/ST14

24FC512-I/SN Related Parts

24FC512-I/SN Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the 24FC512-I/SN is 1 MHz.

  • The 24FC512-I/SN allows byte, word, or page writes. A page is 128 bytes, and the device can write up to 128 bytes at a time.

  • The 24FC512-I/SN has an endurance of 1 million erase/write cycles.

  • The 24FC512-I/SN has a data retention of 100 years.

  • Yes, the 24FC512-I/SN is compatible with the I2C protocol.
