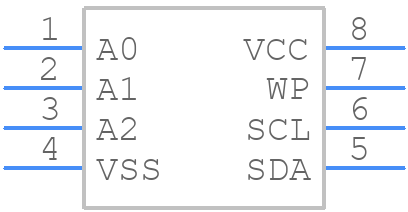

Part Symbol
-

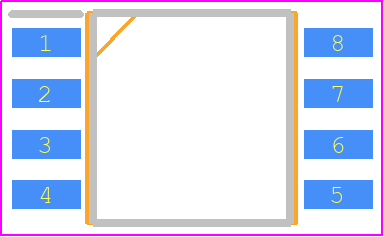

Footprint
-

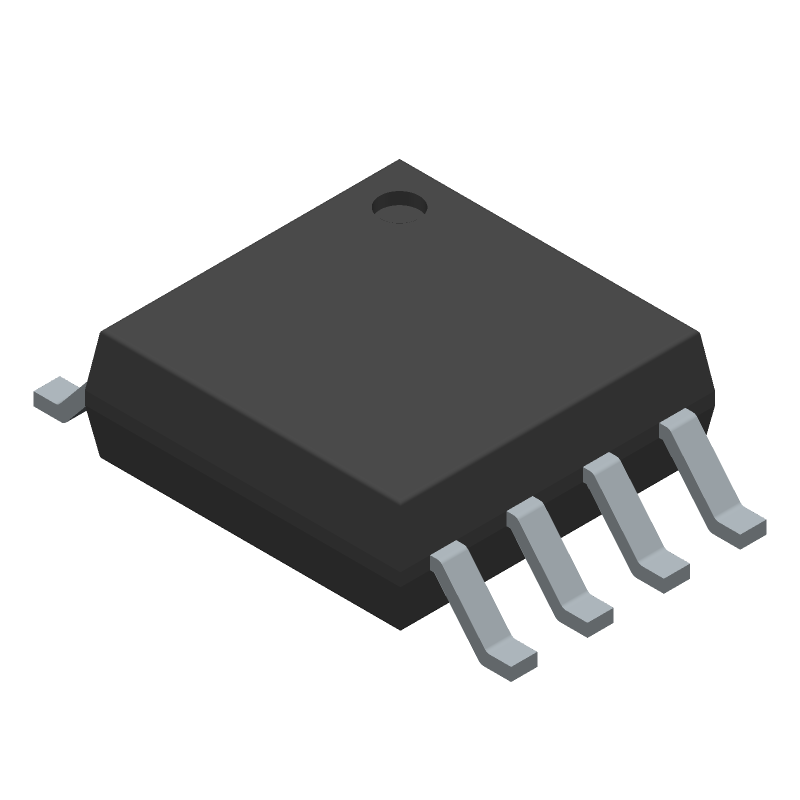

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 24LC512-E/SM by Microchip Technology Inc
Results Overview of 24LC512-E/SM by Microchip Technology Inc
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
24LC512-E/SM Information
24LC512-E/SM by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 24LC512-E/SM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08N6842
|
Newark | Serial Eeprom, 512Kbit, 400Khz, Soij-8, Memory Size:512Kbit, Eeprom Memory Configuration:64K X 8Bit, Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:400Khz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Rohs Compliant: Yes |Microchip 24LC512-E/SM RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 514 |
|
$1.7100 / $1.8200 | Buy Now |
|
DISTI #
28AC8210
|
Newark | 512K, 64K X 8, 2.5V Ser Ee, Ext Rohs Compliant: Yes |Microchip 24LC512-E/SM RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 70 |
|
$1.7800 / $1.8000 | Buy Now |
|
DISTI #
24LC512-E/SM-ND
|
DigiKey | IC EEPROM 512KBIT I2C 8SOIJ Min Qty: 1 Lead time: 31 Weeks Container: Tube |
8409 In Stock |
|
$1.7125 / $1.8200 | Buy Now |
|
DISTI #
24LC512-E/SM
|
Avnet Americas | EEPROM, 512 Kbit, 64K x 8bit, I2C, 400 kHz, SOIJ, 8 Pins - Rail/Tube (Alt: 24LC512-E/SM) RoHS: Compliant Min Qty: 90 Package Multiple: 1 Lead time: 31 Weeks, 0 Days Container: Tube | 70 |
|
$1.6542 / $1.7125 | Buy Now |
|
DISTI #
579-24LC512-E/SM
|
Mouser Electronics | EEPROM 64kx8 - 2.5V RoHS: Compliant | 34330 |
|
$1.7100 / $1.7900 | Buy Now |
|
DISTI #
E54:1762_00186524
|
Arrow Electronics | EEPROM Serial-I2C 512K-bit 64K x 8 3.3V/5V 8-Pin SOIJ Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks | Europe - 410 |
|
$1.7390 | Buy Now |
|
DISTI #
V99:2348_06423235
|
Arrow Electronics | EEPROM Serial-I2C 512K-bit 64K x 8 3.3V/5V 8-Pin SOIJ Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks Date Code: 2304 | Americas - 360 |
|
$1.7390 | Buy Now |
|
DISTI #
24LC512-E/SM
|
Microchip Technology Inc | 512K, 64K X 8 2.5V SERIAL EE, SOIJ, Projected EOL: 2034-10-30 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 31 Weeks, 0 Days Container: Tube |
5443 Alternates Available |
|
$1.5000 / $1.8200 | Buy Now |
|
DISTI #
70046936
|
RS | Microchip 24LC512-E/SM Serial EEPROM Memory,512kbit,900ns,2.5 to 5.5V 8-Pin SOIJ Min Qty: 270 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk | 0 |
|
$1.7500 / $2.0600 | RFQ |
|
|
Future Electronics | 24LC512 Series 512 Kb I2C 2 Wire (64K X 8) 2.5 V Serial EEPROM SMT - SOIJ-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks Container: Tube | 420Tube |
|
$1.6300 / $1.7400 | Buy Now |
Part Details for 24LC512-E/SM
24LC512-E/SM CAD Models
24LC512-E/SM Part Data Attributes
|
|
24LC512-E/SM
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
24LC512-E/SM
Microchip Technology Inc
64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 31 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 5.245 mm | |
| Memory Density | 524288 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 65536 words | |
| Number of Words Code | 64000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 64KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.03 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000005 A | |
| Supply Current-Max | 0.005 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 5.23 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
Alternate Parts for 24LC512-E/SM
This table gives cross-reference parts and alternative options found for 24LC512-E/SM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24LC512-E/SM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 24LC512T-I/SM | Microchip Technology Inc | $1.5624 | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512T-I/SM |
| 24LC512-I/SMG | Microchip Technology Inc | $1.7258 | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512-I/SMG |
| 24LC512-I/SM | Microchip Technology Inc | $1.7781 | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512-I/SM |
| 24LC512T-E/SM | Microchip Technology Inc | $2.0700 | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512T-E/SM |
| 24LC512-E/SMG | Microchip Technology Inc | Check for Price | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512-E/SMG |
| 24LC512T-I/SMG | Microchip Technology Inc | Check for Price | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512T-I/SMG |
| 24LC512T-E/SMG | Microchip Technology Inc | Check for Price | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, PLASTIC, ROHS COMPLIANT, EIAJ, SOIJ-8 | 24LC512-E/SM vs 24LC512T-E/SMG |
| 24LC512-ET/SM | Microchip Technology Inc | Check for Price | 64K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOIC-8 | 24LC512-E/SM vs 24LC512-ET/SM |
24LC512-E/SM Frequently Asked Questions (FAQ)
-
The 24LC512-E/SM has a minimum of 1 million write cycles, but this can vary depending on the operating conditions and usage patterns.
-
To ensure data integrity, use a voltage supervisor or a power-on reset circuit to prevent the device from operating during power-down or brownout conditions. Additionally, use a capacitor to filter out noise and voltage spikes.
-
The recommended clock frequency for the 24LC512-E/SM is up to 1 MHz, but it can operate at frequencies up to 3.4 MHz with some limitations.
-
The 24LC512-E/SM is rated for operation up to 125°C, but it's recommended to derate the device for high-temperature applications. Consult the datasheet for specific derating guidelines.
-
The 24LC512-E/SM uses a page-write architecture, where data is written in 128-byte pages. For block writes, use the page-write protocol and ensure that the device is properly erased before writing new data.
