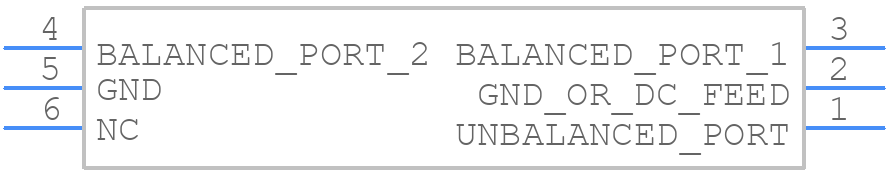

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2450BL15B100E by Johanson Technology Inc
Results Overview of 2450BL15B100E by Johanson Technology Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
2450BL15B100E Information
2450BL15B100E by Johanson Technology Inc is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for 2450BL15B100E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11N6651
|
Newark | Balun, 2.45Ghz, 50/100 Ohm, 805, Impedance - Unbalanced/Balanced:50Ohm, 100Ohm, Insertion Loss:1Db, Phase Difference:180° ± 10°, Balun Case Style:0805, Frequency Min:2.4Ghz, Frequency Max:2.5Ghz, Product Range:-, Balun Mounting:Smdrohs Compliant: Yes |Johanson Technology 2450BL15B100E RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1630 | Buy Now |
|
DISTI #
98J0417
|
Newark | Balun, Full Reel, Impedance - Unbalanced/Balanced:50Ohm, 100Ohm, Insertion Loss:1Db, Phase Difference:180° ± 10°, Balun Case Style:0805, Frequency Min:2.4Ghz, Frequency Max:2.5Ghz, Product Range:-, Balun Mounting:Smd Rohs Compliant: Yes |Johanson Technology 2450BL15B100E RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0900 / $0.1460 | Buy Now |
|
DISTI #
2450BL15B100E
|
Avnet Asia | 2.4GHz RF Balun 3W 6-Pin SMD T/R (Alt: 2450BL15B100E) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Win Source Electronics | High Frequency Ceramic Solutions | BALUN 2.4GHZ-2.5GHZ 50/100 0805 | 75000 |
|
$0.1065 / $0.1596 | Buy Now |
Part Details for 2450BL15B100E
2450BL15B100E CAD Models
2450BL15B100E Part Data Attributes
|
|
2450BL15B100E
Johanson Technology Inc
Buy Now
Datasheet
|
Compare Parts:
2450BL15B100E
Johanson Technology Inc
RF Transformer,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | JOHANSON TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | JOHANSON TECHNOLOGY | |
| Cut-off Frequency-Max | 2500 MHz | |
| Cut-off Frequency-Min | 2400 MHz | |
| Height | 0.85 mm | |
| Insertion Loss | 1 dB | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Surface Mount | YES | |
| Transformer Type | RF TRANSFORMER | |
| Width | 1.25 mm |
Alternate Parts for 2450BL15B100E
This table gives cross-reference parts and alternative options found for 2450BL15B100E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2450BL15B100E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2450BL15B100E | Johanson Dielectrics Inc | Check for Price | RF Transformer, 2400MHz Min, 2500MHz Max, | 2450BL15B100E vs 2450BL15B100E |
2450BL15B100E Frequently Asked Questions (FAQ)
-
The recommended land pattern for the 2450BL15B100E can be found in the Johanson Technology Inc. application note AN-1001, which provides guidelines for PCB layout and footprint design.
-
To prevent moisture-related issues, it is recommended to follow the recommended storage and handling procedures outlined in the datasheet, and to bake the components at 125°C for 24 hours prior to reflow soldering.
-
The maximum reflow temperature for the 2450BL15B100E is 260°C, with a recommended peak temperature of 250°C to ensure reliable soldering and component integrity.
-
While the 2450BL15B100E is designed to be robust, it is recommended to consult with Johanson Technology Inc. or a qualified engineer to assess the suitability of the component for high-vibration applications, and to consider additional mechanical support or fixation methods if necessary.
-
The typical lead time for the 2450BL15B100E can vary depending on the quantity and availability. It is recommended to check with authorized distributors or Johanson Technology Inc. for the most up-to-date lead time information.
