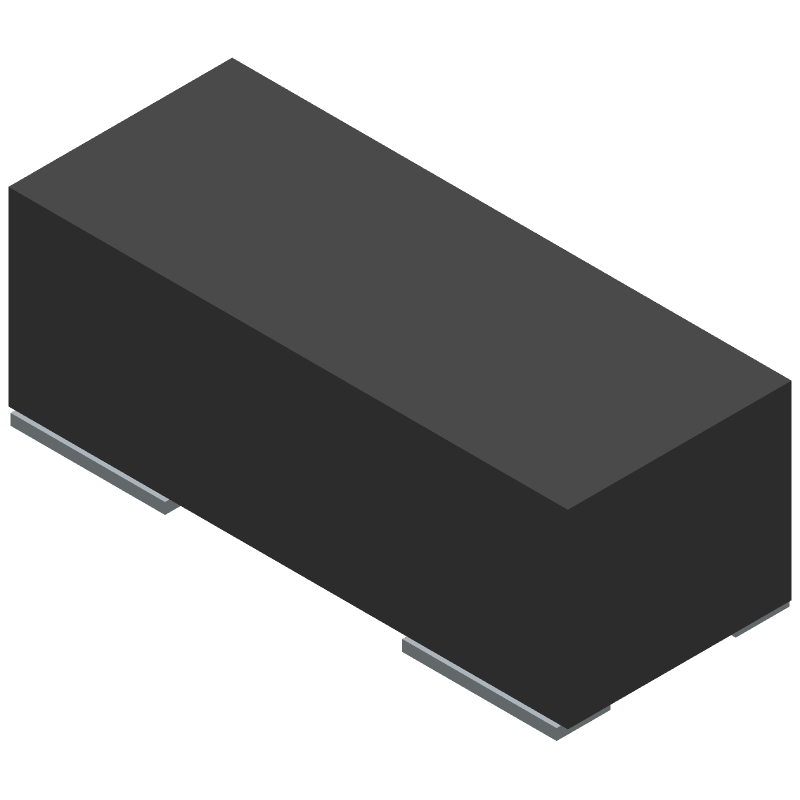

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2450AT42E0100E by Johanson Technology Inc
Results Overview of 2450AT42E0100E by Johanson Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2450AT42E0100E Information
2450AT42E0100E by Johanson Technology Inc is an RF/Microwave Antenna.
RF/Microwave Antennas are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for 2450AT42E0100E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AC3823
|
Newark | Antenna Chip 2.4Ghz /7 Inch Reel |Johanson Technology 2450AT42E0100E RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2590 / $0.2840 | Buy Now |
|
DISTI #
2450AT42E0100E
|
Avnet Asia | (Alt: 2450AT42E0100E) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for 2450AT42E0100E
2450AT42E0100E CAD Models
2450AT42E0100E Part Data Attributes
|
|
2450AT42E0100E
Johanson Technology Inc
Buy Now
Datasheet
|
Compare Parts:
2450AT42E0100E
Johanson Technology Inc
ANTENNA
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | JOHANSON TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | JOHANSON TECHNOLOGY | |
| Additional Feature | ANTENNA GAIN IS -5.0 DBI | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Omnidirectional | NO | |
| Operating Frequency-Max | 2480 MHz | |
| Operating Frequency-Min | 2400 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Equivalence Code | DIE OR CHIP | |
| RF/Microwave Device Type | MOBILE STATION ANTENNA | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Transmission Power-Max | 2 W | |
| VSWR-Max | 3.21 |
