2309644-1 by: TE Connectivity

Rack and Panel Connector

Part Details for 2309644-1 by TE Connectivity

Results Overview of 2309644-1 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2309644-1 Information

2309644-1 by TE Connectivity is a Multiway Rack and Panel Connector.
Multiway Rack and Panel Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2309644-1

Part # Distributor Description Stock Price Buy
DISTI # 73AC6622
Newark 30P Nanomqs/Us050 Ll Conn, W/Cpa, Key A |Te Connectivity 2309644-1 RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $0.9440
  • 1,000 $0.9010
  • 2,500 $0.8890
$0.8890 / $0.9440 Buy Now
DISTI # 17-2309644-1-ND
DigiKey 30P NANOMQS/US050 LL CONN, W/CPA Min Qty: 1 Lead time: 4 Weeks Container: Bulk 267
In Stock
  • 1 $1.4600
  • 10 $1.2440
  • 25 $1.1660
  • 50 $1.1102
  • 100 $1.0572
  • 250 $0.9910
  • 500 $0.9436
  • 1,000 $0.8986
  • 2,500 $0.8423
$0.8423 / $1.4600 Buy Now
DISTI # 2309644-1
Avnet Americas - Bulk (Alt: 2309644-1) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 111 Weeks, 0 Days Container: Bulk 0
  • 500 $0.6924
  • 1,000 $0.6882
  • 2,000 $0.6838
  • 3,000 $0.6796
  • 4,000 $0.6747
$0.6747 / $0.6924 Buy Now
DISTI # 571-2309644-1
Mouser Electronics Automotive Connectors 30P NANOMQS/US050 LL CONN, W/CPA, KEY A RoHS: Compliant 191
  • 1 $1.4600
  • 10 $1.1900
  • 25 $1.0300
  • 100 $0.9720
  • 250 $0.8960
  • 500 $0.8430
  • 1,000 $0.7920
  • 2,500 $0.7310
$0.7310 / $1.4600 Buy Now
DISTI # AMP2309644-1
Heilind Electronics 30P NANOMQS/US050 LL CONN, W/C Americas - 0 in Stock
  • 500 $0.8823
  • 900 $0.8689
  • 1,750 $0.8560
  • 8,750 $0.8434
$0.8434 / $0.8823 Buy Now
Onlinecomponents.com 30P NANOMQS/US050 LL CONN, W/CPA, KEY A RoHS: Compliant 69 In Stock
1000 On Order
  • 25 $1.1040
  • 250 $0.8760
  • 500 $0.8180
  • 1,000 $0.8140
  • 2,500 $0.8100
  • 5,000 $0.8050
  • 7,500 $0.8010
  • 10,000 $0.7970
$0.7970 / $1.1040 Buy Now
DISTI # 87663981
Verical Housing for female terminals, Nano MQS, Wire-to-Device / Wire-to-Wire, 30 Positions, Black, Signal RoHS: Compliant Min Qty: 50 Package Multiple: 25 Date Code: 2334 Americas - 50
  • 50 $1.4300
  • 250 $1.1388
  • 500 $1.0634
  • 1,000 $1.0582
  • 2,500 $1.0530
$1.0530 / $1.4300 Buy Now
DISTI # 2309644-1
TTI Automotive Connectors 30P NANOMQS/US050 LL CONN, W/CPA, KEY A Min Qty: 4 Package Multiple: 1 Container: Each Americas - 510
In Stock
  • 4 $1.4500
  • 10 $1.1800
  • 25 $1.0200
  • 50 $1.0000
  • 100 $0.9600
  • 250 $0.8800
  • 500 $0.8300
$0.8300 / $1.4500 Buy Now
DISTI # 2309644-1
IBS Electronics 30P NANOMQS/US050 LL CONN W/CPA KEY A ROHS COMPLIANT: YES |TE CONNECTIVITY 2309644-1 Min Qty: 25 Package Multiple: 1 69
  • 25 $1.4352
  • 250 $1.1388
  • 500 $1.0634
  • 1,000 $1.0582
  • 2,500 $1.0530
  • 5,000 $1.0465
  • 7,500 $1.0413
  • 10,000 $1.0361
$1.0361 / $1.4352 Buy Now
DISTI # AMP2309644-1
Interstate Connecting Components 30P NANOMQS/US050 LL CONN, W/C 0
  • 500 $0.8823
  • 900 $0.8689
  • 1,750 $0.8560
  • 8,750 $0.8434
$0.8434 / $0.8823 Buy Now
DISTI # 000000000006377057
Sager Automotive Connectors 30P NANOMQS/US050 LL CONN, W/CPA, KEY A Min Qty: 500 0
  • 500 $0.8434
  • 1,000 $0.8193
  • 1,500 $0.7965
$0.7965 / $0.8434 Buy Now
LCSC Connector Housings ROHS 10
  • 1 $1.7169
  • 10 $1.6762
  • 30 $1.6490
  • 100 $1.6204
$1.6204 / $1.7169 Buy Now
Master Electronics 30P NANOMQS/US050 LL CONN, W/CPA, KEY A RoHS: Compliant 69 In Stock
1000 On Order
  • 25 $1.1040
  • 250 $0.8760
  • 500 $0.8180
  • 1,000 $0.8140
  • 2,500 $0.8100
  • 5,000 $0.8050
  • 7,500 $0.8010
  • 10,000 $0.7970
$0.7970 / $1.1040 Buy Now

Part Details for 2309644-1

2309644-1 Part Data Attributes

Parametric Data
2309644-1 TE Connectivity
Buy Now Datasheet
Compare Parts:

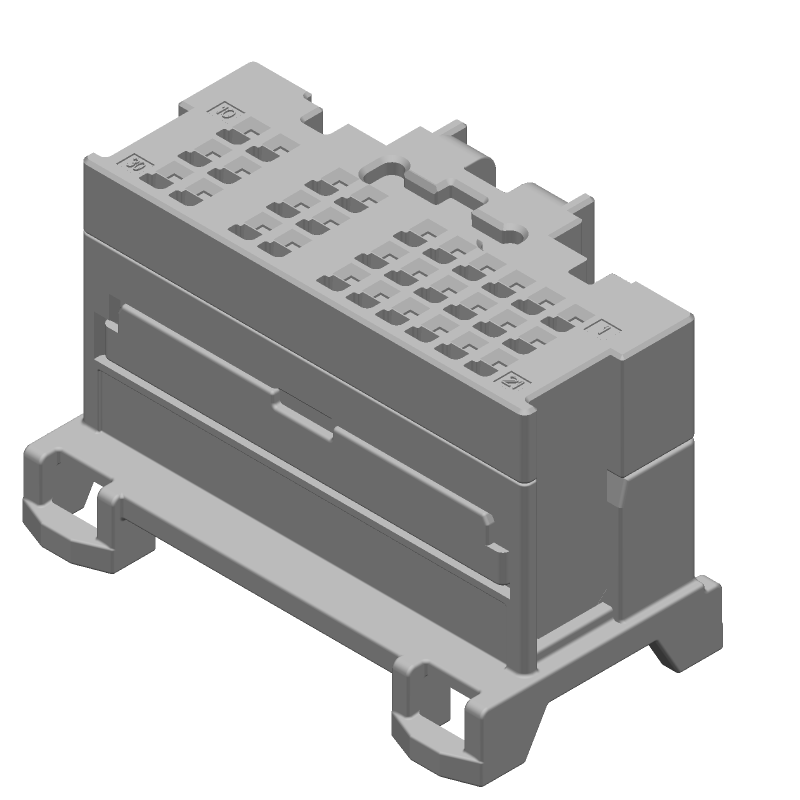

2309644-1 TE Connectivity Rack and Panel Connector
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 111 Weeks
Samacsys Manufacturer TE Connectivity
Connector Type RACK AND PANEL CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Row Spacing 0.102 inch
Mixed Contacts NO
Mounting Type CABLE
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
Panel Mount NO
Polarization Key POLARIZED
Terminal Pitch 2 mm
