Logic / Clock Drivers / 2305A-1DCGI
Datasheets
2305A-1DCGI by:

3.3V Zero Delay Clock Buffer, SOIC97/Tube

Part Details for 2305A-1DCGI by Renesas Electronics Corporation

Results Overview of 2305A-1DCGI by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

2305A-1DCGI Information

2305A-1DCGI by Renesas Electronics Corporation is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 2305A-1DCGI

Part # Distributor Description Stock Price Buy
DISTI # 3381351
element14 Asia-Pacific , 133MHZ, -40 85C RoHS: Compliant Min Qty: 1 Container: Each 605
  • 1 $0.6600
  • 10 $0.5500
$0.5500 / $0.6600 Buy Now
DISTI # 800-1274-ND
DigiKey IC ZD BUFFER 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube 495
In Stock
  • 1 $1.3200
  • 10 $0.9590
  • 97 $0.7716
  • 194 $0.7344
  • 291 $0.7157
  • 582 $0.6884
  • 1,067 $0.6684
  • 2,522 $0.6454
  • 5,044 $0.6305
$0.6305 / $1.3200 Buy Now
DISTI # 2305A-1DCGI
Avnet Americas Clock Buffer, Zero Delay, 10 MHz to 133 MHz, 5 Outputs, 3 V to 3.6 V, 8 Pins, SOIC - Rail/Tube (Alt: 2305A-1DCGI) RoHS: Compliant Min Qty: 776 Package Multiple: 97 Lead time: 12 Weeks, 0 Days Container: Tube 0
  • 1 $0.9900
$0.9900 Buy Now
DISTI # 972-2305A-1DCGI
Mouser Electronics Clock Buffer 3.3V PLL ZERO DELAY CLOCK BUFFER RoHS: Compliant 702
  • 1 $1.3200
  • 10 $0.9590
  • 25 $0.9020
  • 97 $0.7340
  • 291 $0.7150
  • 1,067 $0.6450
  • 4,074 $0.6300
$0.6300 / $1.3200 Buy Now
DISTI # 2305A-1DCGI
Avnet Silica Clock Buffer Zero Delay 10 MHz to 133 MHz 5 Outputs 3 V to 36 V 8 Pins SOIC (Alt: 2305A-1DCGI) RoHS: Compliant Min Qty: 97 Package Multiple: 97 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now

Part Details for 2305A-1DCGI

2305A-1DCGI CAD Models

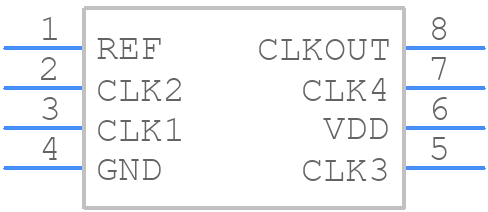

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2305A-1DCGI Part Data Attributes

Parametric Data
2305A-1DCGI Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
2305A-1DCGI Renesas Electronics Corporation 3.3V Zero Delay Clock Buffer, SOIC97/Tube
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code SOIC
Pin Count 8
Manufacturer Package Code DCG8
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer Renesas Electronics
Family 2305
Input Conditioning STANDARD
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9022 mm
Logic IC Type PLL BASED CLOCK DRIVER
Max I(ol) 0.008 A
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs
Number of Terminals 8
Number of True Outputs 4
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 0.35 ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.25 ns
Seated Height-Max 1.7526 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9116 mm
fmax-Min 133 MHz

Alternate Parts for 2305A-1DCGI

This table gives cross-reference parts and alternative options found for 2305A-1DCGI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2305A-1DCGI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IDT2305A-1HDCI Integrated Device Technology Inc Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, SOIC-8 2305A-1DCGI vs IDT2305A-1HDCI
2305A-1DCG Renesas Electronics Corporation Check for Price 3.3V Zero Delay Clock Buffer, SOIC97/Tube 2305A-1DCGI vs 2305A-1DCG
IDT2305A-1HDCG Renesas Electronics Corporation Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8 2305A-1DCGI vs IDT2305A-1HDCG
2305A-1HDCI8 Integrated Device Technology Inc Check for Price Clock Driver, PDSO8 2305A-1DCGI vs 2305A-1HDCI8
2305A-1DCGI8 Renesas Electronics Corporation Check for Price 3.3V Zero Delay Clock Buffer, SOIC0/Reel 2305A-1DCGI vs 2305A-1DCGI8
IDT2305A-1HDCGI8 Renesas Electronics Corporation Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8 2305A-1DCGI vs IDT2305A-1HDCGI8
Part Number Manufacturer Composite Price Description Compare
IDT2305A-1DCGI Renesas Electronics Corporation Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8 2305A-1DCGI vs IDT2305A-1DCGI
2305A-1HDCG8 Renesas Electronics Corporation Check for Price 3.3V Zero Delay Clock Buffer, SOIC0/Reel 2305A-1DCGI vs 2305A-1HDCG8
IDT2305A-1DC8 Integrated Device Technology Inc Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, SOIC-8 2305A-1DCGI vs IDT2305A-1DC8
2305A-1HDC Integrated Device Technology Inc Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, SOIC-8 2305A-1DCGI vs 2305A-1HDC
ICS9112AM-16LF Renesas Electronics Corporation Check for Price PLL Based Clock Driver, 9112 Series, 5 True Output(s), 0 Inverted Output(s), PDSO8 2305A-1DCGI vs ICS9112AM-16LF
IDT2305A-1HDCGI Renesas Electronics Corporation Check for Price PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8 2305A-1DCGI vs IDT2305A-1HDCGI
CY23S05SXI-1 Cypress Semiconductor Check for Price PLL Based Clock Driver, 23S Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO8, SOIC-8 2305A-1DCGI vs CY23S05SXI-1
ICS9112AM-16 Integrated Device Technology Inc Check for Price PLL Based Clock Driver, 9112 Series, 5 True Output(s), 0 Inverted Output(s), PDSO8, 0.150 INCH, MS-012, SOIC-8 2305A-1DCGI vs ICS9112AM-16
ICS9112AM-16T Integrated Device Technology Inc Check for Price PLL Based Clock Driver, 9112 Series, 5 True Output(s), 0 Inverted Output(s), PDSO8, 0.150 INCH, MS-012, SOIC-8 2305A-1DCGI vs ICS9112AM-16T
CY23S05SXC-1T Cypress Semiconductor Check for Price PLL Based Clock Driver, 23S Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO8, SOIC-8 2305A-1DCGI vs CY23S05SXC-1T

2305A-1DCGI Related Parts

2305A-1DCGI Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the package.

  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.

  • Use 0.1 μF and 10 μF capacitors in parallel, placed as close to the device as possible. Ensure the capacitors are rated for the operating voltage and have low ESR.

  • Implement ESD protection diodes (e.g., 1.5KE6.8A) between the power supply lines and ground. Ensure the diodes are rated for the operating voltage and have a low capacitance.

  • Power up the device in the following sequence: VCC, then VDD, and finally the input signals. Ensure a monotonic power-up sequence to prevent latch-up.
