2301995-3 by: TE Connectivity

(2301995-3) RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT.

Part Details for 2301995-3 by TE Connectivity

Results Overview of 2301995-3 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2301995-3 Information

2301995-3 by TE Connectivity is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2301995-3

Part # Distributor Description Stock Price Buy
DISTI # 69AH4597
Newark Conn, Rj45 Jack, 8P8C, 1X1, Cat5 Rohs Compliant: Yes |Te Connectivity 2301995-3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 212
  • 1 $7.8900
  • 10 $6.4300
  • 25 $5.8200
  • 50 $5.5900
  • 100 $5.3700
$5.3700 / $7.8900 Buy Now
DISTI # 74AJ9225
Newark Rj45 Connector, Jack, 1Port, Th Rohs Compliant: Yes |Te Connectivity 2301995-3 RoHS: Compliant Min Qty: 80 Package Multiple: 1 Date Code: 0 Container: Reel 80
  • 80 $5.8300
  • 160 $5.6900
  • 320 $5.4100
  • 480 $5.0600
$5.0600 / $5.8300 Buy Now
DISTI # A126229CT-ND
DigiKey CONN JACK 1PORT PCB Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 18303
In Stock
  • 1 $8.1500
  • 10 $6.9240
  • 25 $6.4900
  • 80 $5.9785
  • 160 $5.6932
  • 240 $5.5327
  • 400 $5.3369
  • 560 $5.2119
  • 800 $5.0825
  • 2,000 $4.7647
$4.7647 / $8.1500 Buy Now
DISTI # 2301995-3
Avnet Americas Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole Mount - Tape and Reel (Alt: 2301995-3) RoHS: Compliant Min Qty: 320 Package Multiple: 320 Lead time: 16 Weeks, 1 Days Container: Reel 0
  • 320 $4.4643
  • 640 $4.4290
  • 1,280 $3.8218
  • 1,920 $3.8021
  • 2,560 $3.7824
$3.7824 / $4.4643 Buy Now
DISTI # 571-2301995-3
Mouser Electronics Modular Connectors / Ethernet Connectors RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. RoHS: Compliant 992
  • 1 $8.1500
  • 10 $6.6400
  • 25 $6.1300
  • 50 $5.9800
  • 80 $5.9800
  • 100 $5.5300
  • 250 $5.3300
  • 500 $5.0800
  • 1,000 $4.7600
$4.7600 / $8.1500 Buy Now
DISTI # V36:1790_18536856
Arrow Electronics Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 6 Reel RoHS: Compliant Min Qty: 80 Package Multiple: 80 Lead time: 19 Weeks Date Code: 2422 Americas - 560
  • 80 $4.2270
$4.2270 Buy Now
Future Electronics RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. RoHS: Compliant pbFree: Yes Min Qty: 80 Package Multiple: 80 Lead time: 19 Weeks Container: Reel 560
Reel
  • 80 $4.4100
  • 160 $4.3700
  • 240 $4.3400
  • 320 $4.3200
  • 400 $4.2700
$4.2700 / $4.4100 Buy Now
DISTI # AMP2301995-3
Heilind Electronics RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. Americas - 0 in Stock
  • 320 $5.5971
  • 1,360 $4.8507
$4.8507 / $5.5971 Buy Now
Onlinecomponents.com RJ45 JACK INT.MAG. 10/100 LED 1x1 VERT RoHS: Compliant 1140 In Stock
  • 80 $4.3240
  • 160 $4.2490
  • 320 $4.1900
  • 560 $4.1660
  • 1,040 $4.1450
  • 2,560 $4.1240
  • 5,040 $4.1040
$4.1040 / $4.3240 Buy Now
DISTI # 82726948
Verical Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 6 Reel RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2422 Americas - 560
  • 80 $4.2270
$4.2270 Buy Now
DISTI # 82125112
Verical Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 6 Reel RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2422 Americas - 320
  • 80 $5.8589
$5.8589 Buy Now
DISTI # 83709980
Verical Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 6 Reel RoHS: Compliant Min Qty: 7 Package Multiple: 1 Americas - 9
  • 7 $11.2397
$11.2397 Buy Now
Quest Components   7
  • 1 $16.3418
  • 3 $15.2523
  • 6 $14.5260
$14.5260 / $16.3418 Buy Now
DISTI # 2301995-3
TTI Modular Connectors / Ethernet Connectors RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. Min Qty: 320 Package Multiple: 80 Container: Reel Americas - 0
  • 320 $5.8800
  • 640 $5.7700
  • 1,280 $5.1000
  • 2,560 $5.0000
$5.0000 / $5.8800 Buy Now
Future Electronics RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. Min Qty: 80 Package Multiple: 80 560
null
  • 80 $4.4100
  • 160 $4.3700
  • 240 $4.3400
  • 320 $4.3200
  • 400 $4.2700
$4.2700 / $4.4100 Buy Now
DISTI # AMP2301995-3
Interstate Connecting Components RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. 0
  • 320 $5.5971
  • 1,360 $4.8507
$4.8507 / $5.5971 Buy Now
DISTI # 000000000005602622
Sager Modular Connectors / Ethernet Connectors RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT. Min Qty: 320 0
  • 320 $5.2100
$5.2100 Buy Now
DISTI # 2301995-3
Avnet Abacus Modular Connector RJ45 Jack 1 x 1 Port 8P8C Cat5 Through Hole Mount (Alt: 2301995-3) RoHS: Compliant Min Qty: 80 Package Multiple: 80 Lead time: 18 Weeks, 0 Days Abacus - 240
Buy Now
DISTI # 2301995-3
Avnet Abacus Modular Connector RJ45 Jack 1 x 1 Port 8P8C Cat5 Through Hole Mount (Alt: 2301995-3) RoHS: Compliant Min Qty: 320 Package Multiple: 80 Lead time: 21 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 2301995-3
Avnet Asia Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole Mount (Alt: 2301995-3) RoHS: Compliant Min Qty: 320 Package Multiple: 320 Lead time: 141 Weeks, 3 Days 0
  • 320 $4.9718
  • 640 $4.9028
  • 960 $4.8356
  • 1,600 $4.7703
  • 3,200 $4.6447
  • 8,000 $4.5256
  • 16,000 $4.4125
$4.4125 / $4.9718 Buy Now
LCSC 1 Shielded Gold Copper alloy WithLED -40+85 Plugin Ethernet Connectors / Modular Connectors (RJ45 RJ11) ROHS 80
  • 1 $7.1603
  • 10 $6.1585
  • 30 $5.5490
  • 100 $5.0376
$5.0376 / $7.1603 Buy Now
Master Electronics RJ45 JACK INT.MAG. 10/100 LED 1x1 VERT RoHS: Compliant 1140 In Stock
  • 80 $4.3240
  • 160 $4.2490
  • 320 $4.1900
  • 560 $4.1660
  • 1,040 $4.1450
  • 2,560 $4.1240
  • 5,040 $4.1040
$4.1040 / $4.3240 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 80 480
  • 80 $7.3500
  • 480 $6.7800
$6.7800 / $7.3500 Buy Now

Part Details for 2301995-3

2301995-3 CAD Models

  • Part Symbol

    Part Symbol

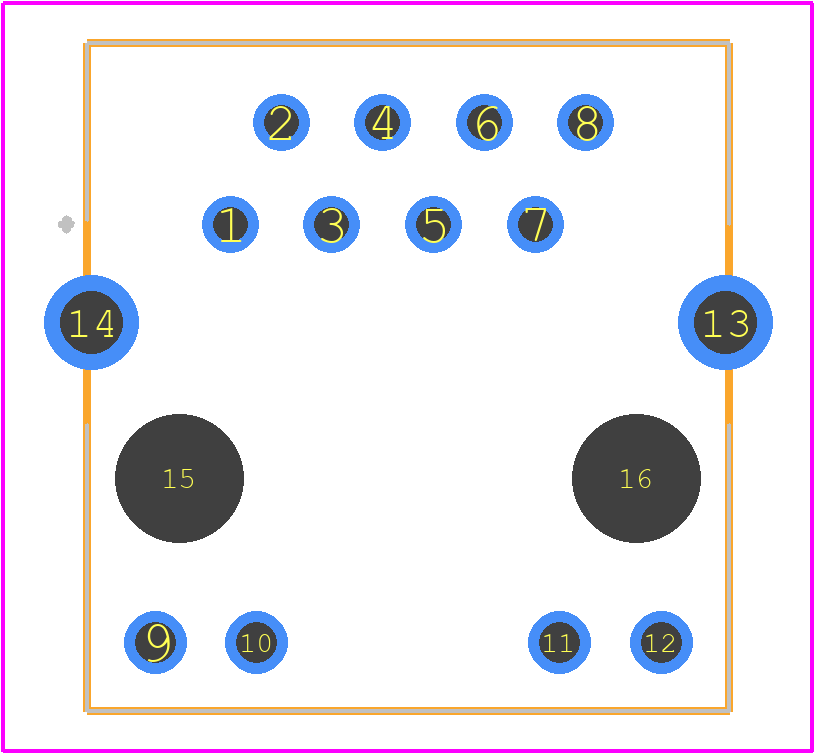

  • Footprint

    footprint

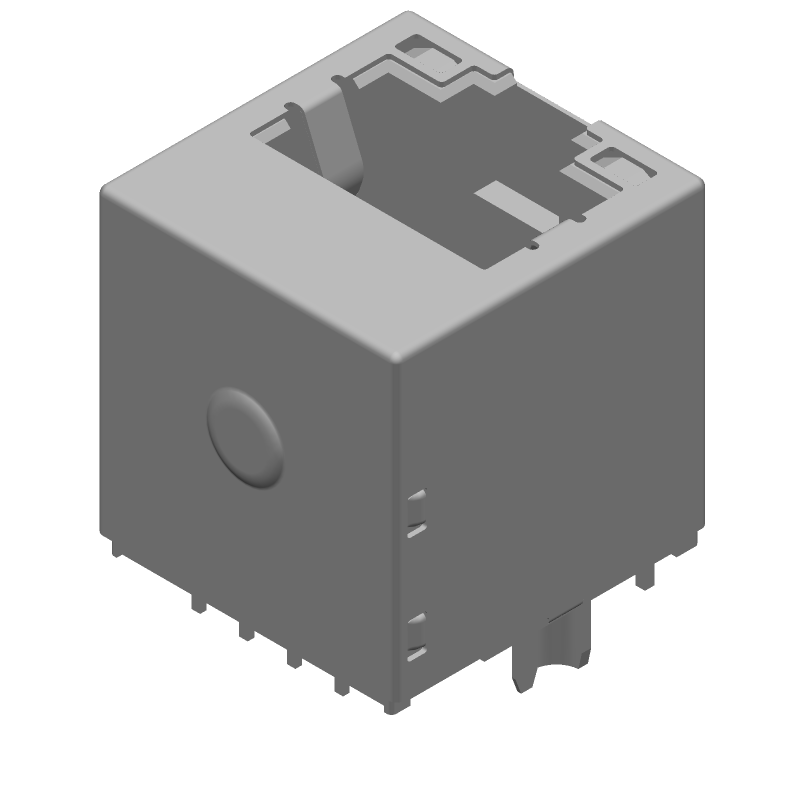

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2301995-3 Part Data Attributes

Parametric Data
2301995-3 TE Connectivity
Buy Now Datasheet
Compare Parts:
2301995-3 TE Connectivity (2301995-3) RJ45 JACK INT.MAG. 10/100 LED 1X1 VERT.
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 16 Weeks, 1 Day
Samacsys Manufacturer TE Connectivity
Additional Feature SHIELDED
Board Mounting Option BOARD LOCK
Body Breadth 0.657 inch
Body Depth 0.665 inch
Body Length 0.632 inch
Body/Shell Style JACK
Connector Type RJ CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style TELCOM, MODULAR
DIN Conformance NO
EMI Shielded YES
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LCP
MIL Conformance NO
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
Panel Mount NO
Plating Thickness 30u inch
Reference Standard UL
Shell Finish NICKEL
Shell Material BRASS
Terminal Length 0.075 inch
Termination Type SOLDER
Total Number of Contacts 8
UL Flammability Code 94V-0
