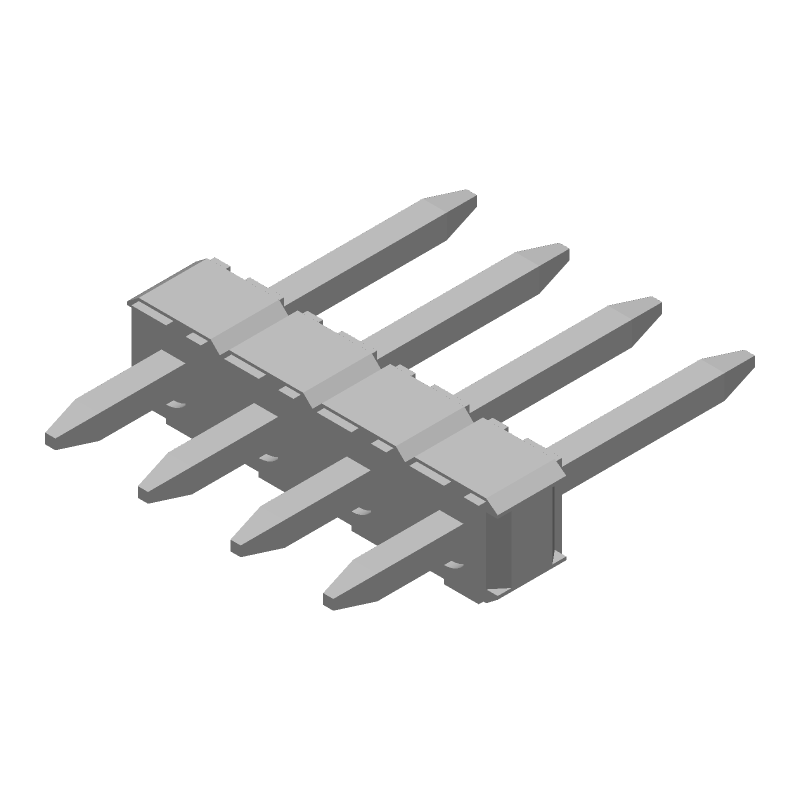

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 22-28-4040 by Molex
Results Overview of 22-28-4040 by Molex
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
22-28-4040 Information
22-28-4040 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 22-28-4040
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29X1962
|
Newark | Connector, Header, 4Pos, 1Row, 2.54Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:4Contacts, Contact Termination Type:Through Hole Straight, Product Range:Kk 254 42375 Series Rohs Compliant: Yes |Molex 22-28-4040 (Alternate Part Number: 800753616837 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2641 |
|
$0.1670 / $0.3640 | Buy Now |
|
DISTI #
538-22-28-4040
|
Mouser Electronics | Headers & Wire Housings 4P VERT HEADER Sn RoHS: Compliant | 9184 |
|
$0.1170 / $0.2900 | Buy Now |
|
DISTI #
71456358
|
RS | KK 100 Hdr Assy Bkwy 04 Ckt Tin Min Qty: 1 Package Multiple: 1 Container: Bulk | 225 |
|
$0.2110 / $0.2930 | Buy Now |
|
|
Onlinecomponents.com | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole KK® Bag RoHS: Compliant |
127399 Partner Stock |
|
$0.1061 / $0.1306 | Buy Now |
|
DISTI #
19703940
|
Verical | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole KK Bag RoHS: Compliant Min Qty: 500 Package Multiple: 1 | Americas - 127399 |
|
$0.1010 / $0.1250 | Buy Now |
|
DISTI #
87464020
|
Verical | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole KK Bag RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 2431 | Americas - 13192 |
|
$0.1022 | Buy Now |
|
DISTI #
87332559
|
Verical | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole KK Bag RoHS: Compliant Min Qty: 451 Package Multiple: 1 | Americas - 493 |
|
$0.1554 | Buy Now |
|
|
Quest Components | 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 400 |
|
$0.2745 / $0.9150 | Buy Now |
|
|
Quest Components | 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 313 |
|
$0.2250 / $0.7500 | Buy Now |
|
DISTI #
22-28-4040
|
TTI | Headers & Wire Housings 4P VERT HEADER Sn RoHS: Compliant pbFree: Pb-Free Min Qty: 45 Package Multiple: 9 Container: Each |
Americas - 378567 In Stock |
|
$0.0930 / $0.1220 | Buy Now |
Part Details for 22-28-4040
22-28-4040 CAD Models
22-28-4040 Part Data Attributes
|
|
22-28-4040
Molex
Buy Now
Datasheet
|
Compare Parts:
22-28-4040
Molex
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 23 Weeks | |
| Samacsys Manufacturer | Molex | |
| Additional Feature | SURFACE-MOUNT COMPATIBLE | |
| Body Breadth | 0.098 inch | |
| Body Depth | 0.09 inch | |
| Body Length | 0.4 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 25 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 4.8928 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 100u inch | |
| Reference Standard | UL | |
| Terminal Length | 0.455 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 4 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .556 N |
