Part Details for 20021321-00020C4LF by Amphenol Communications Solutions
Results Overview of 20021321-00020C4LF by Amphenol Communications Solutions
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
20021321-00020C4LF Information
20021321-00020C4LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 20021321-00020C4LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74AC2624
|
Newark | Receptacle, Smt, Vertical, 1.27Mm, 20Way, Pitch Spacing:1.27Mm, No. Of Contacts:20Contacts, Gender:Receptacle, Product Range:Minitek127 20021321 Series, Contact Termination Type:Surface Mount, No. Of Rows:2Rows, Contact Plating:Gold Rohs Compliant: Yes |Amphenol Communications Solutions 20021321-00020C4LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 306 |
|
$1.4600 / $1.8900 | Buy Now |
|
|
Future Electronics | Dual Row 20 Position 1.27 mm Board to Board SMT Female Socket Connector RoHS: Compliant pbFree: Yes Min Qty: 700 Package Multiple: 700 Lead time: 16 Weeks Container: Reel | 700Reel |
|
$0.9650 / $0.9900 | Buy Now |
|
|
Onlinecomponents.com | Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD T/R RoHS: Compliant |
710 In Stock |
|
$1.0420 / $1.3620 | Buy Now |
|
|
Future Electronics | Dual Row 20 Position 1.27 mm Board to Board SMT Female Socket Connector Min Qty: 700 Package Multiple: 700 |
700 null |
|
$0.9650 / $0.9900 | Buy Now |
|
DISTI #
20021321-00020C4LF
|
TME | Connector: pin strips, socket, Minitek127®, female, PIN: 20, 1.27mm Min Qty: 1 | 1320 |
|
$1.1700 / $1.6600 | Buy Now |
|
DISTI #
20021321-00020C4LF
|
IBS Electronics | RCPT SMT-20021321-00020C4LF | AMPHENOL FCI (AMPHENOL CS) 2002132100020C4LF Min Qty: 700 Package Multiple: 1 | 1410 |
|
$1.3390 / $1.6588 | Buy Now |
|
|
LCSC | SMDP1.27mm Female Headers ROHS | 9 |
|
$1.7682 / $1.8723 | Buy Now |
|
|
Master Electronics | Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD T/R RoHS: Compliant |
710 In Stock |
|
$1.0420 / $1.3620 | Buy Now |
|
|
Vyrian | Connectors | 7439 |
|
RFQ |
Part Details for 20021321-00020C4LF

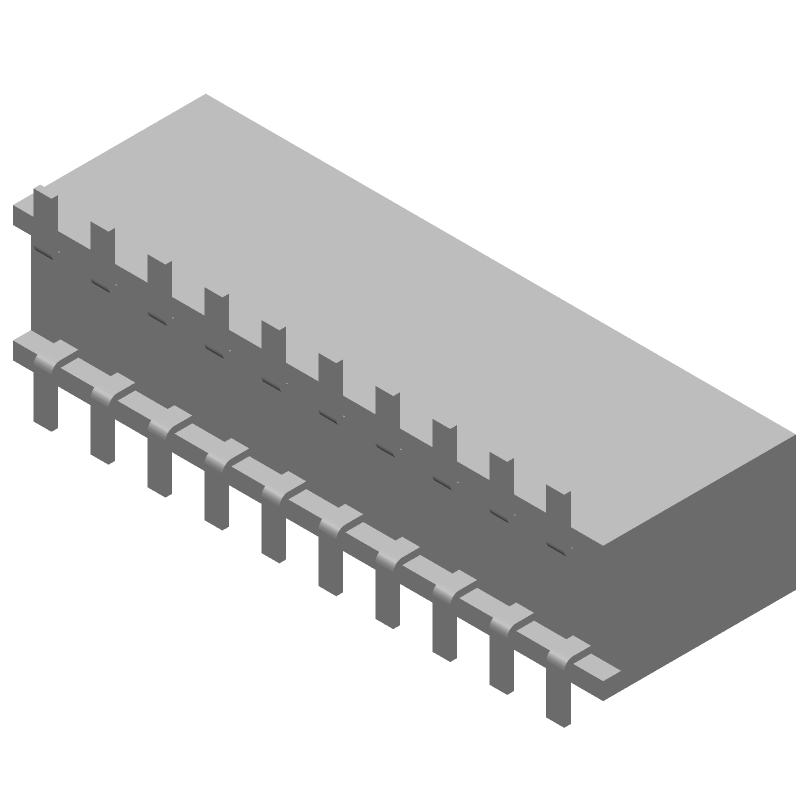

20021321-00020C4LF CAD Models
