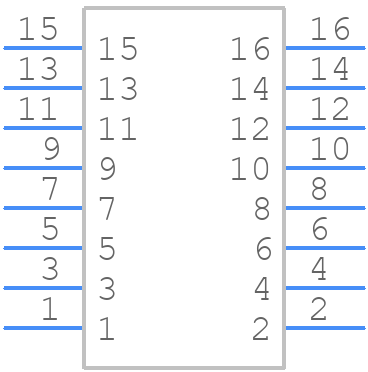

Part Symbol
-

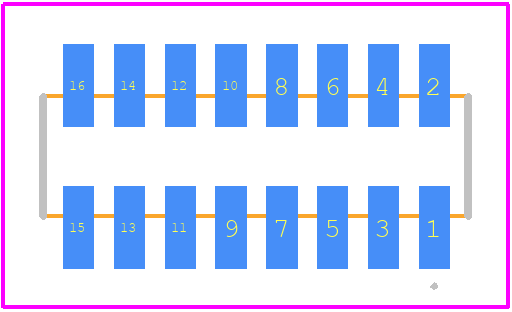

Footprint
-

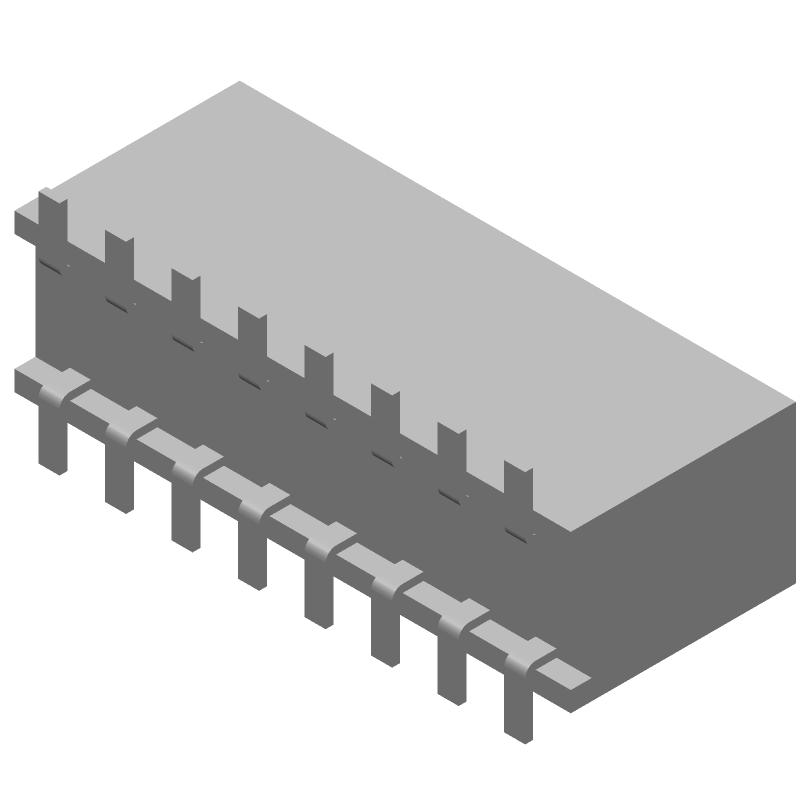

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 20021321-00016C4LF by Amphenol Communications Solutions
Results Overview of 20021321-00016C4LF by Amphenol Communications Solutions
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
20021321-00016C4LF Information
20021321-00016C4LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 20021321-00016C4LF | Amphenol Communications Solutions | Minitek127®, Board to Board connectors, PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 16 Positions, 1.27mm (0.05inch) pitch | |
| 20021321-00018D8LF | Amphenol Communications Solutions | Minitek127®, Board to Board connectors, PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 18 Positions, 1.27mm (0.05inch) pitch | |
| 20021321-00030C4LF | Amphenol Communications Solutions | PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 30 Positions, 1.27mm (0.05inch) pitch |
Price & Stock for 20021321-00016C4LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58R3201
|
Newark | Board-Board Connector, Header, 16 Position, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:16Contacts, Connector Mounting:Surface Mount, Product Range:Fci Minitek127 20021321 Series Rohs Compliant: Yes |Amphenol Communications Solutions 20021321-00016C4LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 63 |
|
$1.1900 / $1.9000 | Buy Now |
|
DISTI #
28X2686
|
Newark | Board-Board Connector, Header, 16 Position, 2Row, Full Reel, Connector Systems:Board-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:16Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy Rohs Compliant: Yes |Amphenol Communications Solutions 20021321-00016C4LF RoHS: Compliant Min Qty: 1400 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0200 / $1.1300 | Buy Now |
|
|
Future Electronics | HEADER RoHS: Compliant pbFree: Yes Min Qty: 700 Package Multiple: 700 Lead time: 16 Weeks Container: Reel | 700Reel |
|
$0.8000 / $0.8250 | Buy Now |
|
|
Onlinecomponents.com | Conn Socket Strip RCP 16 POS 1.27mm Solder ST SMD T/R RoHS: Compliant |
704 In Stock |
|
$0.8090 / $0.9400 | Buy Now |
|
|
Future Electronics | HEADER Min Qty: 700 Package Multiple: 700 |
700 null |
|
$0.8000 / $0.8250 | Buy Now |
|
DISTI #
20021321-00016C4LF
|
TME | Connector: pin strips, socket, Minitek127®, female, PIN: 16, 1.27mm Min Qty: 1 | 547 |
|
$1.0200 / $1.4800 | Buy Now |
|
DISTI #
20021321-00016C4LF
|
IBS Electronics | PCB RECEPTACLE BOARD-TO-BOARD 1.27 MM 2 ROWS 16 CONTACTS SURFACE MOUNT Min Qty: 700 Package Multiple: 1 | 1404 |
|
$1.0400 / $1.1011 | Buy Now |
|
|
LCSC | SMDP1.27mm Female Headers ROHS | 4 |
|
$1.7969 / $1.9025 | Buy Now |
|
|
Master Electronics | Conn Socket Strip RCP 16 POS 1.27mm Solder ST SMD T/R RoHS: Compliant |
704 In Stock |
|
$0.8090 / $0.9400 | Buy Now |
Part Details for 20021321-00016C4LF
20021321-00016C4LF CAD Models
20021321-00016C4LF Part Data Attributes
|
|
20021321-00016C4LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
20021321-00016C4LF
Amphenol Communications Solutions
Minitek127®, Board to Board connectors, PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 16 Positions, 1.27mm (0.05inch) pitch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.118 inch | |
| Body Depth | 0.177 inch | |
| Body Length | 0.418 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (10) OVER NICKEL (50) | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 50 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 700VAC V | |
| Durability | 100 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 2.1684 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mating Contact Row Spacing | 0.05 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 3.556 mm | |
| Plating Thickness | 10u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | UL | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 16 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .1946 N |
Alternate Parts for 20021321-00016C4LF
This table gives cross-reference parts and alternative options found for 20021321-00016C4LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 20021321-00016C4LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 20021321-00016D2LF | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle | 20021321-00016C4LF vs 20021321-00016D2LF |
| 20021321-00016C2LF | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle | 20021321-00016C4LF vs 20021321-00016C2LF |
| 20021321-00016T8LF | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE | 20021321-00016C4LF vs 20021321-00016T8LF |
| 20021321-00016C2LF | Amphenol Communications Solutions | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, | 20021321-00016C4LF vs 20021321-00016C2LF |
| 20021321-00016D4LF | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE | 20021321-00016C4LF vs 20021321-00016D4LF |
| 20021321-00016T8LF | Amphenol Communications Solutions | Check for Price | Minitek127®, Board to Board connectors, PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 16 Positions, 1.27mm (0.05inch) pitch | 20021321-00016C4LF vs 20021321-00016T8LF |
| 20021321-00016D7LF | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle | 20021321-00016C4LF vs 20021321-00016D7LF |
20021321-00016C4LF Frequently Asked Questions (FAQ)
-
The recommended torque for securing the 20021321-00016C4LF connector is typically between 0.5 to 1.5 Nm (5-15 in-lbs), but it's recommended to consult the specific application and Amphenol's guidelines for precise torque values.
-
To ensure proper mating and unmating, ensure the connector is properly aligned, and the mating surfaces are clean and free of debris. Apply gentle, consistent pressure while mating, and use a gentle rocking motion while unmating.
-
The 20021321-00016C4LF connector is designed to operate within a temperature range of -40°C to 125°C (-40°F to 257°F), but it's essential to consult the specific application and environmental conditions to ensure reliable performance.
-
Yes, the 20021321-00016C4LF connector is designed to withstand moderate vibration levels. However, it's crucial to consult Amphenol's guidelines and perform thorough testing to ensure the connector meets the specific vibration requirements of your application.
-
The recommended cable type and size for the 20021321-00016C4LF connector vary depending on the specific application. Consult Amphenol's guidelines and cable manufacturers' recommendations to ensure compatibility and optimal performance.
