20021311-00040T4LF by:

1.27mm (0.05in.) pitch, Receptacle Top entry, 40 contacts

Part Details for 20021311-00040T4LF by Amphenol Communications Solutions

Results Overview of 20021311-00040T4LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Automotive

20021311-00040T4LF Information

20021311-00040T4LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 20021311-00040T4LF

Part # Distributor Description Stock Price Buy
DISTI # 28AH8774
Newark Btb Connector, Rcpt, 40Pos, 2Row, 1.27Mm, Connector Systems:Wire-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Connector Mounting:Through Hole Mount, Product Range:Fci Minitek127 20021311 Series Rohs Compliant: Yes |Amphenol Communications Solutions 20021311-00040T4LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 66
  • 1 $1.7700
  • 10 $1.7700
  • 25 $1.7700
  • 50 $1.7700
  • 100 $1.7700
  • 250 $1.7700
  • 500 $1.7700
  • 1,000 $1.7700
$1.7700 Buy Now
Onlinecomponents.com Rectangular Connector - Receptacle - Female Socket - 40 Position - 2 Rows - 0.050" (1.27mm) Pitch - Push-Pull - Solder Termination - Through Hole. RoHS: Compliant 1770 In Stock
  • 23 $2.9500
  • 69 $2.4000
  • 253 $2.2900
  • 506 $2.1900
  • 1,012 $2.1000
  • 2,507 $2.0400
  • 5,014 $1.9900
  • 7,521 $1.9600
$1.9600 / $2.9500 Buy Now
Master Electronics Rectangular Connector - Receptacle - Female Socket - 40 Position - 2 Rows - 0.050" (1.27mm) Pitch - Push-Pull - Solder Termination - Through Hole. RoHS: Compliant 1770 In Stock
  • 23 $2.9500
  • 69 $2.4000
  • 253 $2.2900
  • 506 $2.1900
  • 1,012 $2.1000
  • 2,507 $2.0400
  • 5,014 $1.9900
  • 7,521 $1.9600
$1.9600 / $2.9500 Buy Now
Vyrian Connectors 606
RFQ

Part Details for 20021311-00040T4LF

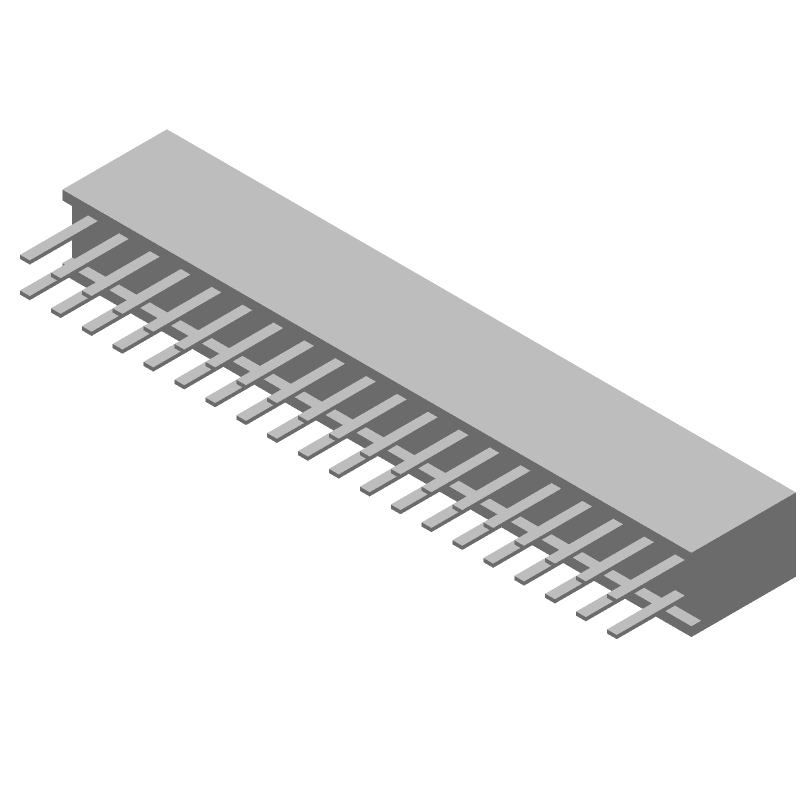

20021311-00040T4LF CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

20021311-00040T4LF Part Data Attributes

Parametric Data
20021311-00040T4LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
20021311-00040T4LF Amphenol Communications Solutions 1.27mm (0.05in.) pitch, Receptacle Top entry, 40 contacts
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 40
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Amphenol Communications Solutions
Body Breadth 0.118 inch
Body Depth 0.173 inch
Body Length 1.018 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 700VAC V
Durability 100 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 2.1684 N
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.05 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 1.27 mm
Plating Thickness 9.8u inch
Rated Current (Signal) 1 A
Reference Standard UL
Terminal Length 0.094 inch
Terminal Pitch 1.27 mm
Termination Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0
Withdrawl Force-Min .199882 N

Alternate Parts for 20021311-00040T4LF

This table gives cross-reference parts and alternative options found for 20021311-00040T4LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 20021311-00040T4LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
2-1658526-0 TE Connectivity $12.7177 609-4030LF FEM SOCKT,LEAD FREE 20021311-00040T4LF vs 2-1658526-0
55510-140TR Amphenol FCi Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug 20021311-00040T4LF vs 55510-140TR
79109-1069 Molex Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, 20021311-00040T4LF vs 79109-1069
55510-140 Amphenol FCi Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug 20021311-00040T4LF vs 55510-140
55510-040 Amphenol FCi Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug 20021311-00040T4LF vs 55510-040
20021311-00040T8LF Amphenol Communications Solutions Check for Price 1.27mm (0.05in.) pitch, Receptacle Top entry, 40 contacts 20021311-00040T4LF vs 20021311-00040T8LF
79109-1119 Molex Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, 20021311-00040T4LF vs 79109-1119
RSM-120-02-SM-D Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, 20021311-00040T4LF vs RSM-120-02-SM-D
RSM-120-02-T-D-TR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, 20021311-00040T4LF vs RSM-120-02-T-D-TR
20021311-00040T8LF Amphenol FCi Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE 20021311-00040T4LF vs 20021311-00040T8LF
