Part Details for 2-534998-4 by TE Connectivity

Results Overview of 2-534998-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Computing and Data Storage Electronic Manufacturing

2-534998-4 Information

2-534998-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2-534998-4

Part # Distributor Description Stock Price Buy
Quest Components BOARD CONNECTOR, 48 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, PLUG 1288
  • 1 $6.0000
  • 271 $3.3000
  • 607 $3.0000
$3.0000 / $6.0000 Buy Now
DISTI # 2-534998-4
Avnet Abacus (Alt: 2-534998-4) RoHS: Not Compliant Min Qty: 540 Package Multiple: 9 Lead time: 8 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 2-534998-4

2-534998-4 Part Data Attributes

Parametric Data
2-534998-4 TE Connectivity
Buy Now Datasheet
Compare Parts:

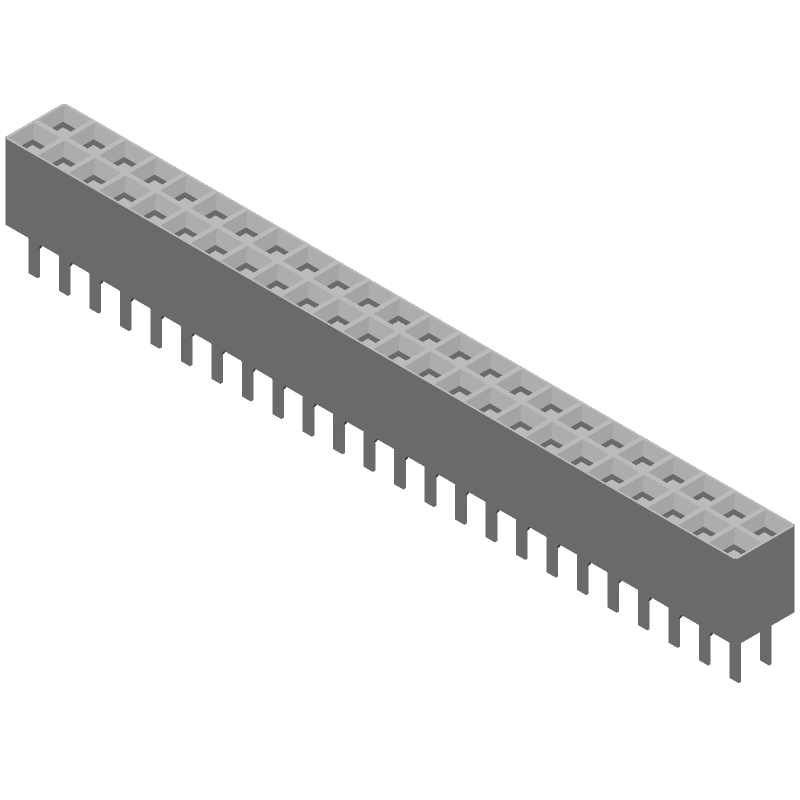

2-534998-4 TE Connectivity 48 MODIV VRT DR CE 100/125
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer TE Connectivity
Additional Feature LOW PROFILE
Body Breadth 0.24 inch
Body Depth 0.198 inch
Body Length 2.4 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 12 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 750VAC V
Durability 200 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 1.668 N
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
MIL Conformance NO
Mains Connector Rating 2A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 30u inch
Rated Current (Signal) 2 A
Reference Standard CSA, LR, U
Terminal Length 0.125 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 48
UL Flammability Code 94V-0
Withdrawl Force-Min .278 N

Alternate Parts for 2-534998-4
