Connectors / Headers and Edge Type Connectors / 2-173983-4
Datasheets
2-173983-4 by: TE Connectivity

AMP CT MT AMP-IN HDR-H YEL 4P

Part Details for 2-173983-4 by TE Connectivity

Results Overview of 2-173983-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming Automotive

2-173983-4 Information

2-173983-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2-173983-4

Part # Distributor Description Stock Price Buy
DISTI # 2977883
Farnell CONNECTOR, HEADER, 4POS, 1ROW, 2MM RoHS: Compliant Min Qty: 150 Lead time: 1 Weeks, 2 Days Container: Each 968
  • 150 $0.6919
  • 450 $0.6056
$0.6056 / $0.6919 Buy Now
DISTI # A123146-ND
DigiKey CONN WIRE IDC 4P 26-28AWG PCB RA Min Qty: 1 Lead time: 11 Weeks Container: Tray 19508
In Stock
  • 1 $0.5500
  • 10 $0.4710
  • 290 $0.3711
  • 580 $0.3534
  • 1,160 $0.3365
  • 5,220 $0.3026
  • 10,150 $0.2959
$0.2959 / $0.5500 Buy Now
DISTI # 2-173983-4
Avnet Americas Conn IDC Connector HDR 4 POS 2mm IDT RA Cable Mount Tray - Trays (Alt: 2-173983-4) RoHS: Compliant Min Qty: 19720 Package Multiple: 19720 Lead time: 8 Weeks, 3 Days Container: Tray 0
  • 19,720 $0.2891
  • 39,440 $0.2876
  • 78,880 $0.2862
  • 118,320 $0.2847
  • 157,760 $0.2832
$0.2832 / $0.2891 Buy Now
DISTI # 571-2-173983-4
Mouser Electronics Headers & Wire Housings AMP CT MT AMP-IN HDR H YEL 4P RoHS: Compliant 17638
  • 1 $0.5200
  • 10 $0.4430
  • 290 $0.3330
  • 1,160 $0.3160
  • 2,610 $0.2950
$0.2950 / $0.5200 Buy Now
DISTI # 73775127
RS AMP CT MT AMP-IN HDR-H YEL 4P, Board-In Connectors Min Qty: 19720 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 19,720 $0.7700
  • 39,440 $0.7300
  • 78,880 $0.7100
$0.7100 / $0.7700 RFQ
TE Connectivity AMP CT MT AMP-IN HDR-H YEL 4P PCB Connector Type: PCB Mount One-Piece IDC Connector PCB Mount Orientation: Horizontal Connector System: Wire-to-Board Number of Positions: 4 Centerline (Pitch): .079 in PCB Mount One-Piece IDC Connector Horizontal Wire-to-Board 4 | Board-In Connector | Part Number: 2-173983-4 | Internal Number: 2-173983-4 | .079" | TE Connectivity RoHS: Compliant Min Qty: 1 19508
  • 1 $0.6400
  • 50 $0.5800
  • 100 $0.5700
  • 250 $0.5500
  • 500 $0.5300
  • 1,000 $0.5200
$0.5200 / $0.6400 Buy Now
DISTI # AMP2-173983-4
Heilind Electronics AMP CT MT AMP-IN HDR-H YEL 4P Americas - 0 in Stock
  • 19,720 $0.3533
  • 21,170 $0.3481
$0.3481 / $0.3533 Buy Now
Onlinecomponents.com AMP CT MT AMP-IN HDR-H YEL 4P RoHS: Compliant 1210 Partner Stock
  • 1 $0.9450
  • 1,160 $0.8460
  • 2,610 $0.8330
  • 4,930 $0.8210
  • 9,860 $0.4345
  • 14,790 $0.3058
  • 19,720 $0.8590
  • 19,720 $0.2997
$0.2997 / $0.9450 Buy Now
DISTI # 14576577
Verical Conn IDC Connector HDR 4 POS 2mm Solder RA Side Entry Thru-Hole Box RoHS: Compliant Min Qty: 169 Package Multiple: 1 Americas - 1210
  • 169 $0.3700
$0.3700 Buy Now
DISTI # 2-173983-4
TTI Headers & Wire Housings AMP CT MT AMP-IN HDR H YEL 4P Min Qty: 19720 Package Multiple: 290 Container: Tray Americas - 0
  • 19,720 $0.3640
$0.3640 Buy Now
DISTI # 2-173983-4
IBS Electronics CONN IDC CONNECTOR HDR 4 POS 2MM SOLDER RA THRU-HOLE AUTOMOTIVE TRAY Min Qty: 250 Package Multiple: 1 1210
  • 250 $0.3688
  • 700 $0.5250
  • 50,000 $0.2938
  • 100,000 $0.2838
  • 250,000 $0.2575
  • 500,000 $0.2300
  • 750,000 $0.2137
  • 1,000,000 $0.2025
  • 2,000,000 $0.2025
$0.2025 / $0.5250 Buy Now
DISTI # AMP2-173983-4
Interstate Connecting Components AMP CT MT AMP-IN HDR-H YEL 4P 0
  • 19,720 $0.3533
  • 21,170 $0.3481
$0.3481 / $0.3533 Buy Now
DISTI # 000000000000840579
Sager Headers & Wire Housings AMP CT MT AMP-IN HDR H YEL 4P Min Qty: 19720 0
  • 19,720 $0.3945
$0.3945 Buy Now
DISTI # 2-173983-4
Avnet Abacus Conn IDC Connector HDR 4 POS 2mm IDT RA Cable Mount Tray (Alt: 2-173983-4) RoHS: Compliant Min Qty: 19720 Package Multiple: 19720 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 2-173983-4
Avnet Abacus Conn IDC Connector HDR 4 POS 2mm IDT RA Cable Mount Tray (Alt: 2-173983-4) RoHS: Compliant Min Qty: 290 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Abacus - 0
Buy Now
Cytech Systems Limited   1450
RFQ
DISTI # 2-173983-4
FDH Electronics Placeholder Min Qty: 1 5
Buy Now RFQ
Master Electronics AMP CT MT AMP-IN HDR-H YEL 4P RoHS: Compliant 1210 Partner Stock
  • 1 $0.9450
  • 1,160 $0.8460
  • 2,610 $0.8330
  • 4,930 $0.8210
  • 9,860 $0.4345
  • 14,790 $0.3058
  • 19,720 $0.8590
  • 19,720 $0.2997
$0.2997 / $0.9450 Buy Now

Part Details for 2-173983-4

2-173983-4 CAD Models

  • Part Symbol

    Part Symbol

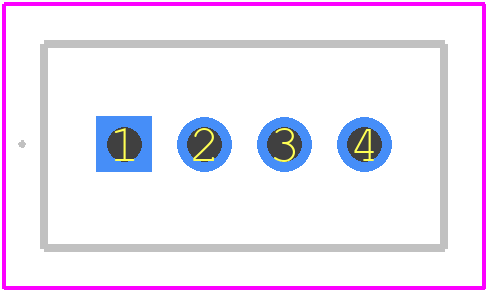

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2-173983-4 Part Data Attributes

Parametric Data
2-173983-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-173983-4 TE Connectivity AMP CT MT AMP-IN HDR-H YEL 4P
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 8 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Additional Feature SOLDERED DIRECTLY TO THE BOARD
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth 0.201 inch
Body Depth 0.157 inch
Body Length 0.394 inch
Body/Shell Style PLUG
Cable Types DISCRETE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color CREAM-YELL
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 2A
Mating Contact Pitch 0.079 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 W/STRAIN RELIEF
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -30 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 39.37u inch
Polarization Key POLARIZED
Rated Current (Signal) 2 A
Rated Voltage 125 V
Reference Standard CSA, LR, U
Terminal Length 0.138 inch
Terminal Pitch 2 mm
Termination Type SOLDER
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for 2-173983-4

This table gives cross-reference parts and alternative options found for 2-173983-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2-173983-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
2842102-4 TE Connectivity $0.1218 Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Black Insulator 2-173983-4 vs 2842102-4
2842114-4 TE Connectivity $0.6042 Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Black Insulator 2-173983-4 vs 2842114-4
2842103-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Black Insulator 2-173983-4 vs 2842103-4
2842112-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Black Insulator 2-173983-4 vs 2842112-4
2842107-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 2-173983-4 vs 2842107-4
2355122-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 2-173983-4 vs 2355122-4
2355201-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 2-173983-4 vs 2355201-4
4-172212-4 TE Connectivity Check for Price 4P EI W-W CAP HSG BLUE 2-173983-4 vs 4-172212-4
2-292157-4 TE Connectivity Check for Price CT RELAY W/COMMONING BAR 4P NA 2-173983-4 vs 2-292157-4
2355195-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 2-173983-4 vs 2355195-4

2-173983-4 Related Parts

2-173983-4 Frequently Asked Questions (FAQ)

  • The recommended torque value for the 2-173983-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.

  • Yes, the 2-173983-4 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.

  • Yes, the 2-173983-4 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 ingress protection standards.

  • The 2-173983-4 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.

  • Yes, the 2-173983-4 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.
