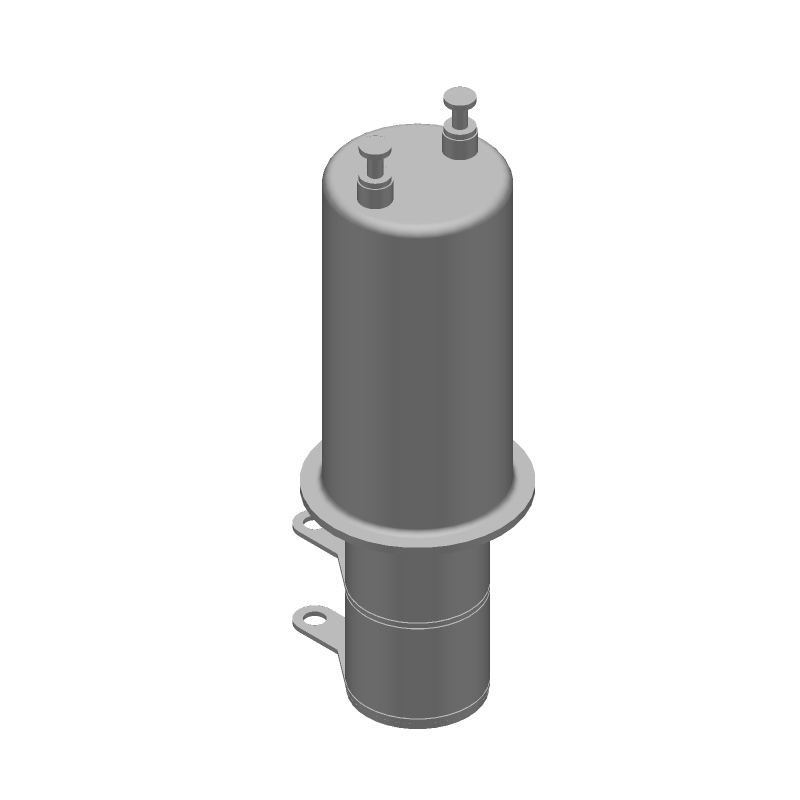

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2-1618239-4 by TE Connectivity
Results Overview of 2-1618239-4 by TE Connectivity
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2-1618239-4 Information
2-1618239-4 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 2-1618239-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | K41A834=RELAY, VACUUM, SPST-NO RoHS: Compliant |
6 In Stock |
|
$412.8700 / $432.7300 | Buy Now |
|
DISTI #
2-1618239-4
|
TTI | General Purpose Relays K41A834 Min Qty: 3 Package Multiple: 1 Container: Each | Americas - 0 |
|
$440.8000 | Buy Now |
|
|
Master Electronics | K41A834=RELAY, VACUUM, SPST-NO RoHS: Compliant |
6 In Stock |
|
$412.8700 / $432.7300 | Buy Now |
Part Details for 2-1618239-4
2-1618239-4 CAD Models
2-1618239-4 Part Data Attributes
|
|
2-1618239-4
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1618239-4
TE Connectivity
POWER/SIGNAL RELAY, SPST, MOMENTARY, 26.5VDC (COIL), 30A (CONTACT), PANEL MOUNT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.41.00.50 | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | RF RATED | |
| Coil Resistance | 290 Ω | |
| Coil Voltage(DC)-Max | 26.5 V | |
| Contact Current(AC)-Max | 30 A | |
| Contact Current(DC)-Max | 30 A | |
| Contact Voltage(DC)-Max | 5 V | |
| Contact/Output Supply Type | AC/DC | |
| Mounting Feature | PANEL MOUNT | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM A | |
| Relay Function | SPST-NO | |
| Relay Type | POWER/SIGNAL RELAY | |
| Surface Mount | NO | |
| Termination Type | SOLDER/QUICK CONNECT |
