2-1617072-2 Information
2-1617072-2 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 2-1617072-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
36AC1048
|
Newark | Low Signal Relays-Pcb Dpdt 2A 26.5Vdc H-Perform |Amp Te Connectivity 2-1617072-2 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$301.0800 / $315.9500 | Buy Now |
|
DISTI #
2-1617072-2
|
Avnet Americas | - Bulk (Alt: 2-1617072-2) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 41 Weeks, 6 Days Container: Bulk | 0 |
|
$230.4000 / $256.1426 | Buy Now |
|
DISTI #
AMP2-1617072-2
|
Heilind Electronics | 3SBC1503A2 = M39016/13-057L | Americas - 0 in Stock |
|
Buy Now | |
|
|
Onlinecomponents.com | Power Relay - DPDT - 26.5 VDC - 2 A - 3SBC Series - Through Hole - Non Latching. |
50 In Stock 50 On Order |
|
$300.5500 / $369.5500 | Buy Now |
|
DISTI #
88109085
|
Verical | Signal Relay 26.5VDC 2A DPDT(15.49x7.87x8.13)mm THT RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2036 | Americas - 8 |
|
$402.2192 / $472.1739 | Buy Now |
|
DISTI #
2-1617072-2
|
TTI | Low Signal Relays - PCB 3SBC1503A2 Min Qty: 1 Package Multiple: 1 Container: Each |
Americas - 54 In Stock |
|
$240.0000 / $282.3600 | Buy Now |
|
DISTI #
2-1617072-2
|
IBS Electronics | 2-1617072-2 , TE Connectivity / AMP Min Qty: 1 Package Multiple: 1 | 8 |
|
$221.3250 / $339.1000 | Buy Now |
|
DISTI #
2-1617072-2
|
IBS Electronics | ELECTROMECHANICAL RELAY 26.5VDC 1.35KOHM 2A DPDT THT MILITARY RELAY Min Qty: 10 Package Multiple: 1 | 0 |
|
$342.6020 / $349.9730 | Buy Now |
|
DISTI #
AMP2-1617072-2
|
Interstate Connecting Components | 3SBC1503A2 = M39016/13-057L | 0 |
|
Buy Now | |
|
|
Powell Electronics | FIFTH SIZE, BC/CC Min Qty: 1 | 24 |
|
$498.6800 / $872.0000 | Buy Now |
Part Details for 2-1617072-2

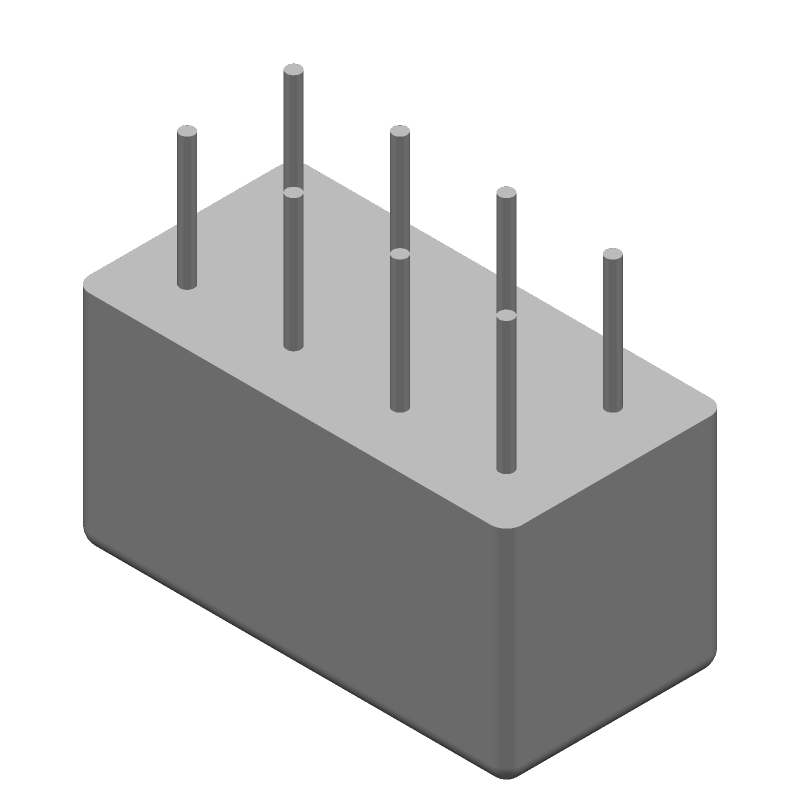

2-1617072-2 CAD Models
2-1617072-2 Part Data Attributes
|
|
2-1617072-2
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1617072-2
TE Connectivity
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.02A (COIL), 26.5VDC (COIL), 520mW (COIL), 2A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Height | 8.13 mm | |
| Coil Current(DC)-Max | 0.02 A | |
| Coil Power | 520 mW | |
| Coil Resistance | 1350 Ω | |
| Coil Voltage(DC)-Max | 26.5 V | |
| Coil/Input Supply Type | DC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 2 A | |
| Contact/Output Supply Type | AC/DC | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Relay Action | MOMENTARY | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT-CO | |
| Relay Type | POWER/SIGNAL RELAY | |
| Sealing | HERMETICALLY SEALED | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
