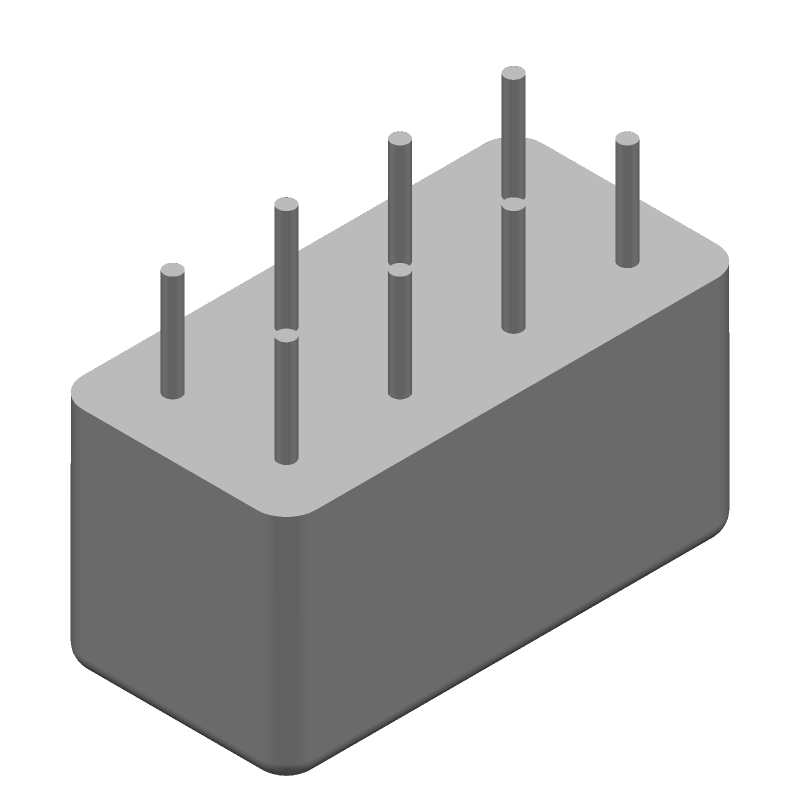

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2-1617038-2 by TE Connectivity
Results Overview of 2-1617038-2 by TE Connectivity
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
2-1617038-2 Information
2-1617038-2 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 2-1617038-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
36AC1040
|
Newark | Industrial Relays Hmb1201K01P |Amp Te Connectivity 2-1617038-2 RoHS: Not Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$250.9100 / $253.3100 | Buy Now |
|
DISTI #
2-1617038-2
|
Avnet Americas | - Bag (Alt: 2-1617038-2) RoHS: Not Compliant Min Qty: 15 Package Multiple: 5 Lead time: 38 Weeks, 2 Days Container: Bag | 0 |
|
$109.0066 / $179.0000 | Buy Now |
|
DISTI #
650-2-1617038-2
|
Mouser Electronics | Industrial Relays HMB1201K01P | 0 |
|
$212.5800 / $227.7800 | Order Now |
|
DISTI #
AMP2-1617038-2
|
Heilind Electronics | HMB1201K01P = M39016/22-009P | Americas - 0 in Stock |
|
Buy Now | |
|
|
Onlinecomponents.com | HMB1201K01P = M39016/22-009P RoHS: Compliant |
15 In Stock |
|
$174.9800 / $366.5000 | Buy Now |
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
|
Quest Components | 1 |
|
$175.5000 | Buy Now | |
|
DISTI #
2-1617038-2
|
TTI | Industrial Relays HMB1201K01P Min Qty: 1 Package Multiple: 1 Container: Each |
Americas - 81 In Stock |
|
$226.1000 / $267.2400 | Buy Now |
|
DISTI #
AMP2-1617038-2
|
Interstate Connecting Components | HMB1201K01P = M39016/22-009P | 0 |
|
Buy Now | |
|
DISTI #
000000000003023922
|
Sager | Industrial Relays HMB1201K01P Min Qty: 15 | 0 |
|
$126.9700 / $208.8300 | Buy Now |
Part Details for 2-1617038-2
2-1617038-2 CAD Models
2-1617038-2 Part Data Attributes
|
|
2-1617038-2
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1617038-2
TE Connectivity
POWER/SIGNAL RELAY
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TE Connectivity | |
| Coil Power | 1003 mW | |
| Coil Resistance | 700 Ω | |
| Coil Voltage(DC)-Max | 26.5 V | |
| Coil/Input Supply Type | DC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 2 A | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Relay Action | MOMENTARY | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT-CO | |
| Relay Type | POWER/SIGNAL RELAY | |
| Sealing | HERMETICALLY SEALED | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
2-1617038-2 Frequently Asked Questions (FAQ)
-
The recommended torque value for the 2-1617038-2 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
-
Yes, the 2-1617038-2 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
-
Yes, the 2-1617038-2 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 and IP69K ingress protection ratings.
-
The 2-1617038-2 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
-
Yes, the 2-1617038-2 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products and accessories for various applications.
