2-1586039-2 by: TE Connectivity

22P VAL-U-LOK VRT HDR W/P V2

Part Details for 2-1586039-2 by TE Connectivity

Results Overview of 2-1586039-2 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2-1586039-2 Information

2-1586039-2 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2-1586039-2

Part # Distributor Description Stock Price Buy
DISTI # 12H2860
Newark 22P Val-U-Lok Vrt Hdr W/P V2 Rohs Compliant: Yes |Amp Te Connectivity 2-1586039-2 RoHS: Compliant Min Qty: 1050 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $0.9830
  • 2,500 $0.9490
$0.9490 / $0.9830 Buy Now
DISTI # A30678-ND
DigiKey CONN HEADER VERT 22POS 4.2MM Min Qty: 1 Lead time: 26 Weeks Container: Tray 431
In Stock
  • 1 $0.8700
  • 10 $0.7100
  • 105 $0.6535
$0.6535 / $0.8700 Buy Now
DISTI # 2-1586039-2
Avnet Americas Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port - Trays (Alt: 2-1586039-2) RoHS: Compliant Min Qty: 1050 Package Multiple: 1050 Lead time: 24 Weeks, 1 Days Container: Tray 0
RFQ
DISTI # 70041403
RS Connector Header, Vertical, 22-Position, Male Pin, Square, Tin, Val-U-Lok Series Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk 890
  • 1 $0.5100
$0.5100 Buy Now
Onlinecomponents.com 22P VAL-U-LOK VRT HDR W/P V2 RoHS: Compliant 384 In Stock
  • 25 $0.5670
  • 50 $0.5260
  • 100 $0.5080
  • 263 $0.4999
  • 525 $0.4924
  • 788 $0.4850
  • 1,050 $0.4777
$0.4777 / $0.5670 Buy Now
DISTI # 51504573
Verical Conn Wire to Board HDR 22Power POS 4.2mm Solder ST Thru-Hole Tray RoHS: Compliant Min Qty: 100 Package Multiple: 25 Date Code: 1310 Americas - 375
  • 100 $0.6598
  • 100 $0.6835
  • 275 $0.6499
  • 525 $0.6401
$0.6401 / $0.6835 Buy Now
DISTI # 2-1586039-2
IBS Electronics CONN POWER HDR 22 POS 4.2MM SOLDER ST THRU-HOLE 22 TERMINAL 1 PORT TRAY Min Qty: 25 Package Multiple: 1 384
  • 25 $0.7371
  • 50 $0.6838
  • 100 $0.6604
  • 263 $0.6499
  • 525 $0.6401
  • 788 $0.6305
  • 1,050 $0.6210
$0.6210 / $0.7371 Buy Now
DISTI # 000000000001007239
Sager Headers & Wire Housings VERT HDR W/PEGS 22P 0
Buy Now
DISTI # 2-1586039-2
Avnet Abacus Conn Power HDR 22 POS 42mm Solder ST ThruHole 22 Terminal 1 Port (Alt: 2-1586039-2) RoHS: Compliant Min Qty: 1050 Package Multiple: 1050 Abacus - 0
Buy Now
Master Electronics 22P VAL-U-LOK VRT HDR W/P V2 RoHS: Compliant 384 In Stock
  • 25 $0.5670
  • 50 $0.5260
  • 100 $0.5080
  • 263 $0.4999
  • 525 $0.4924
  • 788 $0.4850
  • 1,050 $0.4777
$0.4777 / $0.5670 Buy Now

Part Details for 2-1586039-2

2-1586039-2 Part Data Attributes

Parametric Data
2-1586039-2 TE Connectivity
Buy Now Datasheet
Compare Parts:

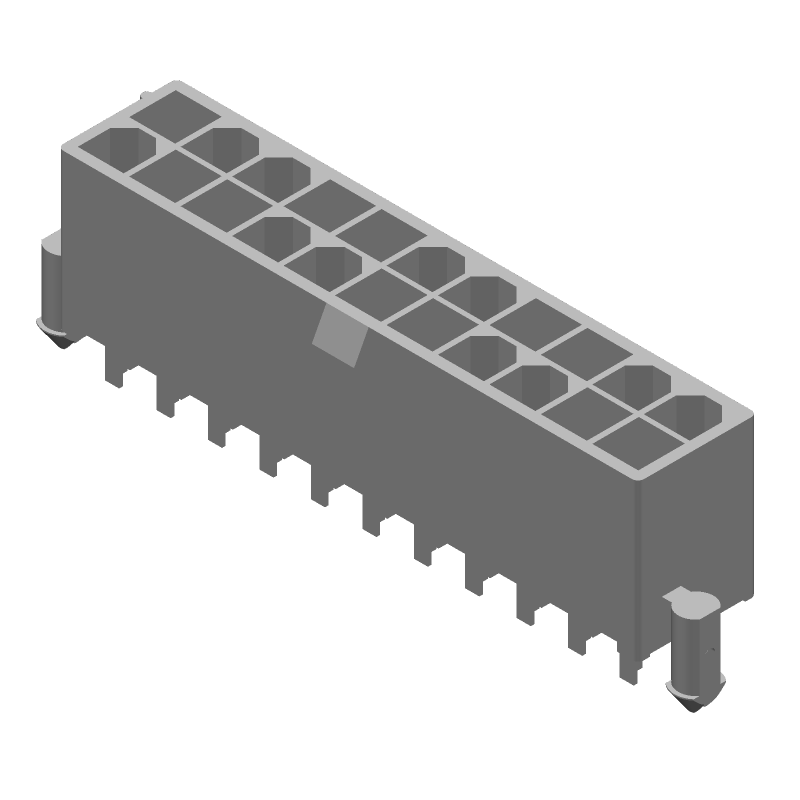

2-1586039-2 TE Connectivity 22P VAL-U-LOK VRT HDR W/P V2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 24 Weeks, 1 Day
Samacsys Manufacturer TE Connectivity
Additional Feature VAL-U-LOK
Board Mounting Option BOARD LOCK
Body Breadth 0.386 inch
Body Depth 0.504 inch
Body Length 1.866 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 50 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color NATURAL
Insulator Material POLYAMIDE66
MIL Conformance NO
Mains Connector Rating 9A
Mating Contact Pitch 0.165 inch
Mating Contact Row Spacing 0.165 inch
Mixed Contacts NO
Mounting Option 1 GUIDE SLOT
Mounting Option 2 LATCHING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 5.5118 mm
Panel Mount NO
Plating Thickness 80u inch
Polarization Key POLARIZED
Rated Current (Signal) 9 A
Reference Standard CSA, UL
Terminal Length 0.138 inch
Terminal Pitch 4.2 mm
Termination Type SOLDER
Total Number of Contacts 22
UL Flammability Code 94V-2
