Switches / Pushbutton Switches / 2-1571990-9
Datasheets

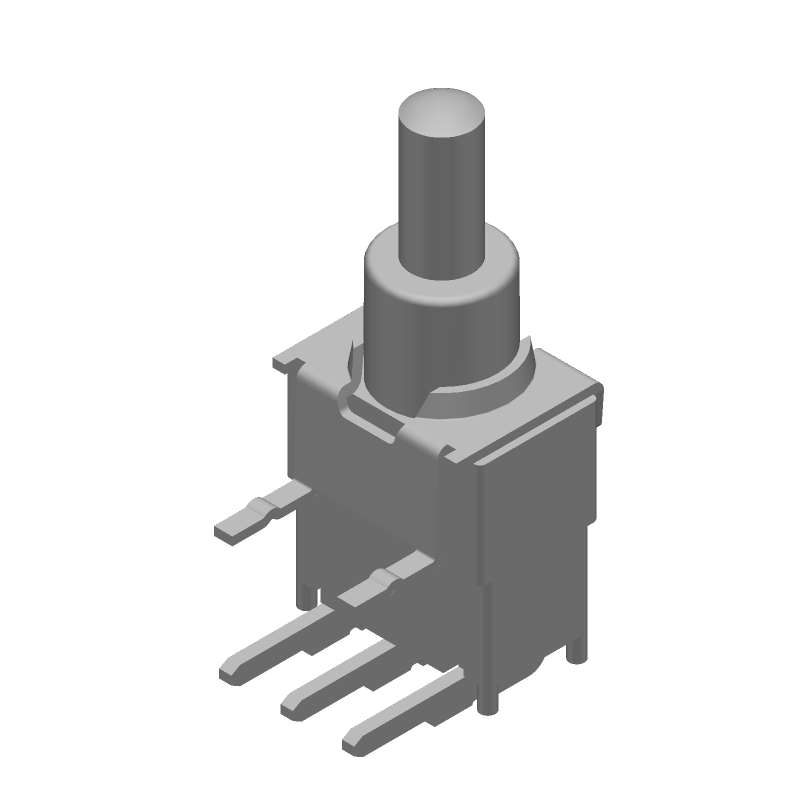

2-1571990-9 by: TE Connectivity

TSPDF11FGRA004

Part Details for 2-1571990-9 by TE Connectivity

Results Overview of 2-1571990-9 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2-1571990-9 Information

2-1571990-9 by TE Connectivity is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 2-1571990-9

Part # Distributor Description Stock Price Buy
DISTI # 2-1571990-9-ND
DigiKey SWITCH PUSHBUTTON SPDT 0.4VA 20V Lead time: 99 Weeks Container: Bulk Temporarily Out of Stock
Buy Now
DISTI # 2-1571990-9
Avnet Americas - Bulk (Alt: 2-1571990-9) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 111 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # 72032533
RS Switch, Tspdf11Fgra004 Min Qty: 500 Package Multiple: 1 Container: Bulk 0
  • 500 $14.4500
  • 1,000 $13.7300
  • 2,000 $13.3000
$13.3000 / $14.4500 RFQ
DISTI # 2-1571990-9
Avnet Abacus (Alt: 2-1571990-9) RoHS: Compliant Min Qty: 500 Package Multiple: 25 Lead time: 52 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 2-1571990-9

2-1571990-9 Part Data Attributes

Parametric Data
2-1571990-9 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-1571990-9 TE Connectivity TSPDF11FGRA004
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.31
Samacsys Manufacturer TE Connectivity
Actuator Color BLACK
Actuator Material POLYETHYLENE
Actuator Type FLUSH TYPE
Body Length or Diameter 9.19 mm
Center Contact Plating GOLD OVER NICKEL
Contact (AC) Max Rating R Load 0.02A@20VAC
Contact Current(AC)-Max 0.4 A
Contact Current(DC)-Max 0.4 A
Contact (DC) Max Rating R Load 0.02A@20VDC
Contact Function ON-(ON)
Contact Voltage(AC)-Max 20 V
Contact Voltage(DC)-Max 20 V
Electrical Life 60000 Cycle(s)
End Contact Material COPPER ALLOY
Housing Material POLYETHYLENE
Illumination NON-ILLUMINATED
Mounting Feature PANEL MOUNT
Number of Independent Keys 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
Packing Method BULK
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPDT
Switch Type PUSHBUTTON SWITCH
Termination Type SOLDER

Alternate Parts for 2-1571990-9

This table gives cross-reference parts and alternative options found for 2-1571990-9. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2-1571990-9, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TPB11FGRA004 TE Connectivity $1.0000 Pushbutton Switch, DPST, Off-(on), 0.4A, 20VDC, Wire Terminal, Panel Mount 2-1571990-9 vs TPB11FGRA004
5-1437572-8 TE Connectivity $10.1957 PUSHBUTTON SWITCH, SPDT, MOMENTARY, THROUGH HOLE-RIGHT ANGLE 2-1571990-9 vs 5-1437572-8
1-1825096-0 TE Connectivity $11.3917 TPA11FGRA004 2-1571990-9 vs 1-1825096-0
TPD11FGRA2 TE Connectivity $12.0005 PUSHBUTTON SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE 2-1571990-9 vs TPD11FGRA2
3-1437571-9 TE Connectivity $8.8311 Pushbutton Switch, SPDT, Momentary, 0.4A, 20VDC, Solder Terminal, Panel Mount 2-1571990-9 vs 3-1437571-9
3-1437571-8 TE Connectivity Check for Price Pushbutton Switch, SPDT, Momentary, 0.4A, 20VDC, Solder Terminal, Panel Mount 2-1571990-9 vs 3-1437571-8
3-1437571-6 TE Connectivity Check for Price PUSHBUTTON SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE 2-1571990-9 vs 3-1437571-6
2-1825097-6 TE Connectivity Check for Price TPBF11FGRAES004 2-1571990-9 vs 2-1825097-6
9-1437571-9 TE Connectivity Check for Price Pushbutton Switch, SPDT, Momentary, 0.4A, 20VDC, 5 PCB Hole Cnt, Solder Terminal, Panel Mount 2-1571990-9 vs 9-1437571-9
TPD11FGRA0 TE Connectivity Check for Price PUSHBUTTON SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE 2-1571990-9 vs TPD11FGRA0
