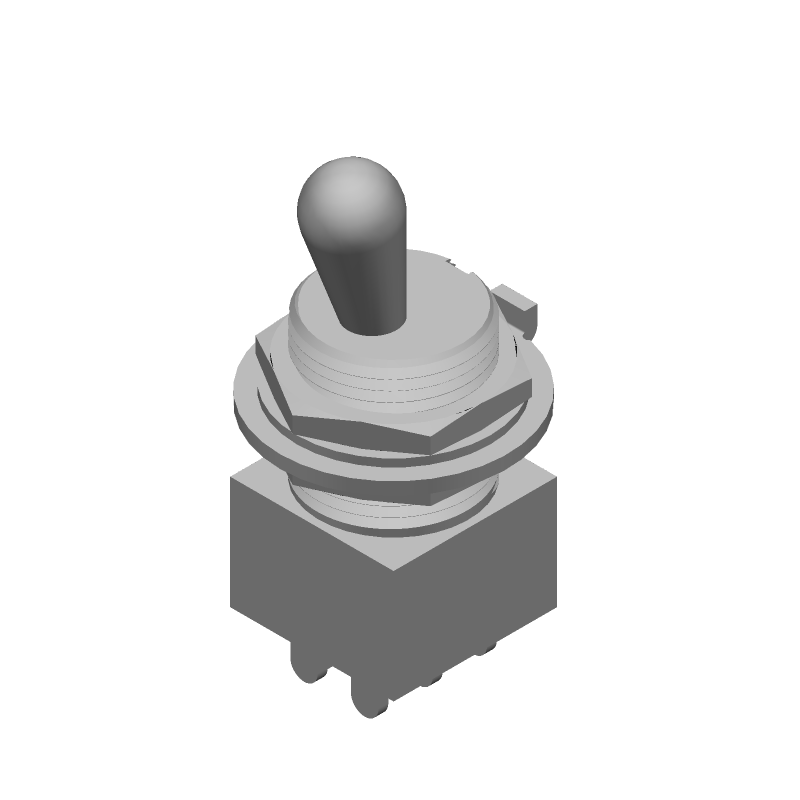

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2-1437559-0 by TE Connectivity
Results Overview of 2-1437559-0 by TE Connectivity
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2-1437559-0 Information
2-1437559-0 by TE Connectivity is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 2-1437559-0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41AJ5274
|
Newark | Toggle Switches Dp On-Off-On Lug |Amp Te Connectivity 2-1437559-0 RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$18.3200 | Buy Now |
|
DISTI #
2-1437559-0
|
Avnet Americas | - Bulk (Alt: 2-1437559-0) RoHS: Not Compliant Min Qty: 100 Package Multiple: 100 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
$12.0789 / $14.5367 | Buy Now |
|
DISTI #
AMP2-1437559-0
|
Heilind Electronics | MTG206P=(MSTG)MUSTANG TOGGLE S | Americas - 0 in Stock |
|
$15.6215 / $18.2251 | Buy Now |
|
|
Onlinecomponents.com | MTG206P=(MSTG)MUSTANG TOGGLE S RoHS: Compliant |
94 In Stock |
|
$16.1700 / $19.8300 | Buy Now |
|
DISTI #
2-1437559-0
|
TTI | Toggle Switches MUSTANG TOGGLE SWITCH Min Qty: 100 Package Multiple: 25 Container: Each | Americas - 0 |
|
$18.7900 | Buy Now |
|
DISTI #
AMP2-1437559-0
|
Interstate Connecting Components | MTG206P=(MSTG)MUSTANG TOGGLE S | 0 |
|
$15.6215 / $18.2251 | Buy Now |
|
|
Master Electronics | MTG206P=(MSTG)MUSTANG TOGGLE S RoHS: Compliant |
94 In Stock |
|
$16.1700 / $19.8300 | Buy Now |
Part Details for 2-1437559-0
2-1437559-0 CAD Models
2-1437559-0 Part Data Attributes
|
|
2-1437559-0
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1437559-0
TE Connectivity
TOGGLE SWITCH, DPDT, LATCHED, 4A, 28VDC, PANEL MOUNT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Finish | CHROME | |
| Actuator Type | SHORT MUSTANG | |
| Body Breadth | 13 mm | |
| Body Color | GREEN | |
| Body Height | 9 mm | |
| Body Length or Diameter | 13 mm | |
| Center Contact Plating | GOLD OVER SILVER | |
| Contact (AC) Max Rating R Load | 6A@125VAC | |
| Contact Current(AC)-Max | 6 A | |
| Contact Current(DC)-Max | 6 A | |
| Contact (DC) Max Rating R Load | 4A@28VDC | |
| Contact Function | ON-OFF-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 125 V | |
| Contact Voltage(DC)-Max | 28 V | |
| Dielectric Withstand Volts | 1500 V | |
| Electrical Life | 60000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Force-Max | 14.71 N | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -20 °C | |
| Sealing | EPOXY TERMINAL SEALED | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Termination Type | WIRE |
