Circuit Protection / Circuit Breaker / 2-1423675-6
Datasheets
2-1423675-6 by: TE Connectivity

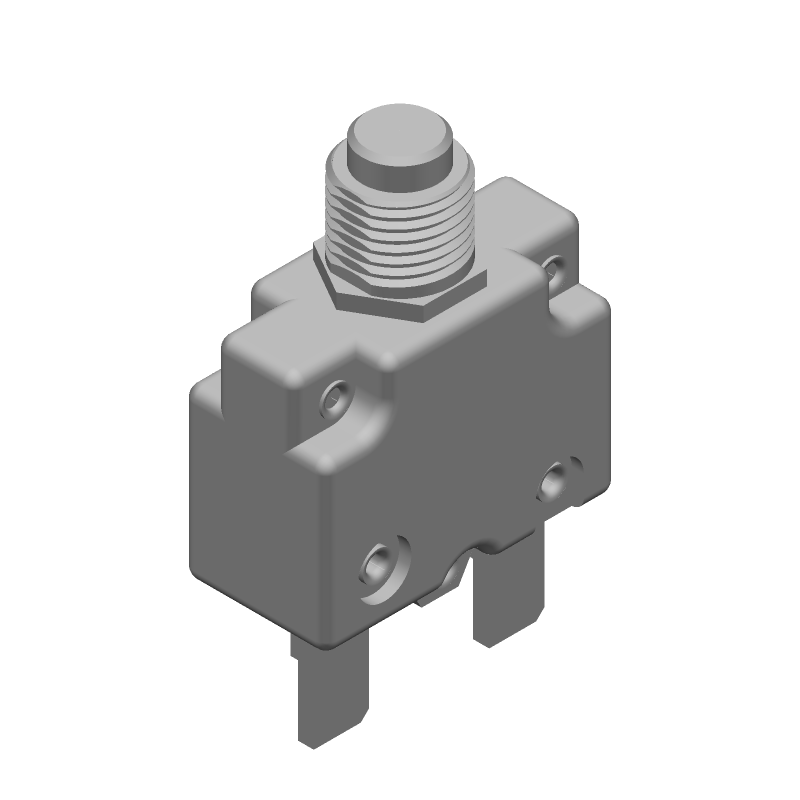

THERMAL CIRCUIT BREAKER

Part Details for 2-1423675-6 by TE Connectivity

Results Overview of 2-1423675-6 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2-1423675-6 Information

2-1423675-6 by TE Connectivity is a Circuit Breaker.
Circuit Breaker are under the broader part category of Circuit Protection Components.

Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.

Price & Stock for 2-1423675-6

Part # Distributor Description Stock Price Buy
DISTI # 2-1423675-6
Avnet Americas - Trays (Alt: 2-1423675-6) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 111 Weeks, 0 Days Container: Tray 0
  • 200 $1.4875
  • 400 $1.4637
  • 800 $1.4399
  • 1,200 $1.3209
  • 1,600 $1.2987
$1.2987 / $1.4875 Buy Now
DISTI # 571-2-1423675-6
Mouser Electronics Circuit Breakers W57-XB2A99C10-20=CKTBKR,THERM, RoHS: Compliant 0
  • 1 $3.8300
  • 5 $3.4900
  • 10 $2.8900
  • 50 $2.4900
  • 100 $1.9900
  • 200 $1.9100
  • 600 $1.8100
  • 1,000 $1.6900
  • 2,600 $1.6300
$1.6300 / $3.8300 Order Now
DISTI # AMP2-1423675-6
Heilind Electronics W57-XB2A99C10-20=CKTBKR,THERM, Americas - 0 in Stock
  • 1 $1.9773
  • 10 $1.9182
  • 25 $1.8360
$1.8360 / $1.9773 Buy Now
Onlinecomponents.com W57-XB2A99C10-20=CKTBKR,THERM, RoHS: Compliant 0
  • 10 $2.2900
  • 200 $1.8600
  • 400 $1.7800
  • 600 $1.7200
  • 1,000 $1.5200
  • 2,600 $1.4800
  • 5,000 $1.3100
  • 7,600 $1.2900
$1.2900 / $2.2900 Buy Now
DISTI # AMP2-1423675-6
Interstate Connecting Components W57-XB2A99C10-20=CKTBKR,THERM, 0
  • 1 $1.9773
  • 10 $1.9182
  • 25 $1.8360
$1.8360 / $1.9773 Buy Now
DISTI # 000000000006004092
Sager Circuit Breakers W57-XB2A99C10-20=CKTBKR,THERM, Min Qty: 200 0
  • 200 $1.7500
  • 400 $1.7000
  • 800 $1.6500
  • 2,200 $1.4800
$1.4800 / $1.7500 Buy Now
Master Electronics W57-XB2A99C10-20=CKTBKR,THERM, RoHS: Compliant 0
  • 10 $2.2900
  • 200 $1.8600
  • 400 $1.7800
  • 600 $1.7200
  • 1,000 $1.5200
  • 2,600 $1.4800
  • 5,000 $1.3100
  • 7,600 $1.2900
$1.2900 / $2.2900 Buy Now

Part Details for 2-1423675-6

2-1423675-6 Part Data Attributes

Parametric Data
2-1423675-6 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-1423675-6 TE Connectivity THERMAL CIRCUIT BREAKER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Samacsys Manufacturer TE Connectivity
Actuator Type PUSH TO RESET
Body Breadth 14.6 mm
Body Height 22.6 mm
Body Length or Diameter 29.2 mm
Circuit Function SERIES TRIP
Circuit Protection Type THERMAL CIRCUIT BREAKER
Mounting Feature PANEL MOUNT
Number of Poles 1
Operating Temperature-Max 60 °C
Operating Temperature-Min
Rated Breaking Capacity 1000 A
Rated Current 20 A
Rated Voltage(AC) 250 V
Rated Voltage(DC) 50 V
Surface Mount NO
Terminal Shape QUICK CONNECT
Trip Time or Delay 4 s
