Relays / Power/Signal Relays / 2-1419135-1
Datasheets

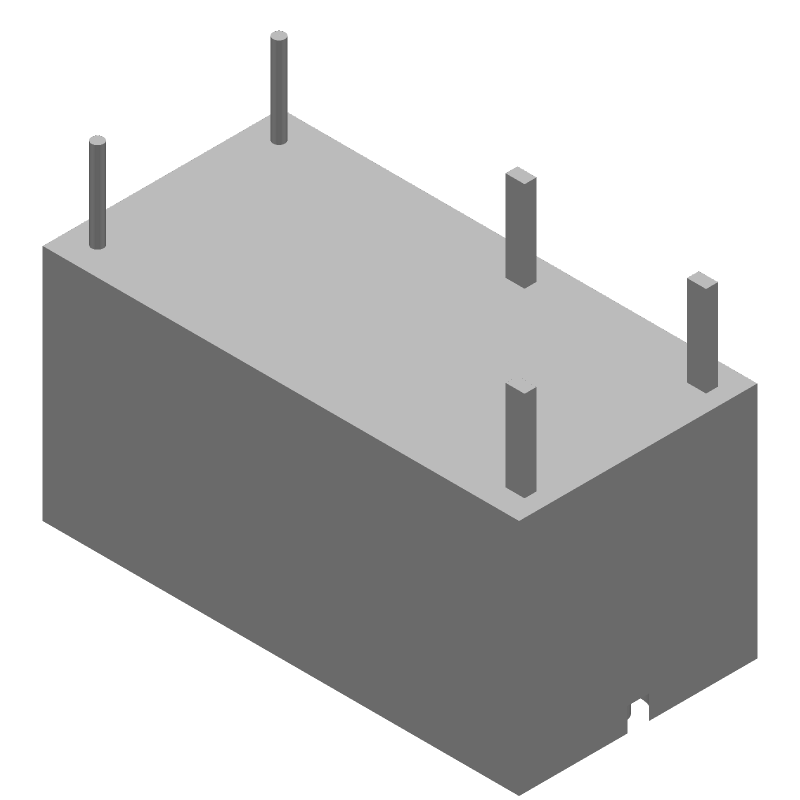

2-1419135-1 by: TE Connectivity

Power/Signal Relay, 1 Form C, 15VDC (Coil), 210mW (Coil), 5A (Contact), Panel Mount

Part Details for 2-1419135-1 by TE Connectivity

Results Overview of 2-1419135-1 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2-1419135-1 Information

2-1419135-1 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 2-1419135-1

Part # Distributor Description Stock Price Buy
DISTI # 41-2-1419135-1-ND
DigiKey RELAY GEN PURPOSE SPDT 5A 15V Min Qty: 2000 Lead time: 24 Weeks Container: Bulk Temporarily Out of Stock
  • 2,000 $2.8500
$2.8500 Buy Now
DISTI # 2-1419135-1
Avnet Americas SCR2-1419135-1 - Trays (Alt: 2-1419135-1) RoHS: Compliant Min Qty: 2000 Package Multiple: 25 Lead time: 111 Weeks, 0 Days Container: Tray 0
  • 2,000 $2.9610
  • 2,050 $2.8843
  • 4,050 $2.2310
  • 10,000 $2.2195
  • 20,000 $2.2080
$2.2080 / $2.9610 Buy Now
DISTI # 571-2-1419135-1
Mouser Electronics General Purpose Relays PE014015 RoHS: Compliant 0
  • 2,000 $2.8500
  • 2,500 $2.7900
$2.7900 / $2.8500 Order Now
DISTI # 72143790
RS Relay, PE014015 Min Qty: 2000 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk 0
  • 2,000 $2.5900
  • 4,000 $2.4600
  • 8,000 $2.3800
$2.3800 / $2.5900 RFQ
DISTI # AMP2-1419135-1
Heilind Electronics PE014015 Americas - 0 in Stock
  • 1 $3.3732
  • 25 $3.2832
  • 50 $3.1979
$3.1979 / $3.3732 Buy Now
Onlinecomponents.com PE014015 RoHS: Compliant 0
  • 500 $7.7500
  • 1,000 $4.1000
  • 1,500 $2.8900
  • 2,000 $2.8300
$2.8300 / $7.7500 Buy Now
DISTI # AMP2-1419135-1
Interstate Connecting Components PE014015 0
  • 1 $3.3732
  • 25 $3.2832
  • 50 $3.1979
$3.1979 / $3.3732 Buy Now
DISTI # 000000000005525638
Sager General Purpose Relays PE014015 0
Buy Now
DISTI # 2-1419135-1
Avnet Abacus SCR214191351 (Alt: 2-1419135-1) RoHS: Compliant Min Qty: 2000 Package Multiple: 25 Lead time: 12 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics PE014015 RoHS: Compliant 0
  • 500 $7.7500
  • 1,000 $4.1000
  • 1,500 $2.8900
  • 2,000 $2.8300
$2.8300 / $7.7500 Buy Now

Part Details for 2-1419135-1

2-1419135-1 Part Data Attributes

Parametric Data
2-1419135-1 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-1419135-1 TE Connectivity Power/Signal Relay, 1 Form C, 15VDC (Coil), 210mW (Coil), 5A (Contact), Panel Mount
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer TE Connectivity
Body Breadth 10 mm
Body Height 10 mm
Body Length or Diameter 20 mm
Coil Power 210 mW
Coil Resistance 1070 Ω
Coil Voltage(DC)-Max 15 V
Contact Current(AC)-Max 5 A
Contact Current(DC)-Max 5 A
Contact Voltage(AC)-Max 400 V
Dielectric Strength Between Coil and Contacts 4000 Vrms
Dielectric Strength Between Open Contacts 1000 Vrms
End Contact Material SILVER NICKEL
Insulation Resistance 10000000000000 Ω
Mounting Feature PANEL MOUNT
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Packing Method BOX; TUBE
Relay Action MOMENTARY
Relay Form 1 FORM C
Relay Type POWER/SIGNAL RELAY
Surface Mount NO
Termination Type SOLDER/QUICK CONNECT
Weight 5 g
