Connectors / Headers and Edge Type Connectors / 2-102617-3
Datasheets

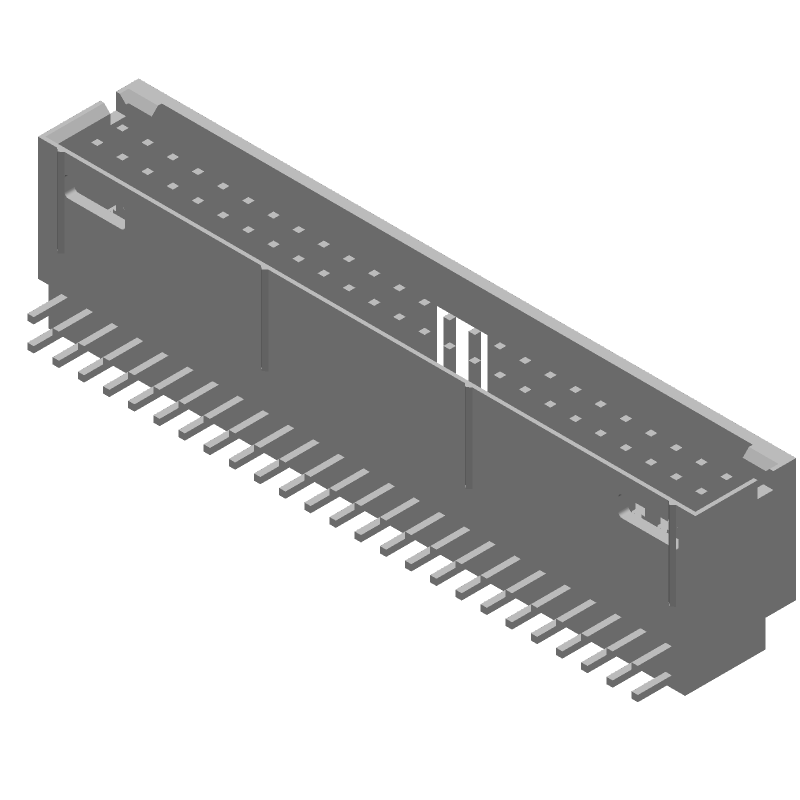

2-102617-3 by: TE Connectivity

50 MODII HDR DRRA SHRD .100CL

Part Details for 2-102617-3 by TE Connectivity

Results Overview of 2-102617-3 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

2-102617-3 Information

2-102617-3 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2-102617-3

Part # Distributor Description Stock Price Buy
DISTI # 85C4989
Newark 50 Modii Hdr Drra Shrd .100Cl Rohs Compliant: No |Amp Te Connectivity 2-102617-3 RoHS: Not Compliant Min Qty: 448 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $17.6700
  • 500 $17.0000
$17.0000 / $17.6700 Buy Now
DISTI # 2-102617-3
Avnet Abacus Conn Shrouded Header HDR 50 POS 254mm Solder RA ThruHole (Alt: 2-102617-3) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 2-102617-3
Avnet Abacus Conn Shrouded Header HDR 50 POS 254mm Solder RA ThruHole (Alt: 2-102617-3) RoHS: Not Compliant Min Qty: 64 Package Multiple: 64 Abacus - 0
Buy Now

Part Details for 2-102617-3

2-102617-3 Part Data Attributes

Parametric Data
2-102617-3 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-102617-3 TE Connectivity 50 MODII HDR DRRA SHRD .100CL
Pbfree Code No
Rohs Code No
Part Life Cycle Code End Of Life
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer TE Connectivity
Additional Feature AMPMODU
Body Breadth 0.413 inch
Body Depth 0.639 inch
Body Length 2.612 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
JESD-609 Code e0
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 15u inch
Polarization Key POLARIZED
Rated Current (Signal) 3 A
Reference Standard CSA, LR, U
Terminal Length 0.135 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 50
UL Flammability Code 94V-0

Alternate Parts for 2-102617-3

This table gives cross-reference parts and alternative options found for 2-102617-3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2-102617-3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
7-102570-2 TE Connectivity $12.8806 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle 2-102617-3 vs 7-102570-2
7-102617-3 TE Connectivity $22.0137 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle 2-102617-3 vs 7-102617-3
TST-125-04-T-D-RA Samtec Inc $4.4523 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT 2-102617-3 vs TST-125-04-T-D-RA
TST-125-04-L-D-RA Samtec Inc $6.3844 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT 2-102617-3 vs TST-125-04-L-D-RA
TST-125-04-F-D-RA Samtec Inc $6.5278 Board Connector 2-102617-3 vs TST-125-04-F-D-RA
TST-125-04-S-D-RA Samtec Inc $9.3279 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT 2-102617-3 vs TST-125-04-S-D-RA
2-102570-2 TE's AMP Check for Price 50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER 2-102617-3 vs 2-102570-2
Part Number Manufacturer Composite Price Description Compare
90122-0145 Molex $2.7456 Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, 2-102617-3 vs 90122-0145
TSM-125-04-T-DV-P-TR Samtec Inc $3.3046 Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 2-102617-3 vs TSM-125-04-T-DV-P-TR
TLW-125-05-T-D Samtec Inc $5.0129 Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 2-102617-3 vs TLW-125-05-T-D
95278-411-50LF Amphenol FCi Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator 2-102617-3 vs 95278-411-50LF
9100-41-225-01 Methode Electronics Inc Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle 2-102617-3 vs 9100-41-225-01
95278-504-50LF Amphenol FCi Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator 2-102617-3 vs 95278-504-50LF
54102-S36-25 Amphenol FCi Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle 2-102617-3 vs 54102-S36-25
15-41-8250 Molex Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle 2-102617-3 vs 15-41-8250
71918-150BSLF Amphenol Communications Solutions Check for Price Board Connector, 50 Contact(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Black Insulator, Plug, 2-102617-3 vs 71918-150BSLF
95278-504-50LF Amphenol Communications Solutions Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 2-102617-3 vs 95278-504-50LF

2-102617-3 Related Parts

2-102617-3 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.

  • Yes, the 2-102617-3 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.

  • The operating temperature range for the 2-102617-3 connector is -40°C to 105°C (-40°F to 221°F).

  • Yes, the 2-102617-3 connector is designed for outdoor use and can withstand exposure to moisture and humidity.

  • No, the 2-102617-3 connector is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.
