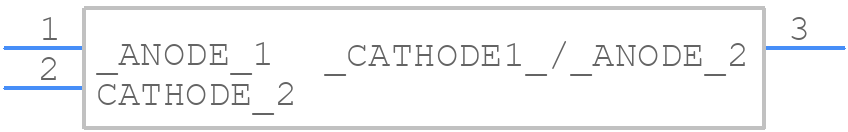

Part Symbol
-
Footprint
-

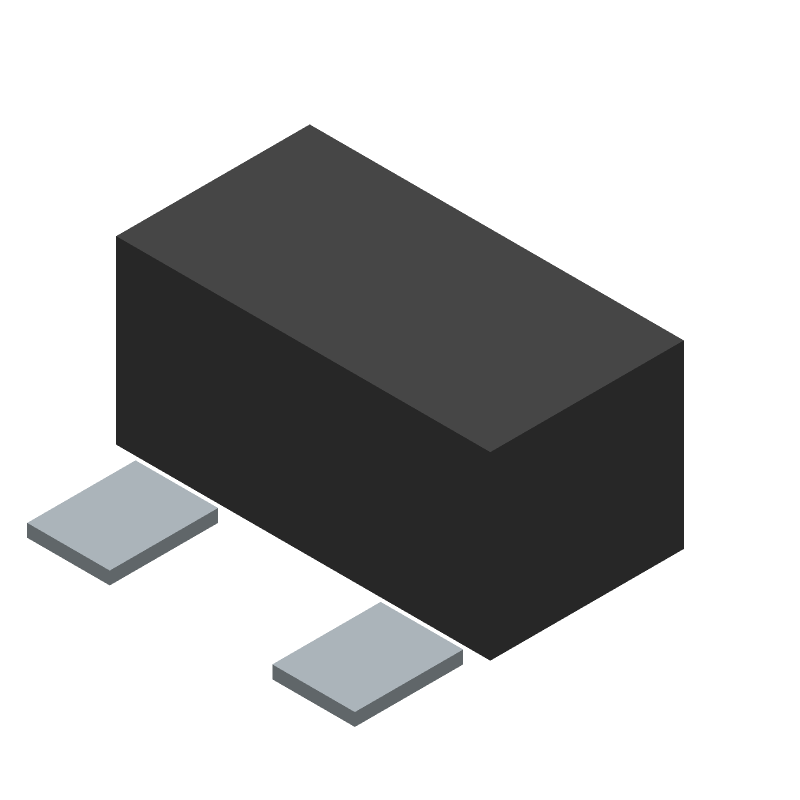

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1SS226,LF(T by Toshiba America Electronic Components
Results Overview of 1SS226,LF(T by Toshiba America Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
1SS226,LF(T Information
1SS226,LF(T by Toshiba America Electronic Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 1SS226 | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 80 V, 0.1 A, 2 in 1, SOT-346 |
Price & Stock for 1SS226,LF(T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AK0521
|
Newark | Schottky Diode, 85V, 0.1A, To-236 Rohs Compliant: Yes |Toshiba 1SS226,LF(T RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 152218 |
|
$0.0400 / $0.1540 | Buy Now |
|
DISTI #
86AK3206
|
Newark | Schottky Diode, 85V, 0.1A, To-236Mod Rohs Compliant: Yes |Toshiba 1SS226,LF(T RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0190 / $0.0300 | Buy Now |
|
DISTI #
1SS226,LF(T
|
Avnet Asia | Diode Switching 85V 0.1A 3-Pin TO-236MOD (Alt: 1SS226,LF(T) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
1SS226,LF(T
|
EBV Elektronik | Diode Switching 85V 01A 3Pin TO236MOD (Alt: 1SS226,LF(T) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 27 Weeks, 0 Days | EBV - 30000 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 24000 |
|
$0.0646 / $0.0700 | Buy Now |
Part Details for 1SS226,LF(T
1SS226,LF(T CAD Models
1SS226,LF(T Part Data Attributes
|
|
1SS226,LF(T
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
1SS226,LF(T
Toshiba America Electronic Components
Rectifier Diode, 2 Element, 0.1A, 85V V(RRM), Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | Toshiba | |
| Application | ULTRA FAST RECOVERY | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.2 V | |
| JESD-30 Code | R-PDSO-G3 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 0.15 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 85 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 80 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
1SS226,LF(T Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 1SS226,LF(T) is -40°C to 125°C.
-
To ensure reliability in high-temperature applications, it is recommended to derate the voltage and current ratings of the 1SS226,LF(T) according to the temperature derating curve provided in the datasheet.
-
The maximum allowable power dissipation for the 1SS226,LF(T) is 500 mW. Exceeding this limit may cause the device to overheat and fail.
-
During soldering and assembly, it is recommended to follow the recommended soldering conditions and handling procedures outlined in the datasheet to prevent damage to the device.
-
The 1SS226,LF(T) has a human body model (HBM) ESD rating of 2 kV and a machine model (MM) ESD rating of 200 V. It is recommended to follow proper ESD handling procedures to prevent damage to the device.
