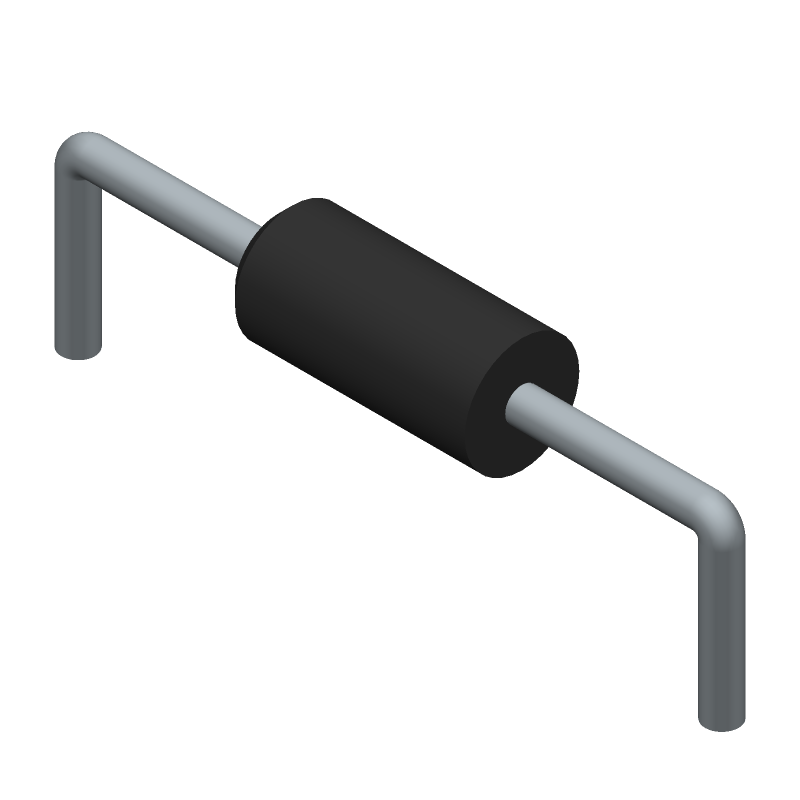

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N914 by Microchip Technology Inc
Results Overview of 1N914 by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Electronic Manufacturing
Communication and Networking
1N914 Information
1N914 by Microchip Technology Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N914
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AJ1130
|
Newark | 100V 200Ma 2A Signal Or Computer Diode Tht Do-35 Rohs Compliant: Yes |Microchip 1N914 RoHS: Compliant Min Qty: 981 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.8100 | Buy Now |
|
DISTI #
1N914MS-ND
|
DigiKey | DIODE STANDARD 75V 200MA DO204AH Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
1535 In Stock |
|
$0.8500 / $0.9100 | Buy Now |
|
DISTI #
1N914
|
Avnet Americas | Diode Small Signal Switching 100V 200mA 2-Pin DO-35 Bulk - Bulk (Alt: 1N914) RoHS: Not Compliant Min Qty: 981 Package Multiple: 1 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.7605 / $0.8125 | Buy Now |
|
DISTI #
494-1N914
|
Mouser Electronics | Small Signal Switching Diodes 100V 200mA 2A Signal or Computer Diode THT RoHS: Not Compliant | 2261 |
|
$0.8500 / $0.9100 | Buy Now |
|
DISTI #
1N914
|
Microchip Technology Inc | Signal or Computer Diode _ DO-35, Projected EOL: 2049-02-05 COO: Philippines ECCN: EAR99 Lead time: 22 Weeks, 0 Days |
10241 Alternates Available |
|
$0.9100 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
386 In Stock 10241 Factory Stock |
|
$0.7900 / $0.9700 | Buy Now |
|
DISTI #
66293368
|
Verical | Diode Switching 75V 0.2A 2-Pin DO-35 Bag RoHS: Not Compliant Min Qty: 75 Package Multiple: 25 Date Code: 1910 | Americas - 375 |
|
$1.0471 / $1.1412 | Buy Now |
|
|
NAC | Switching Diode RoHS: Compliant Min Qty: 384 Package Multiple: 1 | 0 |
|
$0.8100 / $1.0000 | Buy Now |
|
DISTI #
1N914
|
Avnet Silica | Diode Small Signal Switching 100V 200mA 2Pin DO35 Bulk (Alt: 1N914) RoHS: Not Compliant Min Qty: 981 Package Multiple: 1 Lead time: 24 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant |
386 In Stock 10241 Factory Stock |
|
$0.7900 / $0.9700 | Buy Now |
Part Details for 1N914
1N914 CAD Models
1N914 Part Data Attributes
|
|
1N914
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
1N914
Microchip Technology Inc
Rectifier Diode, 1 Phase, 1 Element, 0.075A, 75V V(RRM), Silicon, DO-35
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | HERMETIC SEALED, GLASS PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e0 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.075 A | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | MIL-19500/116 | |
| Rep Pk Reverse Voltage-Max | 75 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | NO | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
Alternate Parts for 1N914
This table gives cross-reference parts and alternative options found for 1N914. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N914, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JANTX1N914 | VPT Components | Check for Price | Rectifier Diode, 1 Element, 0.075A, 75V V(RRM), Silicon, DO-35, HERMETIC SEALED, GLASS PACKAGE-2 | 1N914 vs JANTX1N914 |
| 1N914-T50A | onsemi | Check for Price | High Conductance Fast Diode, DO-204AH (DO-35), 5000-FNFLD | 1N914 vs 1N914-T50A |
| 1N914TR | onsemi | $0.0287 | High Conductance Fast Diode, Axial Lead, 10000-REEL | 1N914 vs 1N914TR |
| 1N914.TR | Fairchild Semiconductor Corporation | Check for Price | 0.2 A, 100 V, SILICON, SIGNAL DIODE, DO-35 | 1N914 vs 1N914.TR |
1N914 Frequently Asked Questions (FAQ)
-
The 1N914 diode can operate safely between -65°C to 175°C, but the recommended operating temperature range is -40°C to 125°C.
-
To prevent electrostatic discharge (ESD) damage, handle the 1N914 diode with an anti-static wrist strap or mat, and ensure that your workspace is ESD-protected.
-
Store the 1N914 diode in a dry, cool place, away from direct sunlight and moisture. Avoid storing them in humid or high-temperature environments.
-
Yes, the 1N914 diode can be used in switching power supplies, but ensure that the diode is properly snubbed to prevent voltage spikes and ringing.
-
The resistor value depends on the specific application and the desired voltage drop. A general rule of thumb is to choose a resistor value that limits the current to 10-20 mA.
