Diodes / Zener Diodes / 1N757A
Datasheets
1N757A by:

Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2

Part Details for 1N757A by PanJit Semiconductor

Results Overview of 1N757A by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

1N757A Information

1N757A by PanJit Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 1N757A

1N757A CAD Models

  • Part Symbol

    Part Symbol

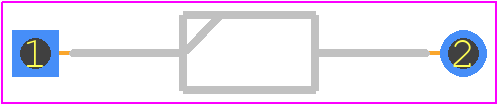

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N757A Part Data Attributes

Parametric Data
1N757A PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
1N757A PanJit Semiconductor Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer PANJIT INTERNATIONAL INC
Part Package Code DO-35
Package Description ROHS COMPLIANT, GLASS PACKAGE-2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer PANJIT
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
JEDEC-95 Code DO-35
JESD-30 Code O-LALF-W2
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.5 W
Reference Voltage-Nom 9.1 V
Surface Mount NO
Technology ZENER
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tol-Max 5%

Alternate Parts for 1N757A

This table gives cross-reference parts and alternative options found for 1N757A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N757A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N757A-BP Micro Commercial Components Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2 1N757A vs 1N757A-BP
1N757AT-10 ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional, DO-35 1N757A vs 1N757AT-10
1N757A(DO7)E3 Microsemi Corporation Check for Price Zener Diode, 9.1V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN 1N757A vs 1N757A(DO7)E3
1N757AFV ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional 1N757A vs 1N757AFV
JANTXV1N757A-1 Microsemi Corporation Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS PACKAGE-2 1N757A vs JANTXV1N757A-1
1N757ATA Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS, DO-204AH, 2 PIN 1N757A vs 1N757ATA
1N757AT-84 ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional, DO-35 1N757A vs 1N757AT-84
1N757ARL Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS, DO-204AH, 2 PIN 1N757A vs 1N757ARL
JANTXV1N757A MACOM Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED PACKAGE-2 1N757A vs JANTXV1N757A
1N757A Vishay Semiconductors Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-204AH, DO-35, GLASS PACKAFGE-2 1N757A vs 1N757A
Part Number Manufacturer Composite Price Description Compare
1N960B-B Diodes Incorporated Check for Price Zener Diode, 9.1V V(Z), 5%, 0.4W, Silicon, Unidirectional 1N757A vs 1N960B-B
1N757AT-12A ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional, DO-35 1N757A vs 1N757AT-12A
1N757AT-85 ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional, DO-35 1N757A vs 1N757AT-85
1N757AT-80A ROHM Semiconductor Check for Price Zener Diode, 0.4W, Silicon, Unidirectional, DO-35 1N757A vs 1N757AT-80A
1N757A-T Diodes Incorporated Check for Price Zener Diode, 9.1V V(Z), 5%, 0.4W, Silicon, Unidirectional 1N757A vs 1N757A-T
1N757 Micro Commercial Components Check for Price Zener Diode, 9.1V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-35, GLASS PACKAGE-2 1N757A vs 1N757
JANS1N757A-1 Compensated Devices Inc Check for Price Zener Diode, 9.1V V(Z), 5%, 0.4W, Silicon, Unidirectional, 1N757A vs JANS1N757A-1
1N757A Microchip Technology Inc Check for Price Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35 1N757A vs 1N757A
1N757-TP Micro Commercial Components Check for Price Zener Diode, 9.1V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-35, GLASS PACKAGE-2 1N757A vs 1N757-TP
1N757E3 Microsemi Corporation Check for Price Zener Diode, 9.1V V(Z), 10%, 0.417W, Silicon, Unidirectional, DO-204AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-7, 2 PIN 1N757A vs 1N757E3
