1N6642 Information
1N6642 by Microchip Technology Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N6642
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
36AJ2338
|
Newark | 75V 300Ma Signal Or Computer Diode Tht Do-35 Rohs Compliant: Yes |Microchip 1N6642 RoHS: Compliant Min Qty: 120 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.5900 / $6.8500 | Buy Now |
|
DISTI #
1N6642MS-ND
|
DigiKey | DIODE STANDARD 75V 300MA DO204AH Min Qty: 120 Lead time: 23 Weeks Container: Bulk | Temporarily Out of Stock |
|
$6.8501 | Buy Now |
|
DISTI #
1N6642
|
Avnet Americas | Diode Switching 100V 0.3A 2-Pin Case D - Bulk (Alt: 1N6642) RoHS: Not Compliant Min Qty: 120 Package Multiple: 1 Lead time: 23 Weeks, 0 Days Container: Bulk | 0 |
|
$6.1659 / $6.5875 | Buy Now |
|
DISTI #
494-1N6642
|
Mouser Electronics | Small Signal Switching Diodes 75V 300mA Signal or Computer Diode THT RoHS: Not Compliant | 88 |
|
$6.8500 / $7.3800 | Buy Now |
|
DISTI #
1N6642
|
Microchip Technology Inc | Signal or Computer Diode _ DO-35, Projected EOL: 2049-02-05 COO: Philippines ECCN: EAR99 Lead time: 23 Weeks, 0 Days |
459 Alternates Available |
|
$6.2200 / $7.3800 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 459 Factory Stock |
|
$7.2300 / $10.5400 | Buy Now |
|
|
NAC | Switching Diode RoHS: Compliant Min Qty: 47 Package Multiple: 1 | 0 |
|
$6.4300 / $7.7500 | Buy Now |
|
|
ES Components | Microsemi 1N6642 BARE DIE | 2 in Stock |
|
RFQ | |
|
|
Master Electronics | RoHS: Compliant | 459 Factory Stock |
|
$7.2300 / $10.5400 | Buy Now |
Part Details for 1N6642

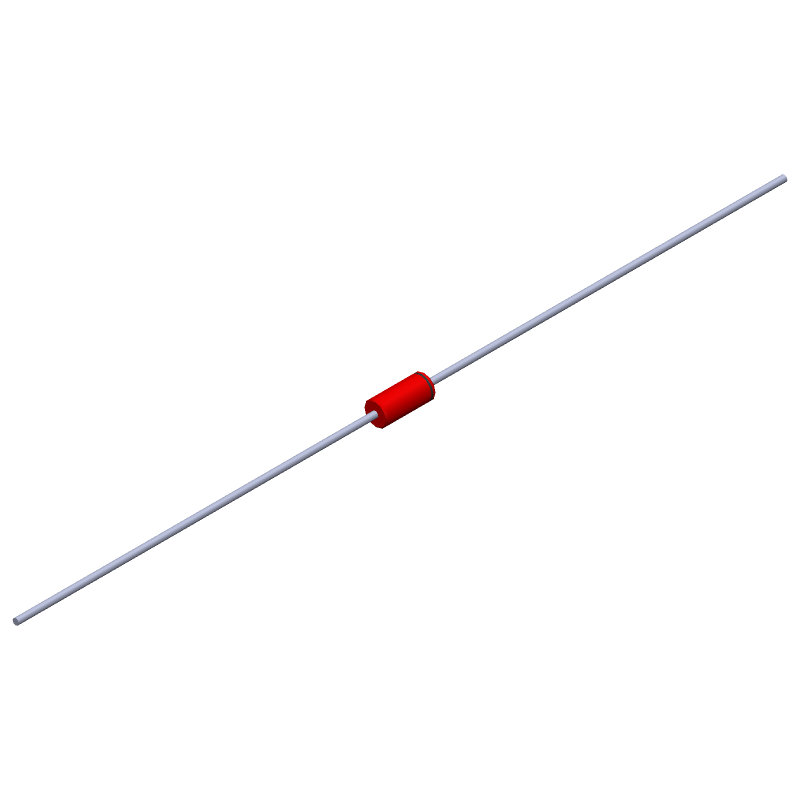

1N6642 CAD Models
1N6642 Part Data Attributes
|
|
1N6642
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
1N6642
Microchip Technology Inc
Rectifier Diode, 1 Phase, 1 Element, 0.3A, 75V V(RRM), Silicon
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | HERMETIC SEALED, GLASS PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 23 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e0 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.3 A | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Rep Pk Reverse Voltage-Max | 75 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | NO | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
