Diodes / Zener Diodes / 1N6016B
Datasheets
1N6016B by:

Zener Diode, 47V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH

Part Details for 1N6016B by Microchip Technology Inc

Results Overview of 1N6016B by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1N6016B Information

1N6016B by Microchip Technology Inc is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N6016B

Part # Distributor Description Stock Price Buy
DISTI # 35AJ0782
Newark Voltage Regulator Do-35 Rohs Compliant: Yes |Microchip 1N6016B RoHS: Compliant Min Qty: 455 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.8000
  • 500 $1.7400
$1.7400 / $1.8000 Buy Now
DISTI # 1N6016BMS-ND
DigiKey DIODE ZENER 47V 500MW DO204AH Min Qty: 455 Lead time: 14 Weeks Container: Bulk Temporarily Out of Stock
  • 455 $1.8000
$1.8000 Buy Now
DISTI # 1N6016B
Avnet Americas Diode Zener Single 47V 5% 480mW 2-Pin DO-35 - Bulk (Alt: 1N6016B) RoHS: Not Compliant Min Qty: 455 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk 0
  • 455 $1.7250
  • 460 $1.6972
  • 920 $1.6697
  • 2,300 $1.6598
  • 4,600 $1.6512
$1.6512 / $1.7250 Buy Now
DISTI # 494-1N6016B
Mouser Electronics Zener Diodes Voltage Regulator RoHS: Not Compliant 834
  • 1 $1.9300
  • 10 $1.9200
  • 100 $1.8000
  • 250 $1.7900
$1.7900 / $1.9300 Buy Now
DISTI # 1N6016B
Microchip Technology Inc Voltage Regulator _ DO-35, Projected EOL: 2049-02-05 COO: Philippines Lead time: 14 Weeks, 0 Days 0

Alternates Available
  • 1 $1.9300
$1.9300 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 114 $2.7500
  • 228 $2.0700
  • 342 $1.9300
  • 455 $1.8900
$1.8900 / $2.7500 Buy Now
NAC Zener Diodes RoHS: Compliant Min Qty: 181 Package Multiple: 1 0
  • 1 $2.1200
  • 100 $1.9200
  • 500 $1.7700
  • 1,000 $1.7200
$1.7200 / $2.1200 Buy Now
Master Electronics   RoHS: Compliant 0
  • 114 $2.7500
  • 228 $2.0700
  • 342 $1.9300
  • 455 $1.8900
$1.8900 / $2.7500 Buy Now

Part Details for 1N6016B

1N6016B CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

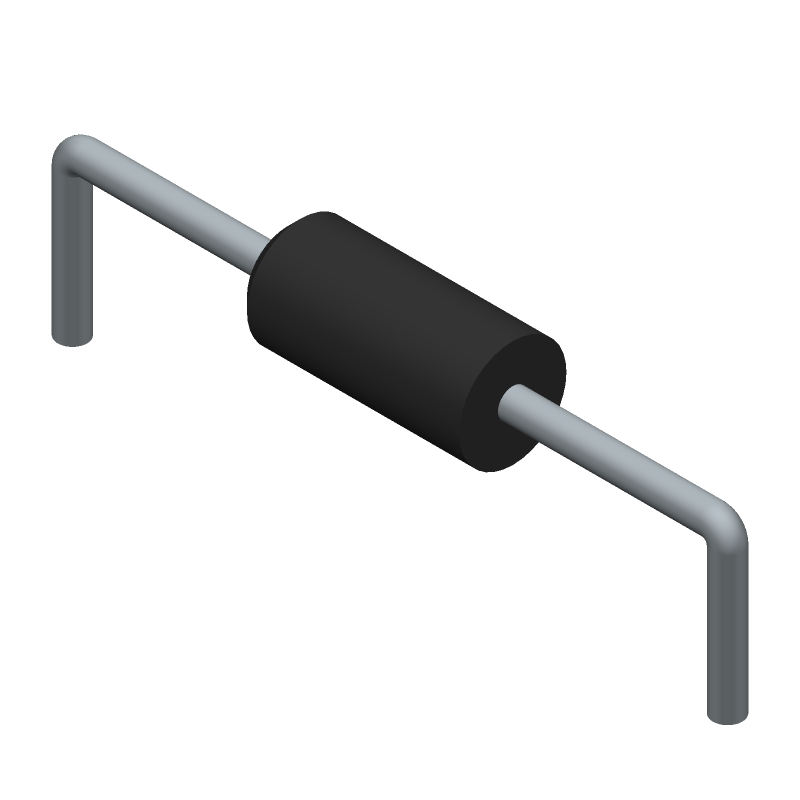

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N6016B Part Data Attributes

Parametric Data
1N6016B Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
1N6016B Microchip Technology Inc Zener Diode, 47V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description HERMETIC SEALED, GLASS, DO-35, 2 PIN
Reach Compliance Code compliant
Factory Lead Time 14 Weeks
Samacsys Manufacturer Microchip
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 170 Ω
JEDEC-95 Code DO-204AH
JESD-30 Code O-LALF-W2
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 200 °C
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.48 W
Qualification Status Not Qualified
Reference Voltage-Nom 47 V
Surface Mount NO
Technology ZENER
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tol-Max 5%
Working Test Current 2 mA

Alternate Parts for 1N6016B

This table gives cross-reference parts and alternative options found for 1N6016B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N6016B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N6016BE3 Microsemi Corporation Check for Price Zener Diode, 47V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N6016B vs 1N6016BE3
BZX79-C47 Nexperia Check for Price Zener Diode 1N6016B vs BZX79-C47
1N6016B-AP Micro Commercial Components Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, DO-35, 2 PIN 1N6016B vs 1N6016B-AP
1N6016B-TP Micro Commercial Components Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, DO-35, 2 PIN 1N6016B vs 1N6016B-TP
1N6016B Central Semiconductor Corp Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, 1N6016B vs 1N6016B
BZX79-C47T/R Nexperia Check for Price Zener Diode 1N6016B vs BZX79-C47T/R
1N6016A Microchip Technology Inc Check for Price Zener Diode, 47V V(Z), 10%, 0.48W, Silicon, Unidirectional, DO-204AH 1N6016B vs 1N6016A
BZX79-C47/A52R NXP Semiconductors Check for Price 47V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, SC-40, 2 PIN 1N6016B vs BZX79-C47/A52R
1N6016B-A Micro Commercial Components Check for Price Zener Diode, 1N6016B vs 1N6016B-A
Part Number Manufacturer Composite Price Description Compare
1N6016B Motorola Mobility LLC Check for Price 47V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AH 1N6016B vs 1N6016B
BZX79-C47,133 Nexperia Check for Price BZX79 series - Voltage regulator diodes@en-us AXIAL 2-Pin 1N6016B vs BZX79-C47,133
1N6016 Microsemi Corporation Check for Price Zener Diode, 47V V(Z), 20%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N6016B vs 1N6016
BZX79-C47/A52A NXP Semiconductors Check for Price 47V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, SC-40, 2 PIN 1N6016B vs BZX79-C47/A52A
1N6016A Motorola Mobility LLC Check for Price 47V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AH 1N6016B vs 1N6016A
1N6016B Microsemi Corporation Check for Price Zener Diode, 47V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N6016B vs 1N6016B
1N6016B_T50A Fairchild Semiconductor Corporation Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, LEAD FREE, GALSS PACKAGE-2 1N6016B vs 1N6016B_T50A
933117950113 Nexperia Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35 1N6016B vs 933117950113
TCBZX79C47TR Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS PACKAGE-2 1N6016B vs TCBZX79C47TR
1N6016B-BP Micro Commercial Components Check for Price Zener Diode, 47V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, DO-35, 2 PIN 1N6016B vs 1N6016B-BP
