Diodes / Zener Diodes / 1N5933BP-TP
Datasheets
1N5933BP-TP by: Micro Commercial Components

Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N5933BP-TP by Micro Commercial Components

Results Overview of 1N5933BP-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

1N5933BP-TP Information

1N5933BP-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N5933BP-TP

Part # Distributor Description Stock Price Buy
DISTI # 1N5933BP-TPMSCT-ND
DigiKey DIODE ZENER 22V 1.5W DO41 Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.4700
  • 10 $0.2860
  • 100 $0.1812
  • 500 $0.1356
  • 1,000 $0.1209
  • 2,000 $0.1085
  • 5,000 $0.0950
  • 10,000 $0.0867
  • 15,000 $0.0824
  • 25,000 $0.0777
  • 35,000 $0.0748
  • 50,000 $0.0721
  • 125,000 $0.0688
$0.0688 / $0.4700 Buy Now
DISTI # 833-1N5933BP-TP
Mouser Electronics Zener Diodes 1.5W ZENER RoHS: Compliant 0
  • 1 $0.4600
  • 10 $0.2860
  • 100 $0.1360
  • 1,000 $0.1080
  • 5,000 $0.0950
  • 10,000 $0.0820
  • 25,000 $0.0740
  • 50,000 $0.0720
  • 100,000 $0.0680
$0.0680 / $0.4600 Order Now

Part Details for 1N5933BP-TP

1N5933BP-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

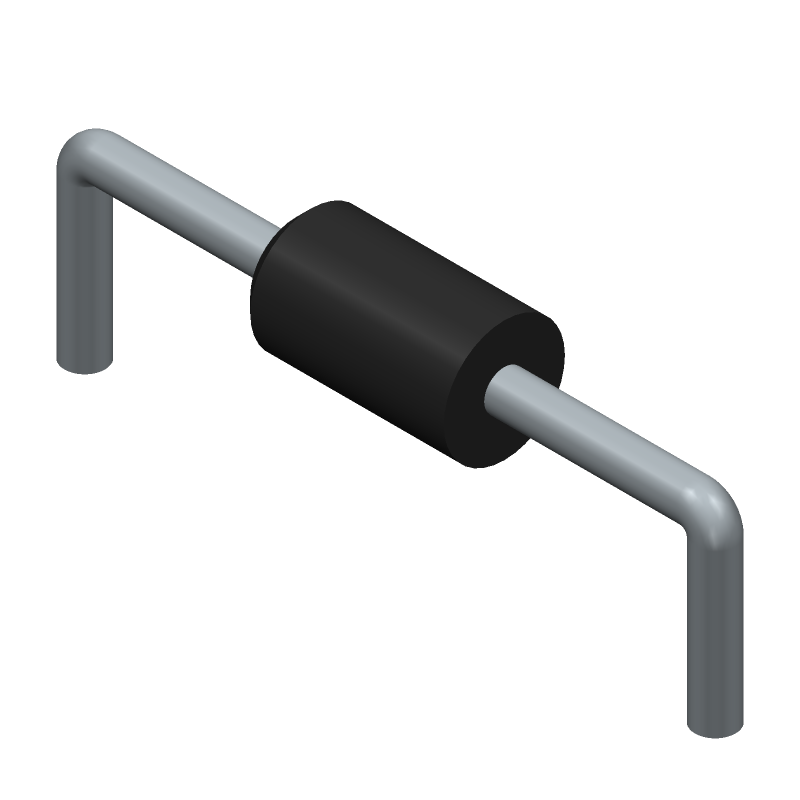

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5933BP-TP Part Data Attributes

Parametric Data
1N5933BP-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N5933BP-TP Micro Commercial Components Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description O-PALF-W2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 17.5 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Knee Impedance-Max 650 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1.5 W
Qualification Status Not Qualified
Reference Voltage-Nom 22 V
Reverse Current-Max 0.001 µA
Surface Mount NO
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 17 mA

Alternate Parts for 1N5933BP-TP

This table gives cross-reference parts and alternative options found for 1N5933BP-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5933BP-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5933B onsemi Check for Price 22V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN 1N5933BP-TP vs 1N5933B
1N5933BG Microsemi Corporation Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5933BP-TP vs 1N5933BG
1N5933B-BP Micro Commercial Components Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, GLASS, DO-41G, 2 PIN 1N5933BP-TP vs 1N5933B-BP
1N5933BPE3/TR12 Microsemi Corporation Check for Price DIODE ZENER 22V 1.5W DO204AL 1N5933BP-TP vs 1N5933BPE3/TR12
1N5933B_B0_00001 PanJit Semiconductor Check for Price Zener Diode 1N5933BP-TP vs 1N5933B_B0_00001
1N5933BTA Motorola Mobility LLC Check for Price 22V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5933BP-TP vs 1N5933BTA
1N5933BP-BP Micro Commercial Components Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5933BP-TP vs 1N5933BP-BP
Part Number Manufacturer Composite Price Description Compare
1N5933B-B Frontier Electronics Co Ltd Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional 1N5933BP-TP vs 1N5933B-B
1N5933B Motorola Mobility LLC Check for Price 22V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5933BP-TP vs 1N5933B
1N5933BPE3/TR12 Microchip Technology Inc Check for Price Zener Diode, 22V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL 1N5933BP-TP vs 1N5933BPE3/TR12
1N5933BRR2 onsemi Check for Price 22V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN 1N5933BP-TP vs 1N5933BRR2
1N5933BP-AP Micro Commercial Components Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5933BP-TP vs 1N5933BP-AP
1N5933BRL onsemi Check for Price 22V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN 1N5933BP-TP vs 1N5933BRL
1N5933BG onsemi Check for Price 3 Watt SUR30 Zener Voltage Regulators 22 V, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 2000-BLKBX 1N5933BP-TP vs 1N5933BG
1N5933B-PBF Digitron Semiconductors Check for Price Zener Diode 1N5933BP-TP vs 1N5933B-PBF
1N5933B Promax-Johnton Electronic Corporation Check for Price Zener Diode, 22V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2 1N5933BP-TP vs 1N5933B
1N5933BTR-RPCU Central Semiconductor Corp Check for Price Zener Diode, 22V V(Z), 1.5W, Silicon, Unidirectional, DO-41, 2 PIN 1N5933BP-TP vs 1N5933BTR-RPCU
