Diodes / Zener Diodes / 1N5928B
Datasheets
1N5928B by:

Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N5928B by PanJit Semiconductor

Results Overview of 1N5928B by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

1N5928B Information

1N5928B by PanJit Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 1N5928B

1N5928B CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

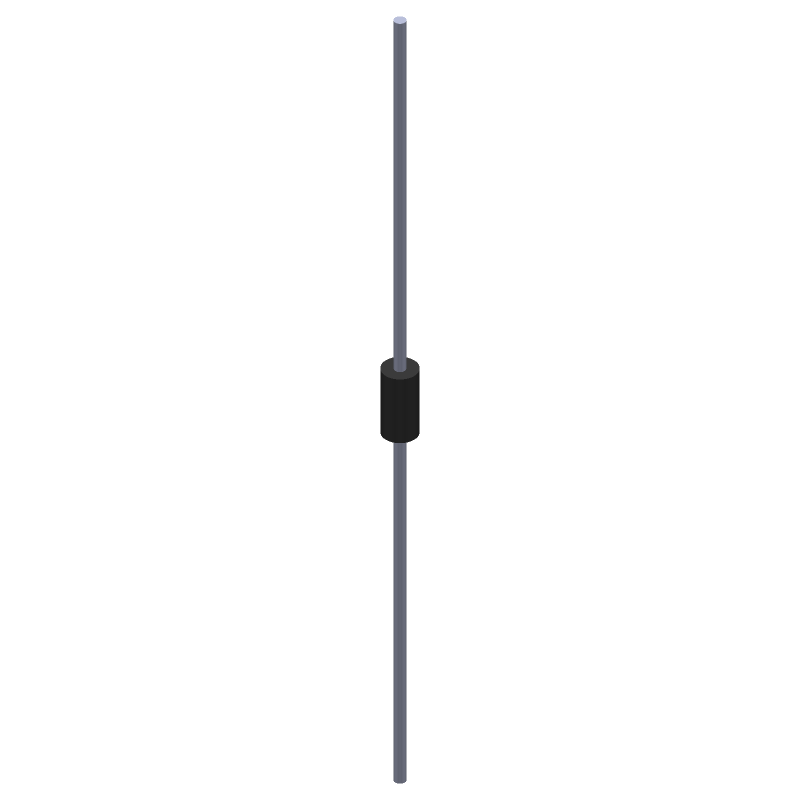

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5928B Part Data Attributes

Parametric Data
1N5928B PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
1N5928B PanJit Semiconductor Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANJIT INTERNATIONAL INC
Part Package Code DO-41
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer PANJIT
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 7 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1.5 W
Qualification Status Not Qualified
Reference Voltage-Nom 13 V
Surface Mount NO
Technology ZENER
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tol-Max 5%
Working Test Current 28.8 mA

Alternate Parts for 1N5928B

This table gives cross-reference parts and alternative options found for 1N5928B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5928B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5928B Central Semiconductor Corp Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, DO-41, 2 PIN 1N5928B vs 1N5928B
1N5928B_AY_10001 PanJit Semiconductor Check for Price Zener Diode 1N5928B vs 1N5928B_AY_10001
1N5928BGE3 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5928B vs 1N5928BGE3
1N5928B_R2_00001 PanJit Semiconductor Check for Price Zener Diode 1N5928B vs 1N5928B_R2_00001
1N5928BG Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5928B vs 1N5928BG
MQ1N5928BG Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5928B vs MQ1N5928BG
MV1N5928BG Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5928B vs MV1N5928BG
1N5928B Promax-Johnton Electronic Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2 1N5928B vs 1N5928B
MQ1N5928BPTR Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 20%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N5928B vs MQ1N5928BPTR
Part Number Manufacturer Composite Price Description Compare
MX1N5928BPTR Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 20%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N5928B vs MX1N5928BPTR
1N5928BBK Central Semiconductor Corp Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, 1N5928B vs 1N5928BBK
BZX85C11RLRL2 Motorola Mobility LLC Check for Price 11V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5928B vs BZX85C11RLRL2
1N5926B_R2_00001 PanJit Semiconductor Check for Price Zener Diode 1N5928B vs 1N5926B_R2_00001
1N5928B3P-BP Micro Commercial Components Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, 1N5928B vs 1N5928B3P-BP
BZX85C11-56A0 Taiwan Semiconductor Check for Price Zener Diode, 11V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N5928B vs BZX85C11-56A0
BZX85C13 Temic Semiconductors Check for Price Zener Diode, 13V V(Z), 6.4%, 1.3W, Silicon, Unidirectional, DO-41, 1N5928B vs BZX85C13
MX1N5928BP Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 20%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N5928B vs MX1N5928BP
1N5926 International Semiconductor Inc Check for Price Zener Diode, 11V V(Z), 20%, 1.5W, Silicon, Unidirectional, DO-41 1N5928B vs 1N5926
BZX85C11RLTA2 Motorola Semiconductor Products Check for Price Zener Diode, 11V V(Z), 5.45%, 1W, Silicon, Unidirectional, DO-41 1N5928B vs BZX85C11RLTA2
