Diodes / Rectifier Diodes / 1N5822-AP
Datasheets
1N5822-AP by: Micro Commercial Components

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N5822-AP by Micro Commercial Components

Results Overview of 1N5822-AP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

1N5822-AP Information

1N5822-AP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N5822-AP

Part # Distributor Description Stock Price Buy
DISTI # 353-1N5822-AP-ND
DigiKey DIODE SCHOTTKY 40V 3A DO201AD Min Qty: 12000 Lead time: 16 Weeks Container: Bulk Temporarily Out of Stock
  • 12,000 $0.0984
$0.0984 Buy Now
DISTI # 833-1N5822-AP
Mouser Electronics Schottky Diodes & Rectifiers Schottky Barrier Rectifiers RoHS: Compliant 0
  • 1 $0.3900
  • 10 $0.3000
  • 100 $0.1800
  • 500 $0.1670
  • 1,000 $0.1130
  • 2,500 $0.1040
  • 12,000 $0.0900
  • 24,000 $0.0890
  • 48,000 $0.0830
$0.0830 / $0.3900 Order Now

Part Details for 1N5822-AP

1N5822-AP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

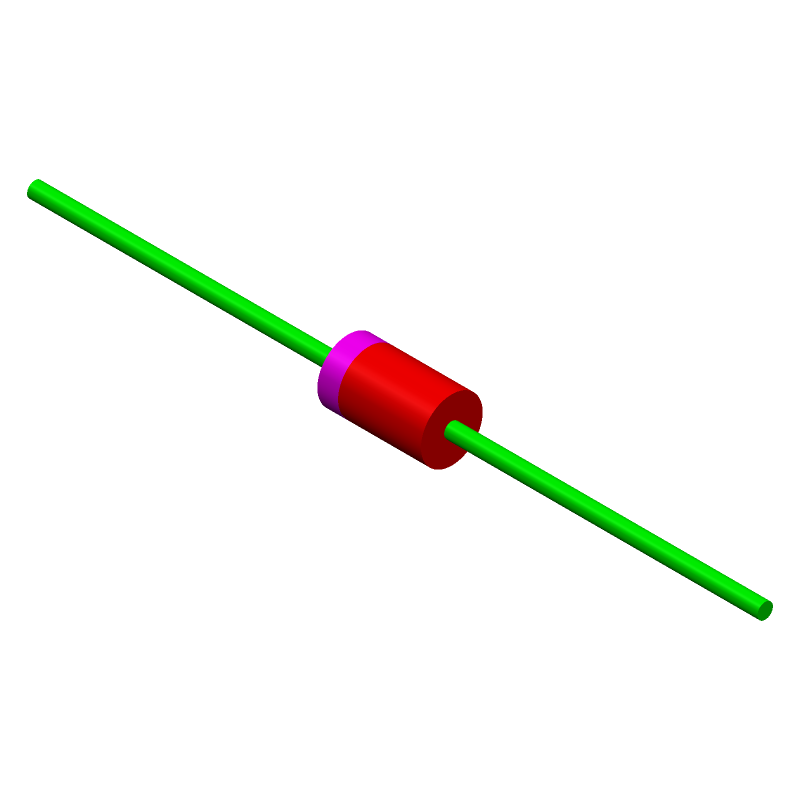

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5822-AP Part Data Attributes

Parametric Data
1N5822-AP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N5822-AP Micro Commercial Components Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-201AD
Package Description O-PALF-W2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.525 V
JEDEC-95 Code DO-201AD
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 80 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Output Current-Max 3 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 40 V
Reverse Current-Max 100 µA
Surface Mount NO
Technology SCHOTTKY
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for 1N5822-AP

This table gives cross-reference parts and alternative options found for 1N5822-AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5822-AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5822D1 Yangzhou Yangjie Electronics Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, DO-27, 2 PIN 1N5822-AP vs 1N5822D1
1N5822_NL Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, P3, 2 PIN 1N5822-AP vs 1N5822_NL
1N5822-G Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822-G
1N5822 Vishay Intertechnologies Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD 1N5822-AP vs 1N5822
1N5822-T3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822-T3
1N5822/54 Vishay Semiconductors Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822/54
1N5822 Tak Cheong Electronics (Holdings) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822
1N5822-13 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD 1N5822-AP vs 1N5822-13
1N5822-B Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822-B
1N5822-E3 Vishay Intertechnologies Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, LEAD FREE, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822-E3
Part Number Manufacturer Composite Price Description Compare
SB340 MERITEK Electronics Corporation Check for Price Rectifier Diode, 1N5822-AP vs SB340
SR340H35 Rectron Semiconductor Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, 1N5822-AP vs SR340H35
1N5822-E3 Vishay Semiconductors Check for Price DIODE 3 A, 40 V, SILICON, RECTIFIER DIODE, DO-201AD, LEAD FREE, PLASTIC PACKAGE-2, Rectifier Diode 1N5822-AP vs 1N5822-E3
SR304A0G Taiwan Semiconductor Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, GREEN, PLASTIC PACKAGE-2 1N5822-AP vs SR304A0G
SB340-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5822-AP vs SB340-LF
SB340HFTR Fagor Electrónica Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, DO-27, 2 PIN 1N5822-AP vs SB340HFTR
1N5822 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822
1N5822 Codi Semiconductor Inc Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5822-AP vs 1N5822
1N5822U23 Rectron Semiconductor Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-201AD, 1N5822-AP vs 1N5822U23
1N5822 Fuji Electric Co Ltd Check for Price Rectifier Diode, Schottky, 1 Element, 3A, 40V V(RRM) 1N5822-AP vs 1N5822
