Diodes / Rectifier Diodes / 1N5408-E3/54
Datasheets
1N5408-E3/54 by:

Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N5408-E3/54 by Vishay Intertechnologies

Results Overview of 1N5408-E3/54 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

1N5408-E3/54 Information

1N5408-E3/54 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N5408-E3/54

Part # Distributor Description Stock Price Buy
DISTI # 05R6001
Newark Standard Diode, 3A, 1Kv, Do-201Ad, Repetitive Peak Reverse Voltage:1Kv, Average Forward Current:3A, Diode Configuration:Single, Forward Voltage Max:1V, Reverse Recovery Time:-, Forward Surge Current:200A, Diode Case Style:Do-201Ad Rohs Compliant: Yes |Vishay 1N5408-E3/54 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 7939
  • 1 $0.4860
  • 10 $0.4120
  • 25 $0.3740
  • 50 $0.3350
  • 100 $0.2970
  • 250 $0.2660
  • 500 $0.2350
$0.2350 / $0.4860 Buy Now
DISTI # 78K2549
Newark Standard Diode, 3A, 1Kv, Do-201Ad, Full Reel, Repetitive Peak Reverse Voltage:1Kv, Average Forward Current:3A, Diode Configuration:Single, Forward Voltage Max:1V, Reverse Recovery Time:-, Forward Surge Current:200A, No. Of Pins:2Pinsrohs Compliant: Yes |Vishay 1N5408-E3/54 RoHS: Compliant Min Qty: 5600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,600 $0.1760
  • 8,400 $0.1740
  • 14,000 $0.1720
$0.1720 / $0.1760 Buy Now
DISTI # 1N5408-E3/54
Avnet Americas Diode Rectifier 1000V 3A 2-Pin DO-201AD T/R - Tape and Reel (Alt: 1N5408-E3/54) RoHS: Compliant Min Qty: 1400 Package Multiple: 1400 Lead time: 7 Weeks, 0 Days Container: Reel 5600
  • 1,400 $0.1319
  • 2,800 $0.1290
  • 5,600 $0.1260
  • 8,400 $0.1241
  • 11,200 $0.1211
$0.1211 / $0.1319 Buy Now
DISTI # 05R6001
Avnet Americas Diode Rectifier 1000V 3A 2-Pin DO-201AD T/R - Product that comes on tape, but is not reeled (Alt: 05R6001) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 6 Days Container: Ammo Pack 7939 Partner Stock
  • 1 $0.5460
  • 10 $0.3710
  • 25 $0.3360
  • 50 $0.3000
  • 100 $0.2650
$0.2650 / $0.5460 Buy Now
DISTI # 625-1N5408-E3
Mouser Electronics Rectifiers 3.0 Amp 1000 Volt RoHS: Compliant 3216
  • 1 $0.5300
  • 10 $0.3400
  • 100 $0.2820
  • 250 $0.2810
  • 500 $0.2220
  • 1,400 $0.1700
  • 2,800 $0.1470
  • 4,200 $0.1390
  • 9,800 $0.1290
$0.1290 / $0.5300 Buy Now
DISTI # E02:0323_00195815
Arrow Electronics Diode Switching 1KV 3A 2-Pin DO-201AD T/R Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2401 Europe - 23920
  • 1 $0.5337
  • 10 $0.3189
  • 100 $0.2678
  • 250 $0.2637
  • 500 $0.2189
  • 1,400 $0.1626
  • 2,800 $0.1301
  • 4,200 $0.1266
  • 9,800 $0.1164
$0.1164 / $0.5337 Buy Now
DISTI # V36:1790_18783079
Arrow Electronics Diode Switching 1KV 3A 2-Pin DO-201AD T/R Min Qty: 5600 Package Multiple: 5600 Lead time: 7 Weeks Date Code: 2248 Americas - 14000
  • 5,600 $0.1164
$0.1164 Buy Now
Future Electronics 1N5408 Series 1000 V 3 A Through Hole General Purpose Plastic Rectifier-DO-201AD RoHS: Compliant pbFree: Yes Min Qty: 5600 Package Multiple: 1400 Lead time: 7 Weeks Container: Reel 0
Reel
  • 1,400 $0.1210
  • 2,800 $0.1190
  • 4,200 $0.1180
  • 7,000 $0.1170
  • 14,000 $0.1150
$0.1150 / $0.1210 Buy Now
DISTI # 87632721
Verical Diode Switching 1KV 3A 2-Pin DO-201AD T/R Min Qty: 80 Package Multiple: 1 Date Code: 2401 Americas - 23920
  • 81 $0.3206
  • 100 $0.2693
  • 250 $0.2652
  • 500 $0.2201
  • 1,400 $0.1635
  • 2,800 $0.1308
  • 4,200 $0.1273
  • 9,800 $0.1170
$0.1170 / $0.3206 Buy Now
DISTI # 79007458
Verical Diode Switching 1KV 3A 2-Pin DO-201AD T/R Min Qty: 5600 Package Multiple: 5600 Date Code: 2248 Americas - 11200
  • 5,600 $0.1164
$0.1164 Buy Now
Quest Components RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 3A, 1000V V(RRM), SILICON, DO-201AD 44
  • 1 $2.0000
  • 4 $1.6000
  • 14 $1.2000
$1.2000 / $2.0000 Buy Now
DISTI # 1N5408-E3/54
TTI Rectifiers 3.0 Amp 1000 Volt RoHS: Compliant pbFree: Pb-Free Min Qty: 1400 Package Multiple: 1400 Container: Reel Americas - 183400
In Stock
  • 1,400 $0.1350
  • 2,800 $0.1320
  • 4,200 $0.1300
  • 7,000 $0.1270
  • 11,200 $0.1210
$0.1210 / $0.1350 Buy Now
Future Electronics 1N5408 Series 1000 V 3 A Through Hole General Purpose Plastic Rectifier-DO-201AD Min Qty: 1400 Package Multiple: 1400 2800
null
  • 1,400 $0.1210
  • 2,800 $0.1190
  • 4,200 $0.1180
  • 7,000 $0.1170
  • 14,000 $0.1150
$0.1150 / $0.1210 Buy Now
DISTI # 1N5408-E3/54
TME Diode: rectifying, THT, 1kV, 3A, reel,tape, Ifsm: 200A, DO201AD Min Qty: 1 12229
  • 1 $0.4680
  • 10 $0.3300
  • 50 $0.2830
  • 100 $0.2260
  • 250 $0.2070
  • 500 $0.1760
  • 1,000 $0.1360
  • 9,800 $0.1260
  • 14,000 $0.1000
$0.1000 / $0.4680 Buy Now
DISTI # DLGL5544
Rutronik SI-DIODE 3A 1000V DO201AD RoHS: Compliant Min Qty: 1400 Package Multiple: 1400 Container: Ammo Pack Stock DE - 5600
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 1,400 $0.1311
  • 2,800 $0.1255
  • 4,200 $0.1227
  • 5,600 $0.1161
  • 11,200 $0.1105
$0.1105 / $0.1311 Buy Now
DISTI # 1N5408-E3/54
EBV Elektronik Diode Rectifier 1000V 3A 2Pin DO201AD TR (Alt: 1N5408-E3/54) RoHS: Compliant Min Qty: 1400 Package Multiple: 1400 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 40456
RFQ

Part Details for 1N5408-E3/54

1N5408-E3/54 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

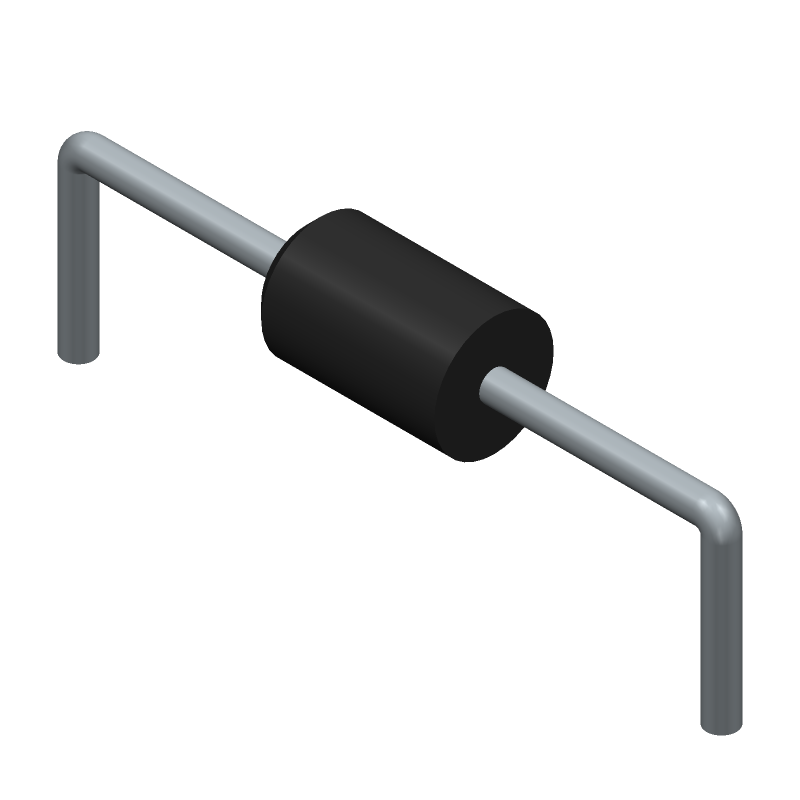

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5408-E3/54 Part Data Attributes

Parametric Data
1N5408-E3/54 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
1N5408-E3/54 Vishay Intertechnologies Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code not_compliant
Factory Lead Time 9 Weeks, 6 Days
Samacsys Manufacturer Vishay
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.2 V
JEDEC-95 Code DO-201AD
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 200 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -50 °C
Output Current-Max 3 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1000 V
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL

Alternate Parts for 1N5408-E3/54

This table gives cross-reference parts and alternative options found for 1N5408-E3/54. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5408-E3/54, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5408 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408
1N5408 Diotec Semiconductor AG $0.0521 Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408
1N5408B0 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408B0
1N5408-BC01 Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, DO-201AD, 2 PIN 1N5408-E3/54 vs 1N5408-BC01
1N5408-TB Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408-TB
1N5408-E3/73 Vishay Intertechnologies Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408-E3/73
1N5408TR Fagor Electrónica Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408TR
1N5408 Gulfsemi Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, 1N5408-E3/54 vs 1N5408
1N5408-T3 Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408-T3
Part Number Manufacturer Composite Price Description Compare
1N5408 Diodes Incorporated Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408
FR307P Rectron Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs FR307P
PS3010R_B0_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, 1N5408-E3/54 vs PS3010R_B0_00001
1N5408RL onsemi $0.1589 Standard Recovery Rectifier, 1000 V, 3.0 A, Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia, 1200-REEL 1N5408-E3/54 vs 1N5408RL
1N5408GP Fagor Electrónica Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408GP
1N5408-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408-LF
CR3-100TR Central Semiconductor Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, 1N5408-E3/54 vs CR3-100TR
HER308G Daco Semiconductor Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, 1N5408-E3/54 vs HER308G
1N5408 PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408
1N5408-T3-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5408-E3/54 vs 1N5408-T3-LF

1N5408-E3/54 Related Parts

1N5408-E3/54 Frequently Asked Questions (FAQ)

  • The maximum surge current rating of the 1N5408-E3/54 is 400A for a single cycle, as per the Vishay datasheet.

  • No, the 1N5408-E3/54 is a standard recovery diode and not suitable for high-frequency switching applications. It's recommended to use a fast recovery diode or a Schottky diode for such applications.

  • The thermal resistance of the 1N5408-E3/54 is 1.5°C/W, as per the Vishay datasheet.

  • Yes, the 1N5408-E3/54 diode is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The recommended soldering temperature for the 1N5408-E3/54 is 260°C for 10 seconds, as per the Vishay datasheet.
