Diodes / Zener Diodes / 1N5352B
Datasheets
1N5352B by:

Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, DO-201AE

Part Details for 1N5352B by SPC Multicomp

Results Overview of 1N5352B by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1N5352B Information

1N5352B by SPC Multicomp is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N5352B

Part # Distributor Description Stock Price Buy
DISTI # 35X2603
Newark Zener Single Diode, 15 V, 5 W, Do-201Ae, 5 %, 2, 150 C Rohs Compliant: Yes |Multicomp Pro 1N5352B RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk 1176
  • 1 $0.6000
  • 10 $0.5020
  • 50 $0.3960
  • 100 $0.3560
  • 500 $0.3420
  • 1,000 $0.3020
  • 5,000 $0.2820
  • 10,000 $0.2730
$0.2730 / $0.6000 Buy Now

Part Details for 1N5352B

1N5352B CAD Models

  • Part Symbol

    Part Symbol

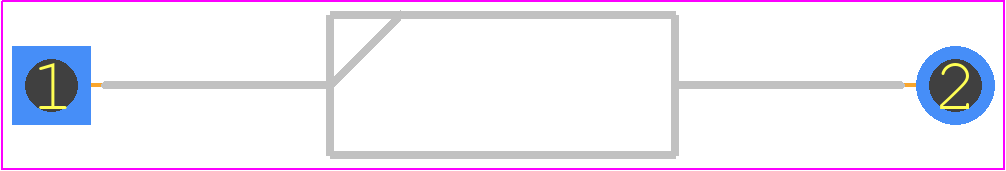

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5352B Part Data Attributes

Parametric Data
1N5352B SPC Multicomp
Buy Now Datasheet
Compare Parts:
1N5352B SPC Multicomp Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, DO-201AE
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer Multicomp Pro
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
JEDEC-95 Code DO-201AE
JESD-30 Code O-XALF-W2
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material UNSPECIFIED
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Reference Voltage-Nom 15 V
Surface Mount NO
Technology ZENER
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tol-Max 5%
Working Test Current 75 mA

Alternate Parts for 1N5352B

This table gives cross-reference parts and alternative options found for 1N5352B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5352B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5353B SPC Multicomp Check for Price Zener Diode, 16V V(Z), 5%, 5W, Silicon, Unidirectional, DO-201AE 1N5352B vs 1N5353B
Part Number Manufacturer Composite Price Description Compare
1N5352B-BP Micro Commercial Components Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N5352B vs 1N5352B-BP
1N5352B-BP-HF Micro Commercial Components Check for Price Zener Diode, 1N5352B vs 1N5352B-BP-HF
SMBG5352B/TR13 Microsemi Corporation Check for Price Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-215AA, PLASTIC, SMBG, 2 PIN 1N5352B vs SMBG5352B/TR13
MQ1N5352BE3 Microsemi Corporation Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5352B vs MQ1N5352BE3
1N5352BPBF Digitron Semiconductors Check for Price Zener Diode 1N5352B vs 1N5352BPBF
1N5352BE3 Microsemi Corporation Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5352B vs 1N5352BE3
1N5352B New Jersey Semiconductor Products Inc Check for Price Diode Zener Single 15V 5% 5W 2-Pin DO-201AE 1N5352B vs 1N5352B
MV1N5352BE3TR Microsemi Corporation Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5352B vs MV1N5352BE3TR
MX1N5352BE3 Microsemi Corporation Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5352B vs MX1N5352BE3
1N5352B-13 Diodes Incorporated Check for Price Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional 1N5352B vs 1N5352B-13

1N5352B Related Parts

1N5352B Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1N5352B is between 250°C to 260°C for a maximum of 10 seconds.

  • The 1N5352B is a standard rectifier diode and not optimized for high-frequency applications. For high-frequency applications, consider using a Schottky diode or a fast-recovery diode.

  • While the 1N5352B can be used in a switching power supply, its relatively slow recovery time (trr) may not be suitable for high-frequency switching applications. Consider using a faster diode with a shorter trr for switching power supplies.

  • As a general rule, it's recommended to derate the maximum voltage rating of the 1N5352B by 10-20% to ensure reliable operation and to account for voltage spikes or transients.

  • The 1N5352B is not AEC-Q101 qualified, which is a standard for automotive-grade components. If you need a diode for automotive applications, consider using an AEC-Q101 qualified diode.
