1N5253B Information

1N5253B by PanJit Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 1N5253B

1N5253B CAD Models

  • Part Symbol

    Part Symbol

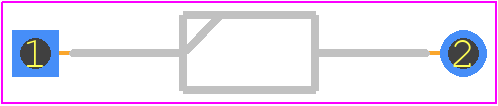

  • Footprint

    footprint

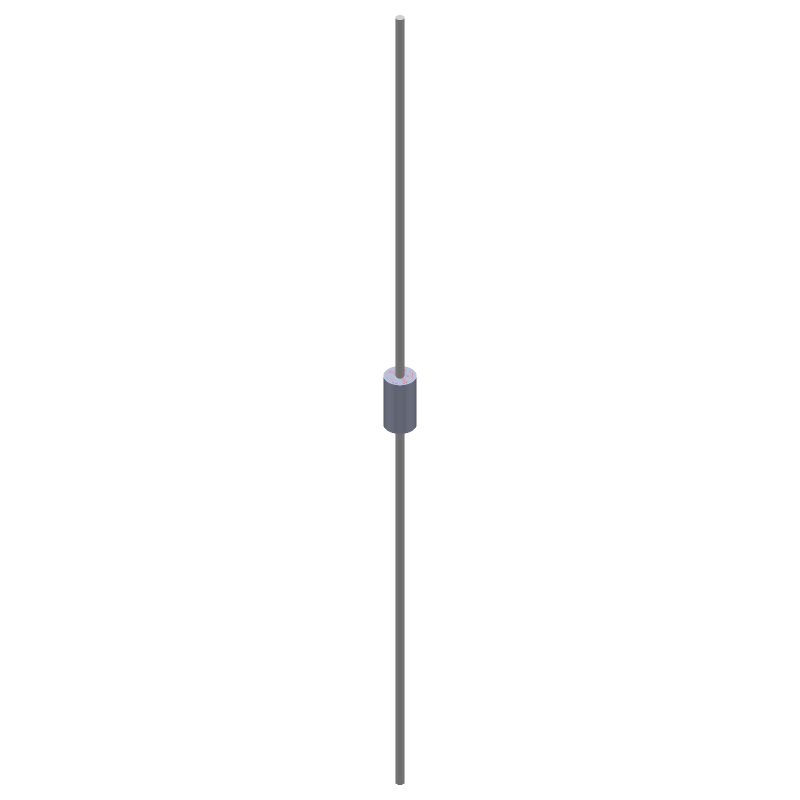

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5253B Part Data Attributes

Parametric Data
1N5253B PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
1N5253B PanJit Semiconductor Zener Diode, 25V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer PANJIT INTERNATIONAL INC
Part Package Code DO-35
Package Description ROHS COMPLIANT, GLASS PACKAGE-2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer PANJIT
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
JEDEC-95 Code DO-35
JESD-30 Code O-LALF-W2
JESD-609 Code e3
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.5 W
Reference Voltage-Nom 25 V
Surface Mount NO
Technology ZENER
Terminal Finish TIN
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tol-Max 5%
Working Test Current 0.25 mA

Alternate Parts for 1N5253B

This table gives cross-reference parts and alternative options found for 1N5253B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5253B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5253B-TB Won-Top Electronics Co Ltd Check for Price Zener Diode 1N5253B vs 1N5253B-TB
1N5253BT-80 ROHM Semiconductor Check for Price Zener Diode, 0.5W, Silicon, Unidirectional, DO-35 1N5253B vs 1N5253BT-80
MX1N5253BTR Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.417W, Silicon, Unidirectional, DO-204AA, HERMETIC SEALED, GLASS, DO-7, 2 PIN 1N5253B vs MX1N5253BTR
MX1N5253B-1 Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MX1N5253B-1
1N5253B_AX_10001 PanJit Semiconductor Check for Price Zener Diode, 1N5253B vs 1N5253B_AX_10001
MX1N5253BE3-1 Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MX1N5253BE3-1
1N5253B-35T/R PanJit Semiconductor Check for Price Zener Diode, 25V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2 1N5253B vs 1N5253B-35T/R
1N5253BT-15A ROHM Semiconductor Check for Price Zener Diode, 0.5W, Silicon, Unidirectional, DO-35 1N5253B vs 1N5253BT-15A
MV1N5253BTR-1 Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MV1N5253BTR-1
MV1N5253BE3-1 Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MV1N5253BE3-1
Part Number Manufacturer Composite Price Description Compare
1N5360BG onsemi $0.2253 5 Watt Surmetic 40 Zener Voltage Regulators 25 V, Surmetic 40, Axial Lead, 1000-BLKBX 1N5253B vs 1N5360BG
MV1N5253B-1TR Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MV1N5253B-1TR
1N5253B-T Diodes Incorporated Check for Price Zener Diode, 25V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N5253B vs 1N5253B-T
MQ1N5253BE3TR Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.417W, Silicon, Unidirectional, DO-204AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-7, 2 PIN 1N5253B vs MQ1N5253BE3TR
1N5253BTR Central Semiconductor Corp Check for Price Zener Diode, 25V V(Z), 0.5W, Silicon, Unidirectional, DO-35, 1N5253B vs 1N5253BTR
1N5253B SynSemi Inc Check for Price Zener Diode, 25V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, GLASS, DO-35, 2 PIN 1N5253B vs 1N5253B
1N5253B NEC Electronics America Inc Check for Price Zener Diode, 25V V(Z), 0.5W, Silicon, Unidirectional, DO-35, 1N5253B vs 1N5253B
MV1N5253BE3 Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.417W, Silicon, Unidirectional, DO-204AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-7, 2 PIN 1N5253B vs MV1N5253BE3
MQ1N5253B-1TR Microsemi Corporation Check for Price Zener Diode, 25V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN 1N5253B vs MQ1N5253B-1TR
1N5253B Taitron Components Inc Check for Price Zener Diode, 25V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2 1N5253B vs 1N5253B
