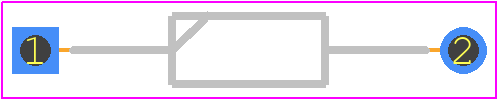

Footprint
-

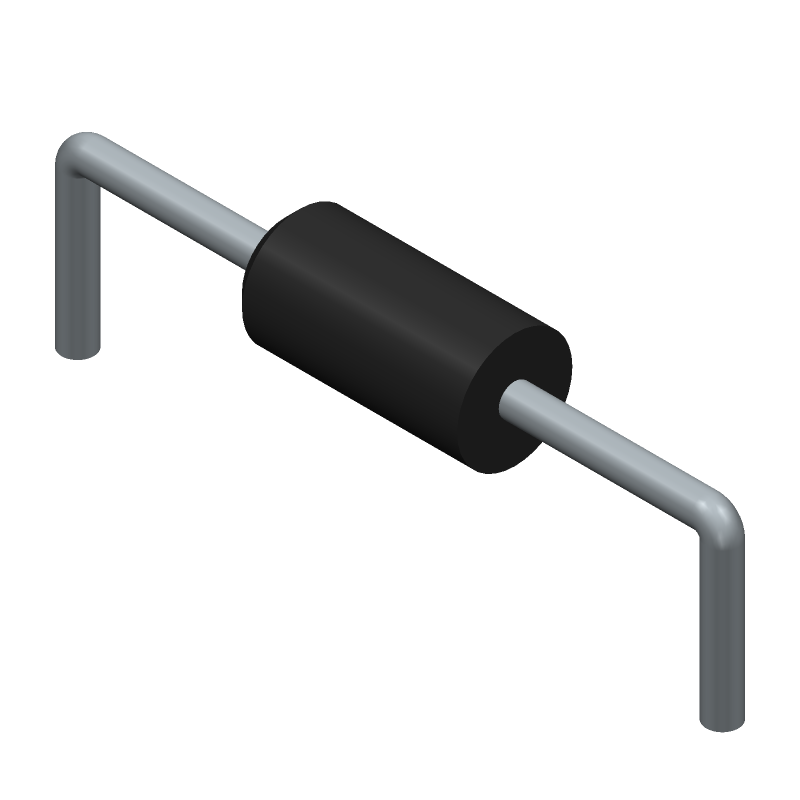

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N5237B by onsemi
Results Overview of 1N5237B by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
Automotive
1N5237B Information
1N5237B by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5237B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38C7691
|
Newark | Zener Diode, 500Mw, 8.2V, Do-35, Zener Voltage Nom:8.2V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N52 Series, Qualification:- Rohs Compliant: Yes |Onsemi 1N5237B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 20856 |
|
$0.0110 | Buy Now |
|
DISTI #
28AC6665
|
Newark | 8.2V 500Mw 5% Zener Do35 Rohs Compliant: Yes |Onsemi 1N5237B RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0210 / $0.0270 | Buy Now |
|
DISTI #
1N5237B-ND
|
DigiKey | DIODE ZENER 8.2V 500MW DO35 Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
1889 In Stock |
|
$0.0140 / $0.1200 | Buy Now |
|
DISTI #
1N5237B
|
Avnet Americas | Zener Single Diode, 8.2 V, 500 mW, DO-35, 2 Pins, 200 ?C, Through Hole - Bulk (Alt: 1N5237B) RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 3601540000 Factory Stock |
|
$0.0116 / $0.0133 | Buy Now |
|
DISTI #
38C7691
|
Avnet Americas | Zener Single Diode, 8.2 V, 500 mW, DO-35, 2 Pins, 200 ?C, Through Hole - Bulk (Alt: 38C7691) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 5 Days Container: Bulk | 20856 Partner Stock |
|
$0.0280 / $0.1050 | Buy Now |
|
DISTI #
512-1N5237B
|
Mouser Electronics | Zener Diodes 8.2V 0.5W Zener RoHS: Compliant | 14772 |
|
$0.0140 / $0.1200 | Buy Now |
|
|
Future Electronics | 1N5237 Series 500 mW 8.2 V 200 mA Through Hole Zener Diode - DO-35 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks Container: Box | 48790Box |
|
$0.0121 / $0.0137 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
50000 In Stock |
|
$0.0126 / $0.0149 | Buy Now |
|
DISTI #
83605276
|
Verical | Diode Zener Single 8.2V 5% 500mW 2-Pin DO-35 Bag Min Qty: 5000 Package Multiple: 5000 Date Code: 2414 | Americas - 50000 |
|
$0.0169 / $0.0194 | Buy Now |
|
DISTI #
87892095
|
Verical | Diode Zener Single 8.2V 5% 500mW 2-Pin DO-35 Bag Min Qty: 30 Package Multiple: 1 Date Code: 1621 | Americas - 2109 |
|
$0.9851 | Buy Now |
Part Details for 1N5237B
1N5237B CAD Models
1N5237B Part Data Attributes
|
|
1N5237B
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N5237B
onsemi
Zener 0.5W 8.2 V; 5% Tolerance, Axial Lead, 5000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Pin Count | 2 | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 23 Weeks, 5 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 8 Ω | |
| JEDEC-95 Code | DO-204AH | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 8.2 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 20 mA |
Alternate Parts for 1N5237B
This table gives cross-reference parts and alternative options found for 1N5237B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5237B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N5237B | General Instrument Corp | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, | 1N5237B vs 1N5237B |
| 1N5237B-A | Micro Commercial Components | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.5W, | 1N5237B vs 1N5237B-A |
| 1N5237BE3 | Microsemi Corporation | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5237B vs 1N5237BE3 |
| 1N5237B | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5237B vs 1N5237B |
| 1N5237B | STMicroelectronics | Check for Price | 8.2V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 1N5237B vs 1N5237B |
| 1N5237B | Crimson Semiconductor Inc | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.5W, Silicon, Unidirectional, | 1N5237B vs 1N5237B |
| 1N5237B116 | NXP Semiconductors | Check for Price | DIODE 8.2 V, 0.4 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, Voltage Regulator Diode | 1N5237B vs 1N5237B116 |
| 1N5237BRR1 | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Zener Diode, 8.2V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS, DO-204AH, 2 PIN | 1N5237B vs 1N5237BRR1 |
1N5237B Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 1N5237B is -65°C to +175°C.
-
To ensure stable zener operation, the 1N5237B should be biased with a minimum of 1 mA and a maximum of 30 mA, and the voltage across the diode should be within the specified zener voltage range.
-
The maximum power dissipation for the 1N5237B is 500 mW.
-
While the 1N5237B can be used as a voltage regulator, it is not recommended as it is not designed for that purpose. The 1N5237B is a zener diode, and its voltage regulation capabilities are limited. For voltage regulation, a dedicated voltage regulator IC is recommended.
-
To prevent electrostatic discharge (ESD) damage, handle the 1N5237B with ESD-safe materials, wear an ESD strap, and ensure the workspace is ESD-protected.
