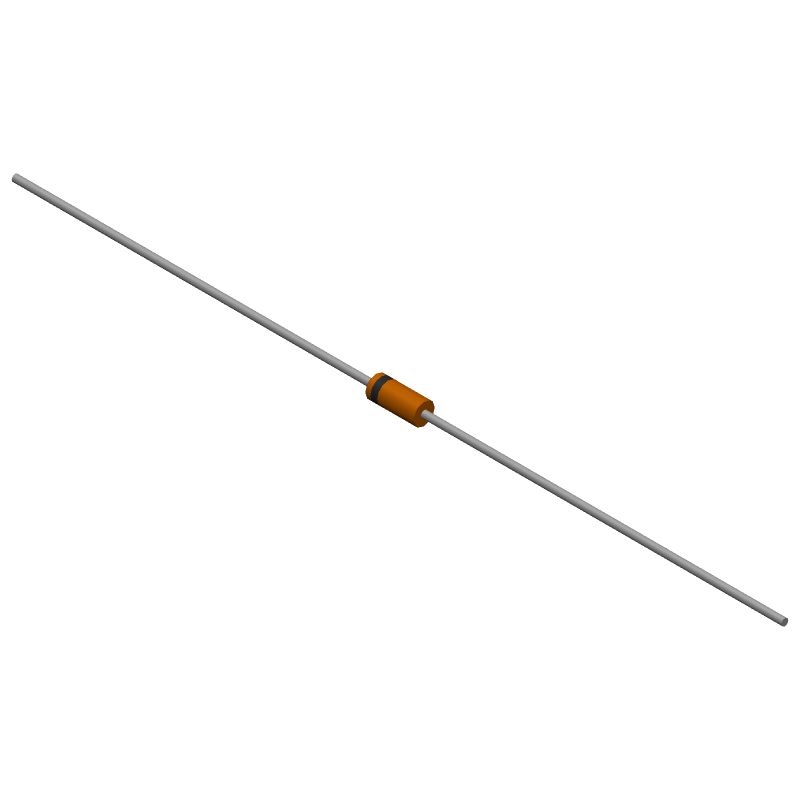

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N5236B by onsemi
Results Overview of 1N5236B by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
1N5236B Information
1N5236B by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5236B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AC6663
|
Newark | 7.5V 500Mw 5% Zener Do35 Rohs Compliant: Yes |Onsemi 1N5236B RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 49900 |
|
$0.0180 / $0.0270 | Buy Now |
|
DISTI #
58K9589
|
Newark | Zener Diode, 500Mw, 7.5V, Do-35, Zener Voltage Nom:7.5V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N52 Series, Qualification:- Rohs Compliant: Yes |Onsemi 1N5236B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 8319 |
|
$0.0140 / $0.0190 | Buy Now |
|
DISTI #
1N5236B-ND
|
DigiKey | DIODE ZENER 7.5V 500MW DO35 Min Qty: 1 Lead time: 6 Weeks Container: Bulk |
1240 In Stock |
|
$0.0170 / $0.1000 | Buy Now |
|
DISTI #
1N5236B
|
Avnet Americas | - Bulk (Alt: 1N5236B) RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 4990025000 Factory Stock |
|
$0.0124 / $0.0133 | Buy Now |
|
DISTI #
58K9589
|
Avnet Americas | - Bulk (Alt: 58K9589) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 4 Days Container: Bulk | 8319 Partner Stock |
|
$0.0250 / $0.1050 | Buy Now |
|
DISTI #
512-1N5236B
|
Mouser Electronics | Zener Diodes 7.5V 0.5W Zener RoHS: Compliant | 7157 |
|
$0.0130 / $0.1000 | Buy Now |
|
DISTI #
V79:2366_17796804
|
Arrow Electronics | Diode Zener Single 7.5V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks Date Code: 1833 | Americas - 89382 |
|
$0.0071 / $0.0146 | Buy Now |
|
|
Future Electronics | 1N5236 Series 500 mW 7.5 V 200 mA Through Hole Zener Diode - DO-35 RoHS: Compliant pbFree: Yes Min Qty: 50000 Package Multiple: 1000 Lead time: 22 Weeks Container: Bulk | 0Bulk |
|
$0.0131 / $0.0135 | Buy Now |
|
|
Onlinecomponents.com | 1N5236 Series 500 mW 7.5 V 200 mA Through Hole Zener Diode - DO-35 RoHS: Compliant |
40000 In Stock |
|
$0.0126 / $0.0149 | Buy Now |
|
DISTI #
60675630
|
Verical | Diode Zener Single 7.5V 5% 500mW 2-Pin DO-35 Bag Min Qty: 807 Package Multiple: 1 Date Code: 1833 | Americas - 89382 |
|
$0.0071 | Buy Now |
Part Details for 1N5236B
1N5236B CAD Models
1N5236B Part Data Attributes
|
|
1N5236B
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N5236B
onsemi
Zener 0.5W 7.5 V; 5% Tolerance, Axial Lead, 5000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Pin Count | 2 | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 23 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 6 Ω | |
| JEDEC-95 Code | DO-204AH | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 7.5 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 20 mA |
Alternate Parts for 1N5236B
This table gives cross-reference parts and alternative options found for 1N5236B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5236B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N5236BB | PanJit Semiconductor | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, GLASS PACKAGE-2 | 1N5236B vs 1N5236BB |
| 1N5236BT-11 | ROHM Semiconductor | Check for Price | Zener Diode, 0.5W, Silicon, Unidirectional, DO-35 | 1N5236B vs 1N5236BT-11 |
| 1N5236B.TR | Fairchild Semiconductor Corporation | Check for Price | DIODE 7.5 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, GLASS PACKAGE-2, Voltage Regulator Diode | 1N5236B vs 1N5236B.TR |
| 933379120143 | NXP Semiconductors | Check for Price | DIODE 7.5 V, 0.4 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, Voltage Regulator Diode | 1N5236B vs 933379120143 |
| 1N5236BT-88 | ROHM Semiconductor | Check for Price | Zener Diode, 0.5W, Silicon, Unidirectional, DO-35 | 1N5236B vs 1N5236BT-88 |
| MQ1N5236B-1TR | Microsemi Corporation | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5236B vs MQ1N5236B-1TR |
| MQ1N5236B-1E3TR | Microsemi Corporation | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5236B vs MQ1N5236B-1E3TR |
| 1N5236B | Micro Commercial Components | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, GLASS PACKAGE-2 | 1N5236B vs 1N5236B |
| 1N5236B/TR | Microsemi Corporation | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5236B vs 1N5236B/TR |
| MV1N5236BE3 | Microsemi Corporation | Check for Price | Zener Diode, 7.5V V(Z), 5%, 0.417W, Silicon, Unidirectional, DO-204AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-7, 2 PIN | 1N5236B vs MV1N5236BE3 |
1N5236B Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 1N5236B is -65°C to +175°C.
-
To ensure proper biasing, the 1N5236B should be operated with a minimum of 1 mA of current and a maximum of 30 mA of current, with a voltage source that can provide a stable voltage within the recommended operating range.
-
The maximum power dissipation for the 1N5236B is 500 mW.
-
Yes, the 1N5236B can be used in switching power supply applications, but it's essential to ensure that the diode is properly biased and that the voltage and current ratings are not exceeded.
-
To prevent electrostatic discharge (ESD) damage, it's recommended to use proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
