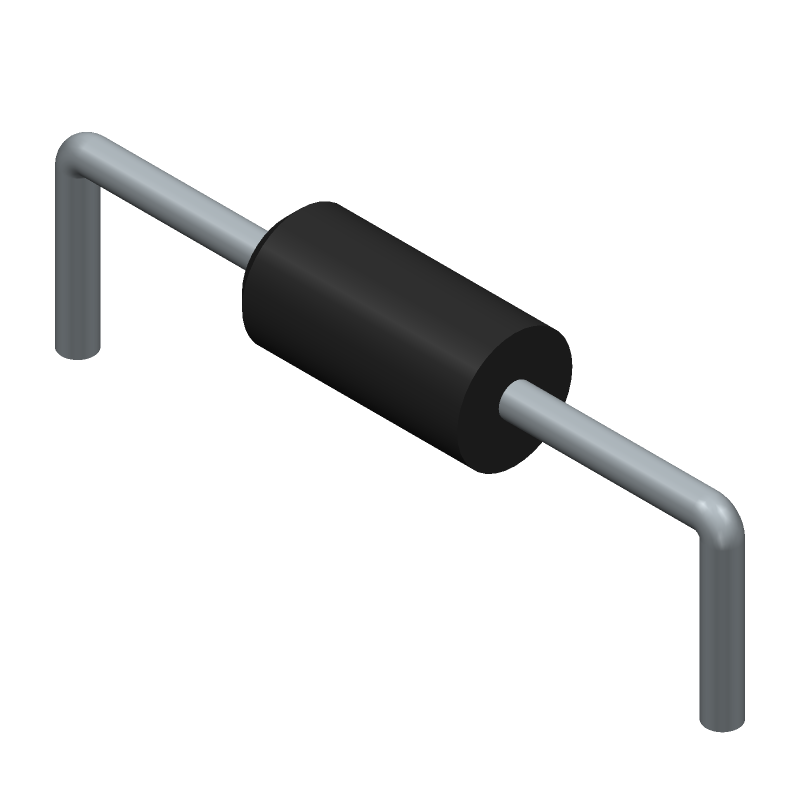

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N5232B by onsemi
Results Overview of 1N5232B by onsemi
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
1N5232B Information
1N5232B by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5232B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38C7688
|
Newark | Zener Diode, 500Mw, 5.6V, Do-35, Zener Voltage Nom:5.6V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N52 Series, Qualification:- Rohs Compliant: Yes |Onsemi 1N5232B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 11146 |
|
$0.0180 / $0.0190 | Buy Now |
|
DISTI #
1N5232B-ND
|
DigiKey | DIODE ZENER 5.6V 500MW DO35 Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
2929 In Stock |
|
$0.0150 / $0.1100 | Buy Now |
|
DISTI #
38C7688
|
Avnet Americas | - Bulk (Alt: 38C7688) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 5 Days Container: Bulk | 11146 Partner Stock |
|
$0.0280 / $0.1150 | Buy Now |
|
DISTI #
1N5232B
|
Avnet Americas | - Bulk (Alt: 1N5232B) RoHS: Compliant Min Qty: 50000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Bulk | 25000 Factory Stock |
|
$0.0137 / $0.0140 | Buy Now |
|
DISTI #
512-1N5232B
|
Mouser Electronics | Zener Diodes 5.6V 0.5W Zener RoHS: Compliant | 15068 |
|
$0.0150 / $0.1100 | Buy Now |
|
DISTI #
V79:2366_17787966
|
Arrow Electronics | Diode Zener Single 5.6V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks Date Code: 2227 | Americas - 211 |
|
$0.0142 / $0.0183 | Buy Now |
|
|
Future Electronics | 1N5232B Series 500 mW 5.6 V ±5 % 200 mA Through Hole Zener Diode - DO-35 RoHS: Compliant pbFree: Yes Min Qty: 50000 Package Multiple: 1000 Lead time: 37 Weeks Container: Box | 0Box |
|
$0.0134 / $0.0150 | Buy Now |
|
|
Onlinecomponents.com | Diode Zener Single 5.6 Volt 5% 500mW 2-Pin DO-35 Bulk RoHS: Compliant |
40000 In Stock |
|
$0.0126 / $0.0149 | Buy Now |
|
DISTI #
86223677
|
Verical | Diode Zener Single 5.6V 5% 500mW 2-Pin DO-35 Bag Min Qty: 5000 Package Multiple: 5000 Date Code: 2442 | Americas - 40000 |
|
$0.0169 / $0.0194 | Buy Now |
|
DISTI #
87651874
|
Verical | Diode Zener Single 5.6V 5% 500mW 2-Pin DO-35 Bag Min Qty: 5000 Package Multiple: 5000 | Americas - 15000 |
|
$0.0131 | Buy Now |
Part Details for 1N5232B
1N5232B CAD Models
1N5232B Part Data Attributes
|
|
1N5232B
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N5232B
onsemi
Zener 0.5W 5.6 V; 5% Tolerance, Axial Lead, 5000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Pin Count | 2 | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 7 Weeks, 5 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 11 Ω | |
| JEDEC-95 Code | DO-204AH | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 5.6 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 20 mA |
Alternate Parts for 1N5232B
This table gives cross-reference parts and alternative options found for 1N5232B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5232B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N5232B-A | Diodes Incorporated | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | 1N5232B vs 1N5232B-A |
| 1N5232B | Vishay Intertechnologies | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2 | 1N5232B vs 1N5232B |
| 1N5232B | Hitachi Ltd | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, DO-35, 3 PIN | 1N5232B vs 1N5232B |
| 1N5232B-T | Diodes Incorporated | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | 1N5232B vs 1N5232B-T |
| 1N5232B-G | Sensitron Semiconductors | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, GREEN PACKAGE-2 | 1N5232B vs 1N5232B-G |
| MV1N5232B-1TR | Microsemi Corporation | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5232B vs MV1N5232B-1TR |
| 1N5232BTR | Central Semiconductor Corp | Check for Price | Zener Diode, 5.6V V(Z), 0.5W, Silicon, Unidirectional, DO-35, | 1N5232B vs 1N5232BTR |
| MQ1N5232B-1E3 | Microsemi Corporation | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.48W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5232B vs MQ1N5232B-1E3 |
| 1N5232BT-85 | ROHM Semiconductor | Check for Price | Zener Diode, 0.5W, Silicon, Unidirectional, DO-35 | 1N5232B vs 1N5232BT-85 |
| 1N5232BTA | onsemi | Check for Price | 5.6V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | 1N5232B vs 1N5232BTA |
1N5232B Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 1N5232B is -65°C to +175°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the anode and cathode leads. Avoid overheating the device.
-
The maximum surge current rating for the 1N5232B is 100A for a duration of 1ms.
-
Yes, the 1N5232B can be used in switching power supply applications, but ensure that the device is properly derated for the specific application and that the maximum power rating is not exceeded.
-
To prevent electrostatic discharge (ESD) damage, handle the 1N5232B with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
