1N4948GP-TP by: Micro Commercial Components

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N4948GP-TP by Micro Commercial Components

Results Overview of 1N4948GP-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1N4948GP-TP Information

1N4948GP-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N4948GP-TP

Part # Distributor Description Stock Price Buy
DISTI # 1N4948GP-TP-ND
DigiKey DIODE STANDARD 1000V 1A DO41 Min Qty: 5000 Lead time: 16 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.0428
  • 10,000 $0.0385
  • 15,000 $0.0363
  • 25,000 $0.0338
  • 35,000 $0.0324
  • 50,000 $0.0309
  • 125,000 $0.0278
  • 250,000 $0.0259
$0.0259 / $0.0428 Buy Now
DISTI # 833-1N4948GP-TP
Mouser Electronics Rectifiers 1A FAST RECOVERY GPP Dice RoHS: Compliant 0
  • 1 $0.2700
  • 10 $0.1850
  • 100 $0.0910
  • 1,000 $0.0530
  • 5,000 $0.0370
  • 10,000 $0.0320
  • 25,000 $0.0290
  • 50,000 $0.0280
  • 100,000 $0.0250
$0.0250 / $0.2700 Order Now
Future Electronics 1KV, 1A, 500ns, 2-Pin DO-41. RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks Container: Reel 10000
Reel
  • 5,000 $0.0286
  • 10,000 $0.0282
  • 20,000 $0.0278
  • 25,000 $0.0276
  • 75,000 $0.0268
$0.0268 / $0.0286 Buy Now
Future Electronics 1KV, 1A, 500ns, 2-Pin DO-41. Min Qty: 5000 Package Multiple: 5000 10000
null
  • 5,000 $0.0286
  • 10,000 $0.0282
  • 20,000 $0.0278
  • 25,000 $0.0276
  • 75,000 $0.0268
$0.0268 / $0.0286 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 5000 10000
  • 5,000 $0.0477
  • 10,000 $0.0440
$0.0440 / $0.0477 Buy Now

Part Details for 1N4948GP-TP

1N4948GP-TP CAD Models

  • Part Symbol

    Part Symbol

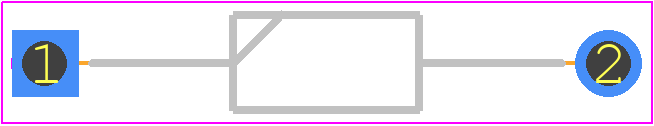

  • Footprint

    footprint

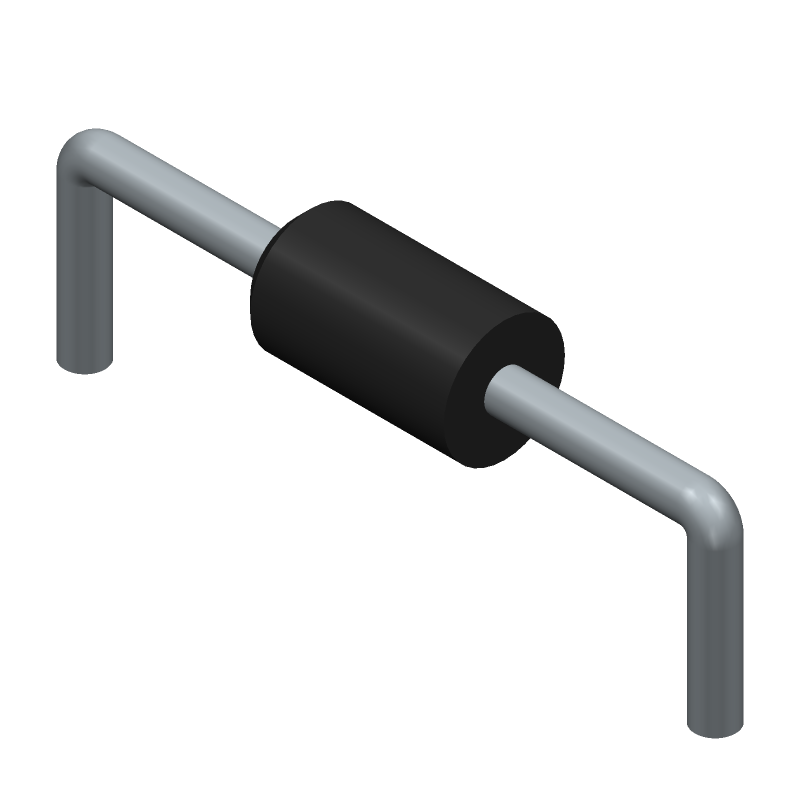

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N4948GP-TP Part Data Attributes

Parametric Data
1N4948GP-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N4948GP-TP Micro Commercial Components Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.3 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 25 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1000 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 0.5 µs
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for 1N4948GP-TP
