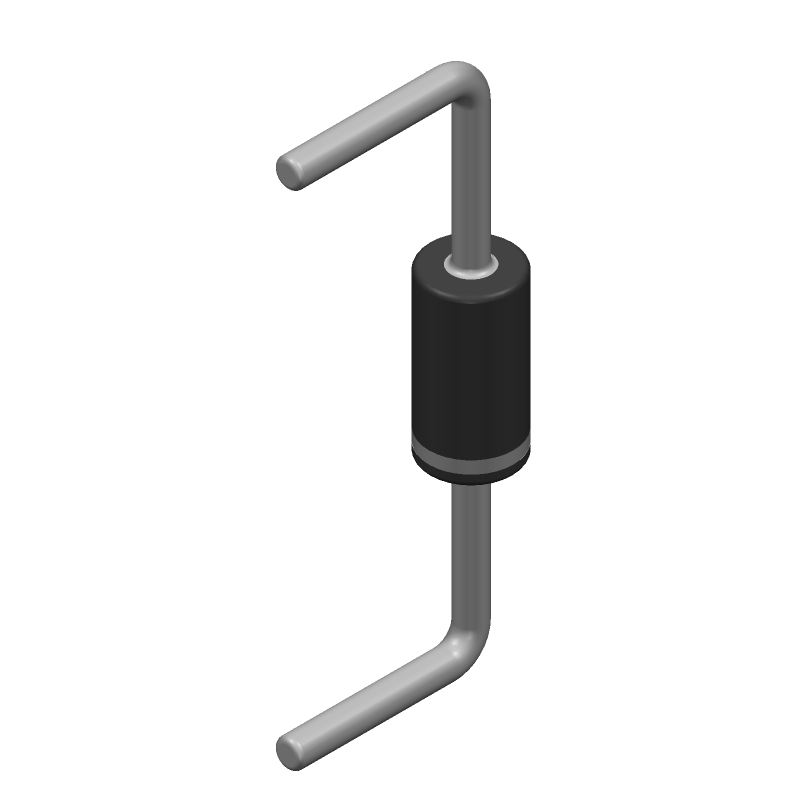

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4733A by onsemi
Results Overview of 1N4733A by onsemi
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
1N4733A Information
1N4733A by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4733A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38C7680
|
Newark | Zener Diode, 1W, 5.1V, Do-41, Zener Voltage Nom:5.1V, Power Dissipation:1W, Diode Case Style:Do-41 (Do-204Al), No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N47Xxa Series Rohs Compliant: Yes |Onsemi 1N4733A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 9339 |
|
$0.0330 / $0.0390 | Buy Now |
|
DISTI #
1N4733AFS-ND
|
DigiKey | DIODE ZENER 5.1V 1W DO41 Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
6427 In Stock |
|
$0.0280 / $0.1600 | Buy Now |
|
DISTI #
1N4733A
|
Avnet Americas | Diode Zener Single 5.1V 5% 1W 2-Pin DO-41 Bulk - Bulk (Alt: 1N4733A) RoHS: Compliant Min Qty: 24000 Package Multiple: 3000 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0234 / $0.0249 | Buy Now |
|
DISTI #
512-1N4733A
|
Mouser Electronics | Zener Diodes 5.1V 1W ZENER 5% RoHS: Compliant | 18658 |
|
$0.0280 / $0.1600 | Buy Now |
|
DISTI #
V36:1790_06297015
|
Arrow Electronics | Zener Diode Single 5.1V 5% 7Ohm 1000mW 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2346 | Americas - 38478 |
|
$0.0254 / $0.1576 | Buy Now |
|
DISTI #
P40:2555_13152040
|
Arrow Electronics | Zener Diode Single 5.1V 5% 7Ohm 1000mW 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2317 | Europe - 23156 |
|
$0.0180 / $0.0893 | Buy Now |
|
DISTI #
E02:0323_00840368
|
Arrow Electronics | Zener Diode Single 5.1V 5% 7Ohm 1000mW 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2417 | Europe - 4670 |
|
$0.0272 / $0.1599 | Buy Now |
|
|
Future Electronics | 1N4733 Series 1 W 5.1 V 10 uA Axial Through Hole Zener Diode - DO-41 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 34 Weeks Container: Box | 17531Box |
|
$0.0251 / $0.0286 | Buy Now |
|
|
Future Electronics | 1N4733 Series 1 W 5.1 V 10 uA Axial Through Hole Zener Diode - DO-41 RoHS: Compliant pbFree: Yes Min Qty: 27000 Package Multiple: 3000 Lead time: 34 Weeks Container: Box | 0Box |
|
$0.0247 / $0.0268 | Buy Now |
|
|
Onlinecomponents.com | Diode Zener Single 5.1V 5% 1W 2-Pin DO-41 RoHS: Compliant |
6000 In Stock |
|
$0.0253 / $0.0303 | Buy Now |
Part Details for 1N4733A
1N4733A CAD Models
1N4733A Part Data Attributes
|
|
1N4733A
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N4733A
onsemi
Zener 1W 5% 5.1 V, Axial Lead / DO-41, 3000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead / DO-41 | |
| Pin Count | 2 | |
| Manufacturer Package Code | 017AH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 24 Weeks, 5 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | METALLURGICALLY BONDED | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 7 Ω | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 5.1 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 49 mA |
Alternate Parts for 1N4733A
This table gives cross-reference parts and alternative options found for 1N4733A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4733A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4733A-T50A | onsemi | $0.0617 | Zener 1W 5% 5.1 V (Fan-Fold), Axial Lead / DO-41, 3000-FNFLD | 1N4733A vs 1N4733A-T50A |
| 1N4733A-AP | Micro Commercial Components | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HEREMATIC SEALED, GLASS, DO-41G, 2 PIN | 1N4733A vs 1N4733A-AP |
| 1N4733ATR | Central Semiconductor Corp | Check for Price | Zener Diode, 5.1V V(Z), 1W, Silicon, Unidirectional, DO-41, | 1N4733A vs 1N4733ATR |
| 1N4733G | Taiwan Semiconductor | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | 1N4733A vs 1N4733G |
| 1N4733A-G | Promax-Johnton Electronic Corporation | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS, DO-14G, 2 PIN | 1N4733A vs 1N4733A-G |
| 1N4733A | National Semiconductor Corporation | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41 | 1N4733A vs 1N4733A |
| 1N4733ARL | Motorola Semiconductor Products | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS, CASE 59-03, 2 PIN | 1N4733A vs 1N4733ARL |
| 1N4733AGE3 | Microsemi Corporation | Check for Price | Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-204AL, 2 PIN | 1N4733A vs 1N4733AGE3 |
1N4733A Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 1N4733A is -65°C to +175°C.
-
Yes, the 1N4733A is suitable for high-reliability applications due to its low leakage current and high stability.
-
To ensure proper biasing, the 1N4733A should be operated within its recommended voltage range (3.3V to 33V) and current range (5mA to 50mA).
-
The maximum power dissipation of the 1N4733A is 500mW.
-
Yes, the 1N4733A can be used in switching power supplies due to its fast switching times and low capacitance.
