Diodes / Zener Diodes / 1N4733A
Datasheets
1N4733A by:

Zener Diode, 5.1V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2

Part Details for 1N4733A by Vishay Intertechnologies

Results Overview of 1N4733A by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

1N4733A Information

1N4733A by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N4733A

Part # Distributor Description Stock Price Buy
DISTI # 64AH9340
Newark Diode, Zener, 1.3 W, 5.1V, Do-41, Zener Voltage Vz Typ:5.1V, Power Dissipation Pd:1.3W, Diode Case Style:Do-41 (Do-204Al), Zener Tolerance ±:5%, No. Of Pins:2Pins, Operating Temperature Max:200°C, Product Range:1N47Xxa Series, Rohs Compliant: Yes |Vishay 1N4733A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk 1937
  • 1 $0.3030
  • 10 $0.1590
  • 25 $0.1300
  • 50 $0.1020
  • 100 $0.0690
  • 500 $0.0520
  • 1,000 $0.0390
  • 2,500 $0.0310
$0.0310 / $0.3030 Buy Now
Bristol Electronics   1001
RFQ
Quest Components ZENER DIODE,SINGLE, TWO TERMINAL,5.1V V(Z),5%,DO-204AL 4000
  • 1 $0.1500
  • 84 $0.0675
  • 742 $0.0450
$0.0450 / $0.1500 Buy Now
Quest Components ZENER DIODE,SINGLE, TWO TERMINAL,5.1V V(Z),5%,DO-204AL 735
  • 1 $0.4000
  • 32 $0.1800
  • 279 $0.1200
$0.1200 / $0.4000 Buy Now

Part Details for 1N4733A

1N4733A CAD Models

  • Part Symbol

    Part Symbol

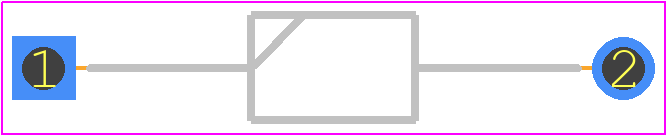

  • Footprint

    footprint

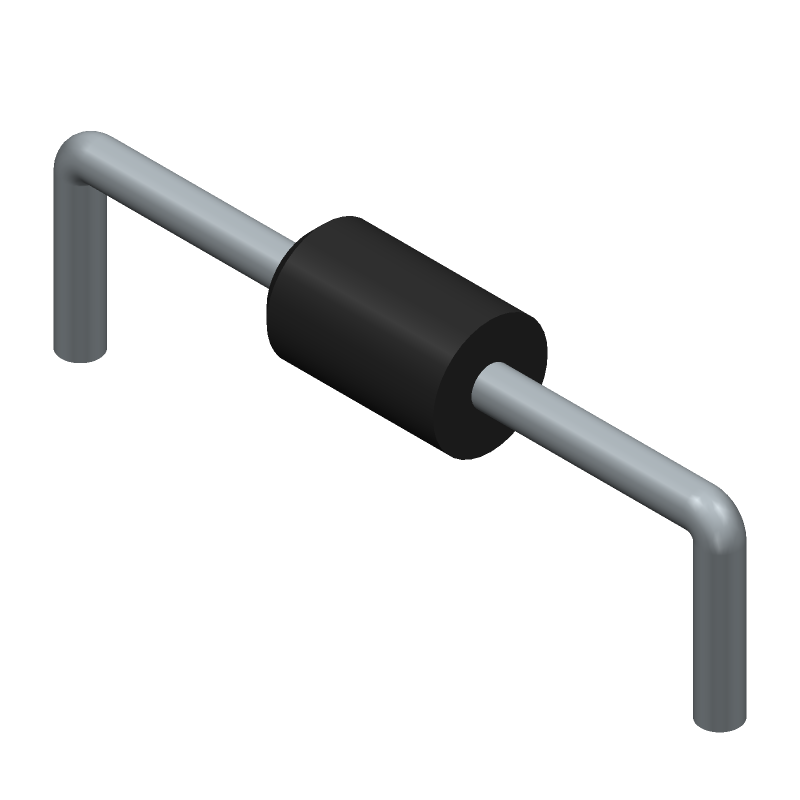

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N4733A Part Data Attributes

Parametric Data
1N4733A Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
1N4733A Vishay Intertechnologies Zener Diode, 5.1V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2
Reach Compliance Code compliant
Samacsys Manufacturer Vishay
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 7 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-XALF-W2
JESD-609 Code e2
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Package Body Material UNSPECIFIED
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1.3 W
Qualification Status Not Qualified
Reference Voltage-Nom 5.1 V
Surface Mount NO
Technology ZENER
Terminal Finish Tin/Silver (Sn96.5Ag3.5)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tol-Max 5%
Working Test Current 49 mA

Alternate Parts for 1N4733A

This table gives cross-reference parts and alternative options found for 1N4733A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4733A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N4733A-T50A onsemi $0.0617 Zener 1W 5% 5.1 V (Fan-Fold), Axial Lead / DO-41, 3000-FNFLD 1N4733A vs 1N4733A-T50A
1N4733A-AP Micro Commercial Components Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HEREMATIC SEALED, GLASS, DO-41G, 2 PIN 1N4733A vs 1N4733A-AP
1N4733ATR Central Semiconductor Corp Check for Price Zener Diode, 5.1V V(Z), 1W, Silicon, Unidirectional, DO-41, 1N4733A vs 1N4733ATR
1N4733G Taiwan Semiconductor Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N4733A vs 1N4733G
1N4733A-G Promax-Johnton Electronic Corporation Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS, DO-14G, 2 PIN 1N4733A vs 1N4733A-G
1N4733A National Semiconductor Corporation Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41 1N4733A vs 1N4733A
1N4733ARL Motorola Semiconductor Products Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS, CASE 59-03, 2 PIN 1N4733A vs 1N4733ARL
1N4733AGE3 Microsemi Corporation Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-204AL, 2 PIN 1N4733A vs 1N4733AGE3
Part Number Manufacturer Composite Price Description Compare
1N4733APE3/TR12 Microchip Technology Inc $0.9600 Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL 1N4733A vs 1N4733APE3/TR12
1N4733A(DO41) Microsemi Corporation Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, DO-41, 2 PIN 1N4733A vs 1N4733A(DO41)
1N4733ATA Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, HERMETIC SEALED, GLASS, DO-204AL, 2 PIN 1N4733A vs 1N4733ATA
1N4733A Motorola Semiconductor Products Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS, CASE 59-03, 2 PIN 1N4733A vs 1N4733A
1N4733A-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2 1N4733A vs 1N4733A-GT3
1N4733A Motorola Mobility LLC Check for Price 5.1V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, GLASS, CASE 59-03, 2 PIN 1N4733A vs 1N4733A
1N4733A-G HY Electronic Corp Check for Price Zener Diode, 1N4733A vs 1N4733A-G
1N4733APE3/TR Microsemi Corporation Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4733A vs 1N4733APE3/TR
1N4733A Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N4733A vs 1N4733A
1N4733A Nexperia Check for Price Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41 1N4733A vs 1N4733A

1N4733A Related Parts

1N4733A Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the 1N4733A is -65°C to +175°C.

  • To ensure the 1N4733A is used within its SOA, follow the maximum ratings and electrical characteristics specified in the datasheet, and consider factors such as power dissipation, voltage, and current.

  • The typical reverse recovery time of the 1N4733A is not specified in the datasheet, but it is typically in the range of 1-5 ns for zener diodes.

  • No, the 1N4733A is not designed for high-frequency switching applications. It is intended for use as a voltage regulator or voltage reference.

  • Handle the 1N4733A with ESD-protective equipment and follow proper ESD handling procedures to prevent damage to the device.
