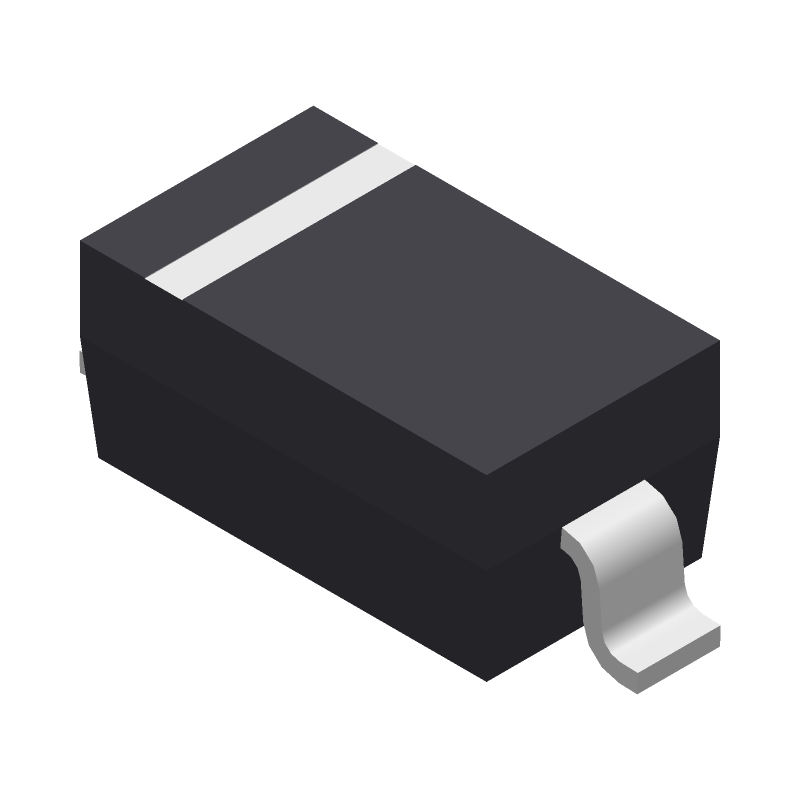

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4448W-HE3_A-08 by Vishay Intertechnologies
Results Overview of 1N4448W-HE3_A-08 by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1N4448W-HE3_A-08 Information
1N4448W-HE3_A-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4448W-HE3_A-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
112-1N4448W-HE3_A-08CT-ND
|
DigiKey | DIODE STANDARD 75V 300MA SOD123 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
14264 In Stock |
|
$0.0375 / $0.2700 | Buy Now |
|
DISTI #
1N4448W-HE3_A-08
|
Avnet Americas | SWITCHING DIODE GENPURP SOD123 - Tape and Reel (Alt: 1N4448W-HE3_A-08) RoHS: Not Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0374 / $0.0382 | Buy Now |
|
DISTI #
78-1N4448W-HE3_A-08
|
Mouser Electronics | Small Signal Switching Diodes SWITCHING DIODE GENPURP SOD123 RoHS: Compliant | 19433 |
|
$0.0370 / $0.2700 | Buy Now |
|
DISTI #
1N4448W-HE3_A-08
|
EBV Elektronik | SWITCHING DIODE GENPURP SOD123 (Alt: 1N4448W-HE3_A-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 1N4448W-HE3_A-08
1N4448W-HE3_A-08 CAD Models
1N4448W-HE3_A-08 Part Data Attributes
|
|
1N4448W-HE3_A-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
1N4448W-HE3_A-08
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 0.25A, 100V V(RRM), Silicon, SOD-123, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOD-123, 2 PIN | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | FAST RECOVERY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.25 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.28 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 50 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 20 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
1N4448W-HE3_A-08 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1N4448W-HE3_A-08 is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1N4448W-HE3_A-08 is a high-speed switching diode with a fast recovery time, making it suitable for high-frequency applications up to 1 GHz.
-
The maximum allowable power dissipation for the 1N4448W-HE3_A-08 is 500 mW.
-
Yes, the 1N4448W-HE3_A-08 diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The storage temperature range for the 1N4448W-HE3_A-08 is -65°C to 150°C.
