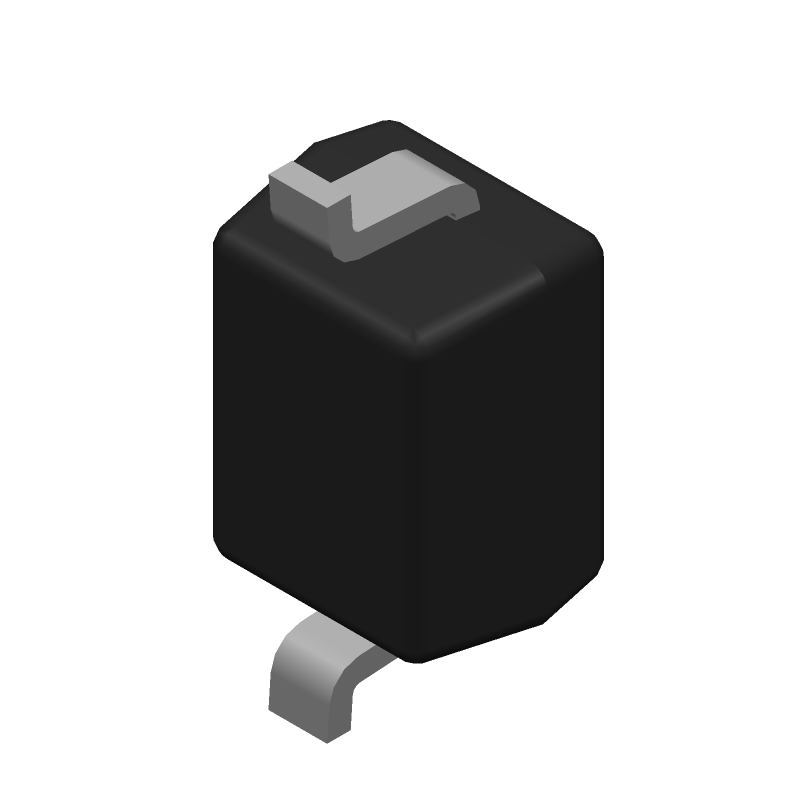

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4148WS-7-F by Diodes Incorporated
Results Overview of 1N4148WS-7-F by Diodes Incorporated
- Distributor Offerings: (40 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1N4148WS-7-F Information
1N4148WS-7-F by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 1N4148WS | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 100 V, 0.25 A, 2 in 1, SOD-323 |
Price & Stock for 1N4148WS-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12T2305
|
Newark | Small Signal Diode, 100V, Sod-323, Diode Configuration:Single, Repetitive Peak Reverse Voltage:75V, Average Forward Current:150Ma, Forward Voltage Max:1.25V, Reverse Recovery Time:4Ns, Forward Surge Current:2A, No. Of Pins:2Pins Rohs Compliant: Yes |Diodes Inc. 1N4148WS-7-F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1079339 |
|
$0.0190 | Buy Now |
|
DISTI #
84AC3369
|
Newark | Fast Switching Diode Sod323 T&r 3K Rohs Compliant: Yes |Diodes Inc. 1N4148WS-7-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 42000 |
|
$0.0110 | Buy Now |
|
DISTI #
01AM1366
|
Newark | Switching Diode, 1.25V, 0.15A, Sod-323 Rohs Compliant: Yes |Diodes Inc. 1N4148WS-7-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0330 / $0.0350 | Buy Now |
|
DISTI #
1N4148WS-FDICT-ND
|
DigiKey | DIODE STANDARD 75V 150MA SOD323 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
546467 In Stock |
|
$0.0155 / $0.1000 | Buy Now |
|
DISTI #
12T2305
|
Avnet Americas | Small Signal Switching Diode, Single, 75 V, 150 mA, 1.25 V, 4 ns, 2 A, SOD-323, 2 Pins - Product that comes on tape, but is not reeled (Alt: 12T2305) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 5 Days Container: Ammo Pack | 96633 Partner Stock |
|
$0.0460 / $0.1090 | Buy Now |
|
DISTI #
1N4148WS-7-F
|
Avnet Americas | Small Signal Switching Diode, Single, 75 V, 150 mA, 1.25 V, 4 ns, 2 A, SOD-323, 2 Pins - Tape and Reel (Alt: 1N4148WS-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0098 / $0.0103 | Buy Now |
|
DISTI #
1N4148WS-7-F
|
Avnet Americas | Small Signal Switching Diode, Single, 75 V, 150 mA, 1.25 V, 4 ns, 2 A, SOD-323, 2 Pins - Tape and Reel (Alt: 1N4148WS-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0102 / $0.0109 | Buy Now |
|
DISTI #
1N4148WS-7-F
|
Avnet Americas | Small Signal Switching Diode, Single, 75 V, 150 mA, 1.25 V, 4 ns, 2 A, SOD-323, 2 Pins - Tape and Reel (Alt: 1N4148WS-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0102 / $0.0109 | Buy Now |
|
DISTI #
621-1N4148WS-F
|
Mouser Electronics | Small Signal Switching Diodes 100V Io/150mA T/R RoHS: Compliant | 324304 |
|
$0.0150 / $0.1000 | Buy Now |
|
DISTI #
A03:0893_13588106
|
Arrow Electronics | Diode Small Signal Switching 75V 0.3A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks | Asia - 4143000 |
|
$0.0086 / $0.0179 | Buy Now |
Part Details for 1N4148WS-7-F
1N4148WS-7-F CAD Models
1N4148WS-7-F Part Data Attributes
|
|
1N4148WS-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
1N4148WS-7-F
Diodes Incorporated
Rectifier Diode, 1 Element, 0.15A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 16 Weeks, 5 Days | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 75 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.715 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.15 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 75 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 75 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for 1N4148WS-7-F
This table gives cross-reference parts and alternative options found for 1N4148WS-7-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4148WS-7-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4148WS-G3-18 | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, GREEN PACKAGE-2 | 1N4148WS-7-F vs 1N4148WS-G3-18 |
1N4148WS-7-F Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 1N4148WS-7-F is -65°C to 150°C.
-
Yes, the 1N4148WS-7-F is suitable for high-frequency applications due to its low capacitance and fast switching time.
-
The typical forward voltage drop of the 1N4148WS-7-F is around 0.7V to 1.1V, depending on the operating conditions.
-
No, the 1N4148WS-7-F is a low-power diode, with a maximum average forward current of 200mA. It is not suitable for high-power applications.
-
The storage temperature range for the 1N4148WS-7-F is -65°C to 150°C.
