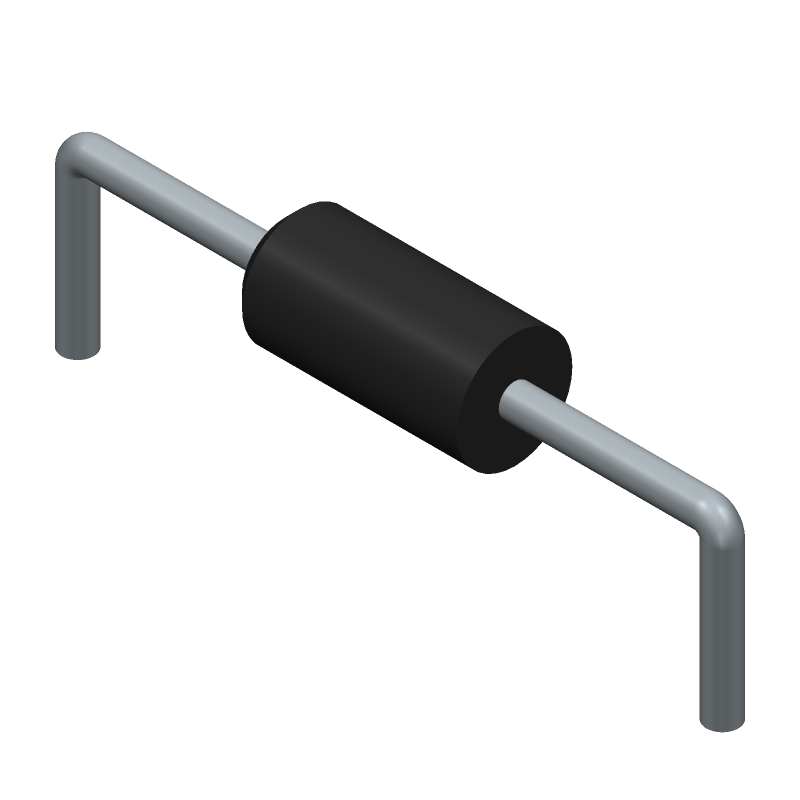

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4148TA by onsemi
Results Overview of 1N4148TA by onsemi
- Distributor Offerings: (28 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1N4148TA Information
1N4148TA by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4148TA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83C2425
|
Newark | Diode, Ultrafast Recovery, 300Ma, 100V, Do-204Ah, Diode Configuration:Single, Repetitive Peak Reverse Voltage:100V, Average Forward Current:200Ma, Forward Voltage Max:1V, Reverse Recovery Time:4Ns, Forward Surge Current:4A Rohs Compliant: Yes |Onsemi 1N4148TA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 28072 |
|
$0.0090 | Buy Now |
|
DISTI #
1N4148TACT-ND
|
DigiKey | DIODE STANDARD 100V 200MA DO35 Min Qty: 1 Lead time: 22 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
97713 In Stock |
|
$0.0064 / $0.1000 | Buy Now |
|
DISTI #
83C2425
|
Avnet Americas | Small Signal Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 4 A - Bulk (Alt: 83C2425) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 4 Days Container: Bulk | 28072 Partner Stock |
|
$0.0180 / $0.1050 | Buy Now |
|
DISTI #
1N4148TA
|
Avnet Americas | Small Signal Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 4 A - Ammo Pack (Alt: 1N4148TA) RoHS: Compliant Min Qty: 12000 Package Multiple: 20000 Lead time: 22 Weeks, 0 Days Container: Ammo Pack | 1359245 Factory Stock |
|
$0.0057 / $0.0063 | Buy Now |
|
DISTI #
1N4148TA
|
Avnet Americas | Small Signal Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 4 A - Ammo Pack (Alt: 1N4148TA) RoHS: Compliant Min Qty: 31250 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Ammo Pack | 0 |
|
$0.0178 / $0.0205 | Buy Now |
|
DISTI #
512-1N4148TA
|
Mouser Electronics | Small Signal Switching Diodes Hi Conductance Fast RoHS: Compliant | 137259 |
|
$0.0060 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_06296877
|
Arrow Electronics | Diode Small Signal Switching 100V 0.3A 2-Pin DO-35 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2335 Container: Cut Strips | Americas - 98421 |
|
$0.0070 / $0.0920 | Buy Now |
|
DISTI #
E02:0323_00842758
|
Arrow Electronics | Diode Small Signal Switching 100V 0.3A 2-Pin DO-35 Ammo Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks Date Code: 2335 | Europe - 65000 |
|
$0.0061 | Buy Now |
|
|
Future Electronics | 1N4148 Series 500 mW 100 V Max Reverse Voltage 200 mA Small Signal Diode -DO-35 RoHS: Not Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 6 Weeks Container: Ammo Pack | 235000Ammo Pack |
|
$0.0057 / $0.0064 | Buy Now |
|
|
Future Electronics | 1N4148 Series 500 mW 100 V Max Reverse Voltage 200 mA Small Signal Diode -DO-35 RoHS: Not Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks Container: Ammo Pack | 205000Ammo Pack |
|
$0.0057 / $0.0064 | Buy Now |
Part Details for 1N4148TA
1N4148TA CAD Models
1N4148TA Part Data Attributes
|
|
1N4148TA
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N4148TA
onsemi
High Conductance Fast Diode, Axial Lead, 5000-FNFLD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-XALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
Alternate Parts for 1N4148TA
This table gives cross-reference parts and alternative options found for 1N4148TA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4148TA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4148-T50R | onsemi | Check for Price | High Conductance Fast Diode, DO-204AH (DO-35), 10000-REEL | 1N4148TA vs 1N4148-T50R |
1N4148TA Frequently Asked Questions (FAQ)
-
The recommended storage temperature for 1N4148TA is -55°C to 150°C.
-
Yes, the 1N4148TA is suitable for high-frequency applications due to its low capacitance and fast switching time.
-
No, the 1N4148TA is a standard rectifier diode and not a Zener diode. It is not designed to operate in the reverse-biased region.
-
The maximum allowable voltage for the 1N4148TA is 100V, but it's recommended to operate it at a maximum voltage of 75V to ensure reliability.
-
Yes, the 1N4148TA is suitable for automotive applications due to its high reliability and ability to operate in harsh environments.
