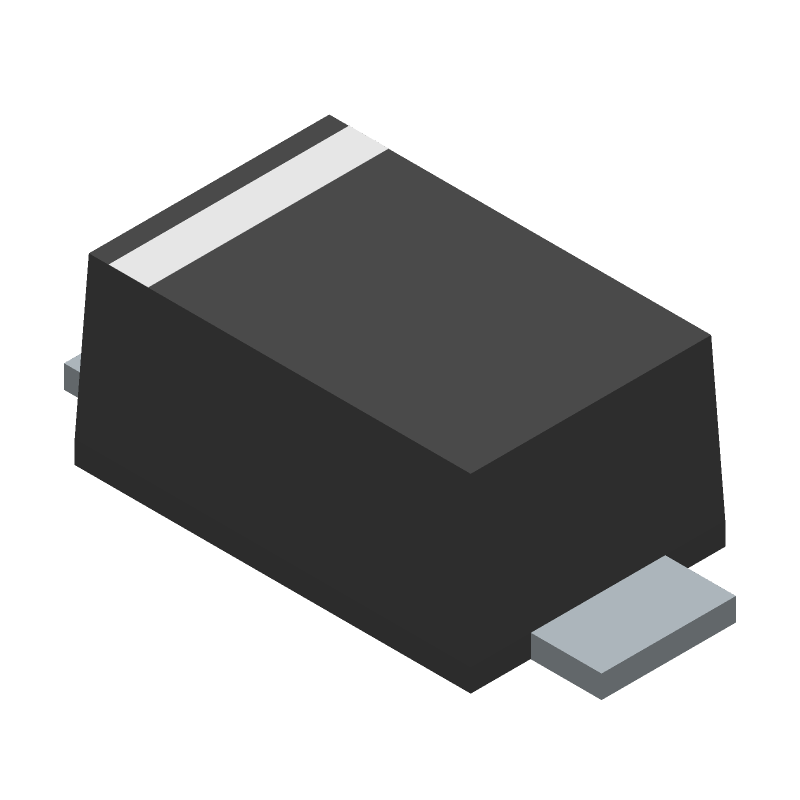

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4007W-T by Rectron Semiconductor
Results Overview of 1N4007W-T by Rectron Semiconductor
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
1N4007W-T Information
1N4007W-T by Rectron Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4007W-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
583-1N4007W-T
|
Mouser Electronics | Rectifiers SOD-123,1A,1000V,GP RoHS: Compliant | 20412 |
|
$0.0230 / $0.1400 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.0204 / $0.0232 | Buy Now |
|
|
Vyrian | Diodes | 295 |
|
RFQ |
Part Details for 1N4007W-T
1N4007W-T CAD Models
1N4007W-T Part Data Attributes
|
|
1N4007W-T
Rectron Semiconductor
Buy Now
Datasheet
|
Compare Parts:
1N4007W-T
Rectron Semiconductor
Rectifier Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECTRON LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Date Of Intro | 2020-01-02 | |
| Samacsys Manufacturer | Rectron | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 1000 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | MIL-STD-750 | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 1000 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
1N4007W-T Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 1N4007W-T is -65°C to 150°C.
-
No, the 1N4007W-T is a standard recovery diode and not suitable for high-frequency applications. It's recommended for general-purpose rectification and switching applications.
-
The maximum surge current rating for the 1N4007W-T is 400A for a single cycle, 60Hz, half-sine wave.
-
Yes, the 1N4007W-T diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The typical reverse recovery time for the 1N4007W-T is 2μs.
