Diodes / Rectifier Diodes / 1N4007GP-TP
Datasheets
1N4007GP-TP by: Micro Commercial Components

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1N4007GP-TP by Micro Commercial Components

Results Overview of 1N4007GP-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

1N4007GP-TP Information

1N4007GP-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N4007GP-TP

Part # Distributor Description Stock Price Buy
DISTI # 22AM0643
Newark Rectifier, 1Kv, 1A, Do-41 Rohs Compliant: Yes |Micro Commercial Components 1N4007GP-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 49980
  • 1 $0.1600
  • 10 $0.1090
  • 25 $0.0950
  • 50 $0.0800
  • 100 $0.0660
  • 250 $0.0590
  • 500 $0.0520
  • 1,000 $0.0470
$0.0470 / $0.1600 Buy Now
DISTI # 1N4007GP-TPMSCT-ND
DigiKey DIODE STANDARD 1000V 1A DO41 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 10629
In Stock
  • 1 $0.1600
  • 10 $0.1090
  • 100 $0.0661
  • 500 $0.0525
  • 1,000 $0.0471
  • 2,000 $0.0465
  • 5,000 $0.0374
  • 10,000 $0.0290
  • 15,000 $0.0274
  • 25,000 $0.0267
  • 35,000 $0.0261
  • 50,000 $0.0259
  • 125,000 $0.0254
$0.0254 / $0.1600 Buy Now
DISTI # 833-1N4007GP-TP
Mouser Electronics Rectifiers 1A 1000Vr 700Vrms 1000V 1.0Vf 15pF RoHS: Compliant 20512
  • 1 $0.1600
  • 10 $0.1090
  • 100 $0.0530
  • 1,000 $0.0430
  • 5,000 $0.0370
  • 10,000 $0.0290
  • 25,000 $0.0260
  • 50,000 $0.0250
$0.0250 / $0.1600 Buy Now
DISTI # E54:1762_08670290
Arrow Electronics Diode Switching 1KV 1A 2-Pin DO-41 T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks Date Code: 2508 Europe - 5000
  • 5,000 $0.0357
  • 10,000 $0.0277
  • 15,000 $0.0273
  • 25,000 $0.0251
  • 35,000 $0.0242
  • 50,000 $0.0234
$0.0234 / $0.0357 Buy Now
Future Electronics 1 Amp Glass, Passivated Rectifier, 1000 Volts RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel 70000
Reel
  • 5,000 $0.0254
  • 10,000 $0.0250
  • 20,000 $0.0246
  • 25,000 $0.0245
  • 75,000 $0.0238
$0.0238 / $0.0254 Buy Now
DISTI # 69774305
Verical Diode Switching 1KV 1A 2-Pin DO-41 T/R Min Qty: 20000 Package Multiple: 5000 Americas - 2930000
  • 20,000 $0.0170
$0.0170 Buy Now
DISTI # 88073829
Verical Diode Switching 1KV 1A 2-Pin DO-41 T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 2429 Americas - 40000
  • 5,000 $0.0438
  • 20,000 $0.0400
  • 30,000 $0.0372
  • 40,000 $0.0351
$0.0351 / $0.0438 Buy Now
DISTI # 31616995
Verical Diode Switching 1KV 1A 2-Pin DO-41 T/R Min Qty: 5000 Package Multiple: 5000 Americas - 5000
  • 5,000 $0.0357
  • 10,000 $0.0277
  • 15,000 $0.0273
  • 25,000 $0.0251
  • 35,000 $0.0242
  • 50,000 $0.0234
$0.0234 / $0.0357 Buy Now
Future Electronics 1 Amp Glass, Passivated Rectifier, 1000 Volts Min Qty: 5000 Package Multiple: 5000 70000
null
  • 5,000 $0.0274
  • 10,000 $0.0270
  • 20,000 $0.0265
  • 25,000 $0.0264
  • 75,000 $0.0256
$0.0256 / $0.0274 Buy Now
DISTI # 1N4007GP-TP
IBS Electronics 1N4007GP-TP by MCC is a silicon rectifier diode with 1A average rectified current, 1000V reverse voltage, DO-41 package, through-hole mount, 30A surge current, and 1.1V forward voltage. Min Qty: 5000 Package Multiple: 1 5000
  • 5,000 $0.0307
  • 10,000 $0.0302
  • 20,000 $0.0298
  • 25,000 $0.0296
  • 75,000 $0.0286
$0.0286 / $0.0307 Buy Now
LCSC 1A 1kV 1.1V1A DO-41 Diodes - General Purpose ROHS 3400
  • 20 $0.0294
  • 200 $0.0234
  • 600 $0.0201
  • 5,000 $0.0182
  • 10,000 $0.0164
  • 20,000 $0.0155
$0.0155 / $0.0294 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 5000 55000
  • 5,000 $0.0457
  • 55,000 $0.0422
$0.0422 / $0.0457 Buy Now
Vyrian Diodes 33030
RFQ

Part Details for 1N4007GP-TP

1N4007GP-TP CAD Models

  • Part Symbol

    Part Symbol

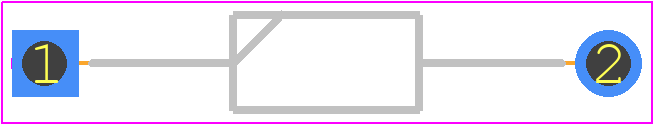

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N4007GP-TP Part Data Attributes

Parametric Data
1N4007GP-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N4007GP-TP Micro Commercial Components Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Additional Feature METALLURGICALLY BONDED
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1000 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 2 µs
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for 1N4007GP-TP

This table gives cross-reference parts and alternative options found for 1N4007GP-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4007GP-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N4007GP-A Micro Commercial Components Check for Price Rectifier Diode, 1N4007GP-TP vs 1N4007GP-A
1N4007GP-BP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N4007GP-TP vs 1N4007GP-BP
1N4007GP-BP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GP-BP-HF
1N4007GP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 1N4007GP-TP vs 1N4007GP
1N4007GP-E3/73 Vishay Intertechnologies Check for Price Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, 1N4007GP-TP vs 1N4007GP-E3/73
1N4007GPE/74 Vishay Semiconductors Check for Price Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4007GP-TP vs 1N4007GPE/74
1N4007GP Taiwan Semiconductor Check for Price Rectifier Diode, 1N4007GP-TP vs 1N4007GP
Part Number Manufacturer Composite Price Description Compare
1N4007GP Diotec Semiconductor AG $0.0311 Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AC, DO-41, 2 PIN 1N4007GP-TP vs 1N4007GP
1N4007GPT50A Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, D4, 2 PIN 1N4007GP-TP vs 1N4007GPT50A
1N4007GPT26A Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GPT26A
1N4007GPT50R Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, D4, 2 PIN 1N4007GP-TP vs 1N4007GPT50R
1N4007GP Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, D4, 2 PIN 1N4007GP-TP vs 1N4007GP
1N4007GPPTR Central Semiconductor Corp Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GPPTR
1N4007GP/4G Vishay Semiconductors Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4007GP-TP vs 1N4007GP/4G
1N4007GP-AP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GP-AP-HF
1N4007GP.TR Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GP.TR
1N4007GP Fagor Electrónica Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, 1N4007GP-TP vs 1N4007GP

1N4007GP-TP Related Parts

1N4007GP-TP Frequently Asked Questions (FAQ)

  • The maximum surge current rating of the 1N4007GP-TP is 30A for a single cycle, and 10A²s for repetitive surges.

  • No, the 1N4007GP-TP is a standard recovery diode and not suitable for high-frequency switching applications. It's recommended for general-purpose rectification and low-frequency switching applications.

  • The thermal resistance of the 1N4007GP-TP is typically around 10°C/W, but this can vary depending on the specific application and mounting conditions.

  • No, the 1N4007GP-TP is not AEC-Q101 qualified and is not suitable for use in automotive applications. A different diode with automotive qualification should be used instead.

  • The recommended soldering temperature for the 1N4007GP-TP is 260°C for 10 seconds, with a peak temperature of 280°C.
