Diodes / Rectifier Diodes / 1N4007FFG
Datasheets
1N4007FFG by: onsemi

Standard Rectifier, 1000 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 3000-BLKBX

Part Details for 1N4007FFG by onsemi

Results Overview of 1N4007FFG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

1N4007FFG Information

1N4007FFG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N4007FFG

Part # Distributor Description Stock Price Buy
DISTI # 42K2830
Newark Standard Diode, 1A, 1Kv, 59-10, Repetitive Peak Reverse Voltage:1Kv, Average Forward Current:1A, Diode Configuration:Single, Forward Voltage Max:1.3V, Reverse Recovery Time:-, Forward Surge Current:30A, Diode Case Style:Axial Leaded Rohs Compliant: Yes |Onsemi 1N4007FFG RoHS: Compliant Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.0300
  • 10,000 $0.0280
  • 25,000 $0.0240
$0.0240 / $0.0300 Buy Now
DISTI # 1N4007FFGOSCT-ND
DigiKey DIODE STANDARD 1000V 1A AXIAL Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Box (TB) 26502
In Stock
  • 1 $0.1500
  • 10 $0.1000
  • 100 $0.0737
  • 500 $0.0525
  • 1,000 $0.0481
  • 3,000 $0.0242
  • 6,000 $0.0230
  • 9,000 $0.0228
  • 15,000 $0.0227
  • 21,000 $0.0221
  • 30,000 $0.0219
  • 75,000 $0.0218
  • 150,000 $0.0216
$0.0216 / $0.1500 Buy Now
DISTI # 1N4007FFG
Avnet Americas Standard Recovery Diode, 1 kV, 1 A, Single, 1.3 V, 30 A - Bulk (Alt: 1N4007FFG) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 30,000 $0.0237
  • 36,000 $0.0232
  • 66,000 $0.0227
  • 150,000 $0.0221
  • 300,000 $0.0217
$0.0217 / $0.0237 Buy Now
DISTI # 863-1N4007FFG
Mouser Electronics Rectifiers 1000V 1A Standard RoHS: Compliant 21580
  • 1 $0.1500
  • 10 $0.1000
  • 100 $0.0600
  • 500 $0.0480
  • 1,000 $0.0440
  • 3,000 $0.0240
  • 6,000 $0.0230
  • 9,000 $0.0220
  • 24,000 $0.0210
$0.0210 / $0.1500 Buy Now
DISTI # V79:2366_26240588
Arrow Electronics Diode Switching 1KV 1A 2-Pin DO-41 Box Min Qty: 1 Package Multiple: 1 Date Code: 2232 Americas - 11711
  • 1 $0.1448
  • 10 $0.0955
  • 100 $0.0600
  • 500 $0.0464
  • 1,000 $0.0424
  • 3,000 $0.0220
  • 6,000 $0.0209
  • 9,000 $0.0201
$0.0201 / $0.1448 Buy Now
DISTI # V99:2348_07305053
Arrow Electronics Diode Switching 1KV 1A 2-Pin DO-41 Box Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2228 Americas - 3848
  • 1 $0.1448
  • 10 $0.0955
  • 100 $0.0600
  • 500 $0.0464
  • 1,000 $0.0424
  • 3,000 $0.0220
  • 6,000 $0.0214
$0.0214 / $0.1448 Buy Now
Onlinecomponents.com Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 RoHS: Compliant 21000 In Stock
  • 3,000 $0.0228
  • 9,000 $0.0213
  • 27,000 $0.0205
  • 51,000 $0.0204
  • 102,000 $0.0203
  • 150,000 $0.0202
  • 252,000 $0.0201
  • 501,000 $0.0200
$0.0200 / $0.0228 Buy Now
DISTI # 84415583
Verical Diode Switching 1KV 1A 2-Pin DO-41 Box Min Qty: 3000 Package Multiple: 3000 Date Code: 2316 Americas - 21000
  • 3,000 $0.0296
  • 9,000 $0.0277
  • 27,000 $0.0267
  • 51,000 $0.0265
  • 102,000 $0.0264
$0.0264 / $0.0296 Buy Now
DISTI # 84024255
Verical Diode Switching 1KV 1A 2-Pin DO-41 Box Min Qty: 293 Package Multiple: 1 Date Code: 2232 Americas - 11711
  • 293 $0.0600
  • 500 $0.0464
  • 1,000 $0.0424
  • 3,000 $0.0220
  • 6,000 $0.0209
  • 9,000 $0.0201
$0.0201 / $0.0600 Buy Now
DISTI # 63331412
Verical Diode Switching 1KV 1A 2-Pin DO-41 Box Min Qty: 261 Package Multiple: 1 Date Code: 2228 Americas - 3848
  • 261 $0.0220
  • 6,000 $0.0214
$0.0214 / $0.0220 Buy Now
Rochester Electronics Standard Rectifier, 1000 V, 1.0 A RoHS: Not Compliant Status: Active Min Qty: 1 10503
  • 100 $0.0305
  • 500 $0.0275
  • 1,000 $0.0253
  • 10,000 $0.0226
  • 100,000 $0.0189
$0.0189 / $0.0305 Buy Now
DISTI # 1N4007FFG
TME Diode: rectifying, THT, 1kV, 1A, reel,tape, Ifsm: 30A, CASE59 Min Qty: 1 1890
  • 1 $0.2360
  • 5 $0.1816
  • 25 $0.1303
  • 100 $0.0944
  • 500 $0.0661
  • 3,000 $0.0496
  • 12,000 $0.0378
  • 30,000 $0.0343
  • 99,000 $0.0307
$0.0307 / $0.2360 Buy Now
DISTI # 1N4007FFG
IBS Electronics RECTIFIER DIODE 1 PHASE 1 ELEMENT 1A 1000V V(RRM) SILICON DO-41 Min Qty: 3000 Package Multiple: 1 21000
  • 3,000 $0.0312
  • 9,000 $0.0299
  • 27,000 $0.0295
  • 51,000 $0.0279
  • 102,000 $0.0276
  • 150,000 $0.0269
  • 252,000 $0.0265
  • 501,000 $0.0261
$0.0261 / $0.0312 Buy Now
DISTI # 1N4007FFG
Richardson RFPD RECTIFIER MODULE - FAST RECOVERY/FRED RoHS: Compliant Min Qty: 30000 0
  • 30,000 $0.0200
$0.0200 Buy Now
DISTI # 1N4007FFG
Avnet Silica Standard Recovery Diode 1 kV 1 A Single 13 V 30 A (Alt: 1N4007FFG) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited DIODE GEN PURP 1KV 1A AXIAL 25000
RFQ
DISTI # 1N4007FFG
EBV Elektronik Standard Recovery Diode 1 kV 1 A Single 13 V 30 A (Alt: 1N4007FFG) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 RoHS: Compliant 21000 In Stock
  • 3,000 $0.0228
  • 9,000 $0.0213
  • 27,000 $0.0205
  • 51,000 $0.0204
  • 102,000 $0.0203
  • 150,000 $0.0202
  • 252,000 $0.0201
  • 501,000 $0.0200
$0.0200 / $0.0228 Buy Now
Vyrian Diodes 87318
RFQ

Part Details for 1N4007FFG

1N4007FFG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

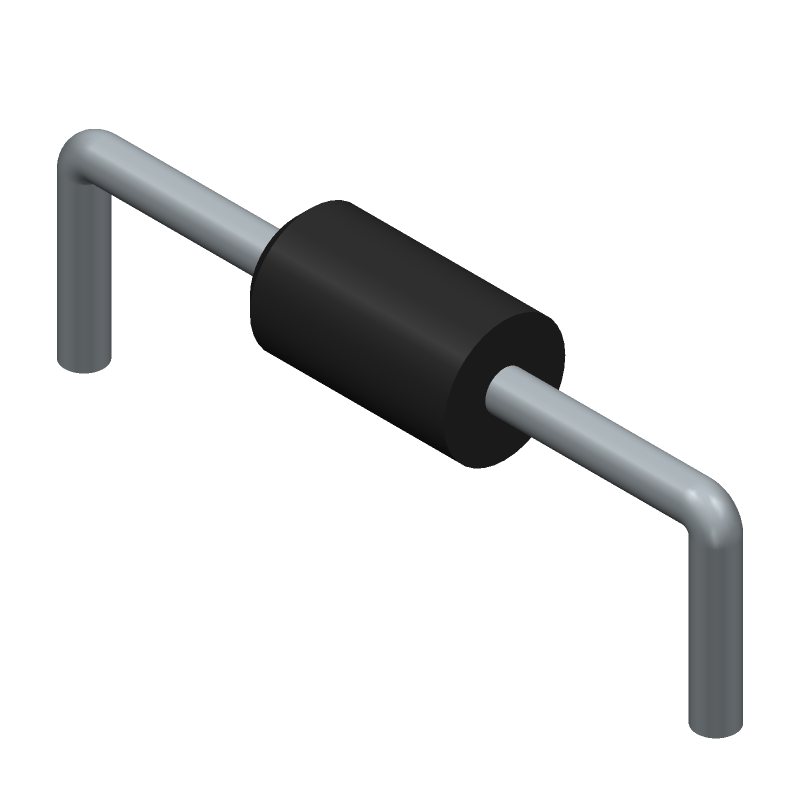

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N4007FFG Part Data Attributes

Parametric Data
1N4007FFG onsemi
Buy Now Datasheet
Compare Parts:
1N4007FFG onsemi Standard Rectifier, 1000 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 3000-BLKBX
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia
Pin Count 2
Manufacturer Package Code 59-10
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 18 Weeks
Samacsys Manufacturer onsemi
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1000 V
Reverse Current-Max 10 µA
Reverse Test Voltage 1000 V
Surface Mount NO
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form WIRE
Terminal Position AXIAL

Alternate Parts for 1N4007FFG

This table gives cross-reference parts and alternative options found for 1N4007FFG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4007FFG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UF4007GPL-BP Micro Commercial Components Check for Price Rectifier Diode, 1N4007FFG vs UF4007GPL-BP
1N4007 Solitron Devices Inc Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, MINIATURE PACKAGE-2 1N4007FFG vs 1N4007
1N4007RL onsemi Check for Price Standard Rectifier, 1000 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 5000-REEL 1N4007FFG vs 1N4007RL
1N4007G American Power Devices Inc Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM) 1N4007FFG vs 1N4007G
UF4007 Changzhou Starsea Electronics Co Ltd Check for Price Rectifier Diode 1N4007FFG vs UF4007
UF4007 Jinan Gude Electronic Device Co Ltd Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM) 1N4007FFG vs UF4007
UF4007T&A Continental Device India Ltd Check for Price Rectifier Diode, 1N4007FFG vs UF4007T&A
UF4007 SEMIKRON Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4007FFG vs UF4007
MUR1100 Microsemi Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM) 1N4007FFG vs MUR1100
1N4007 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, GREEN, PLASTIC PACKAGE-2 1N4007FFG vs 1N4007
Part Number Manufacturer Composite Price Description Compare
1N4007G Taiwan Semiconductor $0.1342 Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, GREEN, PLASTIC PACKAGE-2 1N4007FFG vs 1N4007G
1N4007 Tak Cheong Electronics (Holdings) Co Ltd Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N4007FFG vs 1N4007
1N4007GH05 Rectron Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 1N4007FFG vs 1N4007GH05
1N4007-TR Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 1N4007FFG vs 1N4007-TR
UF4007 Vishay Semiconductors Check for Price Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4007FFG vs UF4007
SF4007 Diodes Incorporated Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, HERMETIC SEALED, GLASS PACKAGE-2 1N4007FFG vs SF4007
1N4007 HY Electronic Corp Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 1N4007FFG vs 1N4007
UF4007 Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, DO-41, 2 PIN 1N4007FFG vs UF4007
UF4007PBFREE Central Semiconductor Corp Check for Price Rectifier Diode, 1N4007FFG vs UF4007PBFREE
1N4007G+ SPC Multicomp Check for Price Rectifier Diode, 1N4007FFG vs 1N4007G+

1N4007FFG Related Parts

1N4007FFG Frequently Asked Questions (FAQ)

  • The 1N4007FFG has a maximum surge current rating of 30A for a single cycle, and 15A for repetitive surges.

  • The 1N4007FFG is designed for high-frequency switching applications, with a switching speed of 50 ns and a reverse recovery time of 3 μs.

  • Yes, the 1N4007FFG has a maximum operating junction temperature of 150°C, making it suitable for use in high-temperature environments.

  • The typical forward voltage drop of the 1N4007FFG diode is 0.83V at 1A, and 0.95V at 3A.

  • Yes, the 1N4007FFG diode is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
